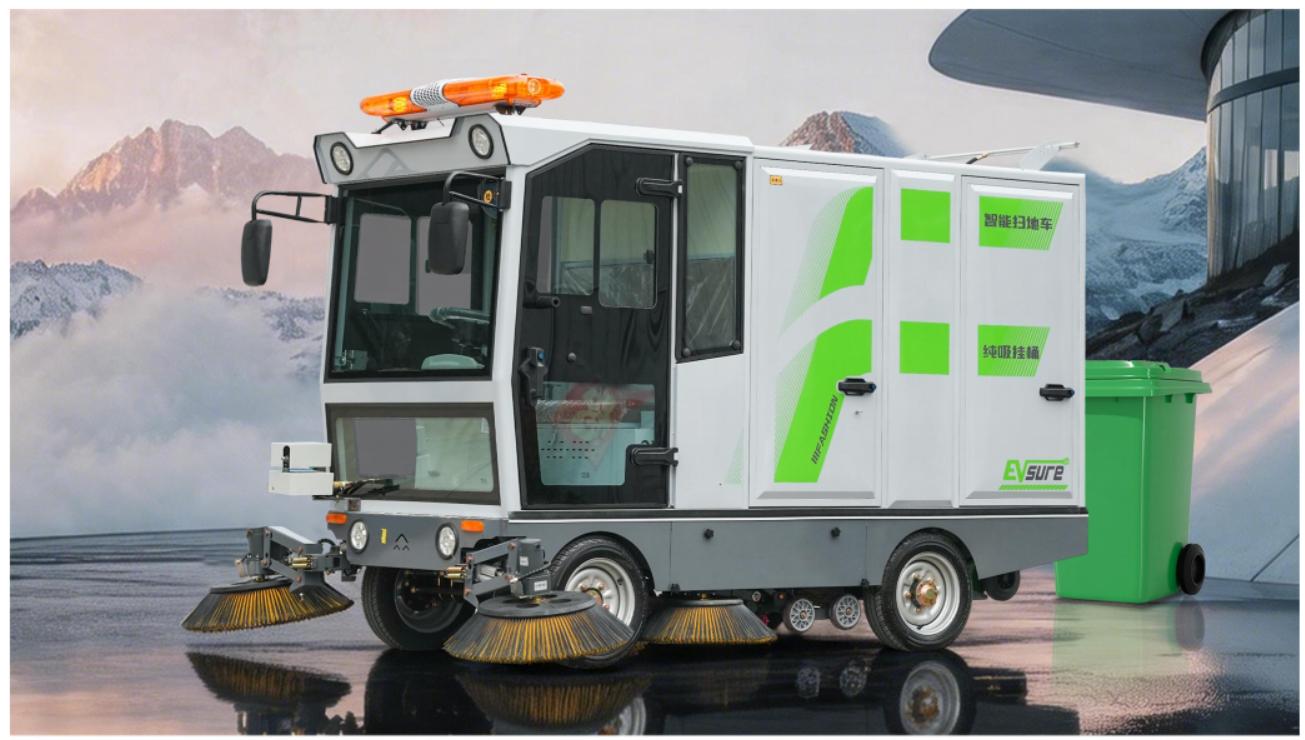

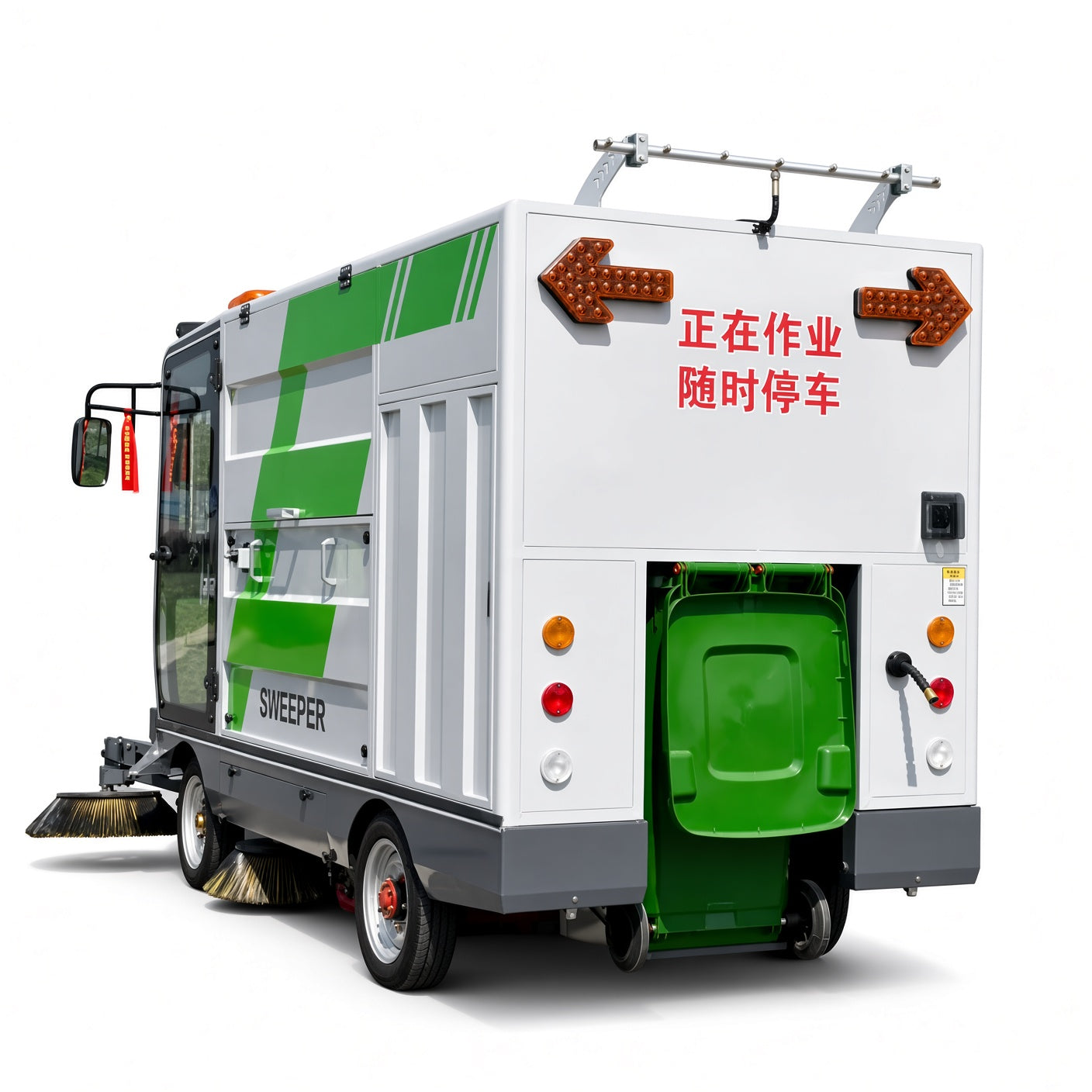

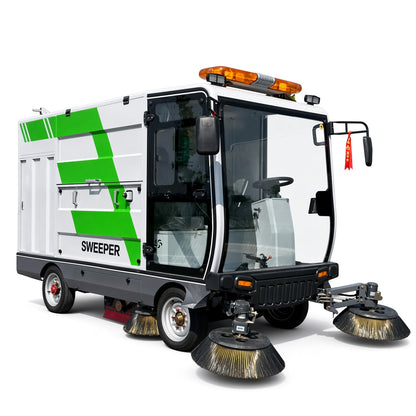

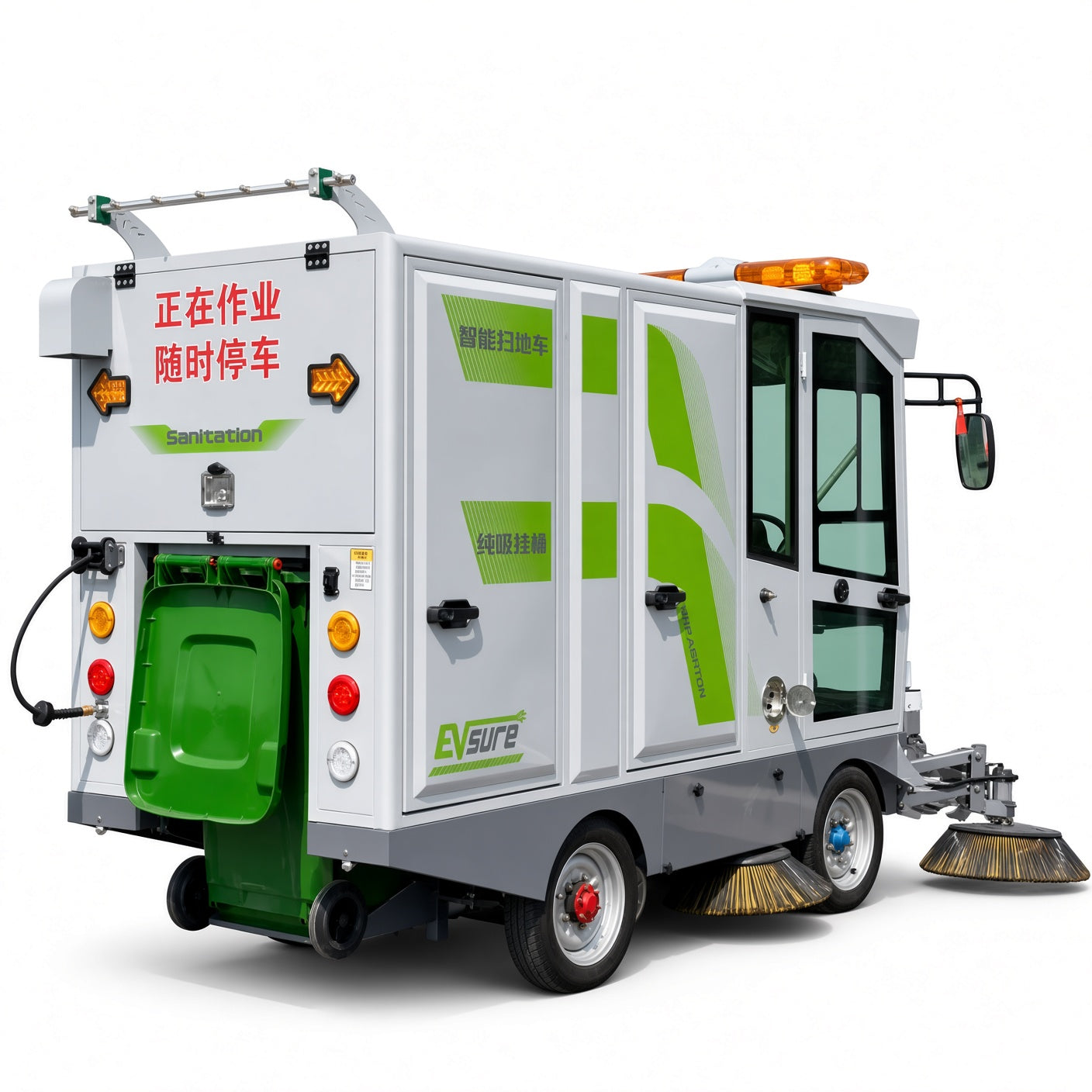

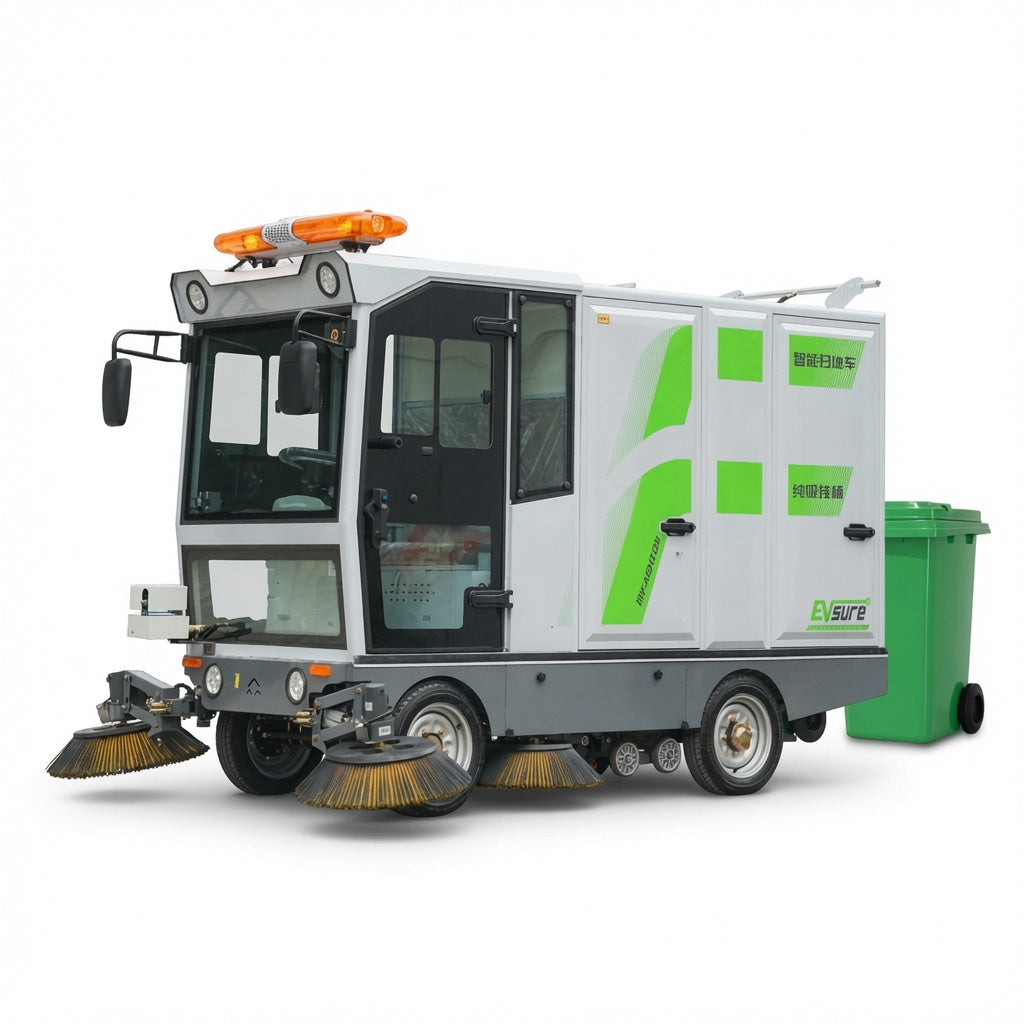

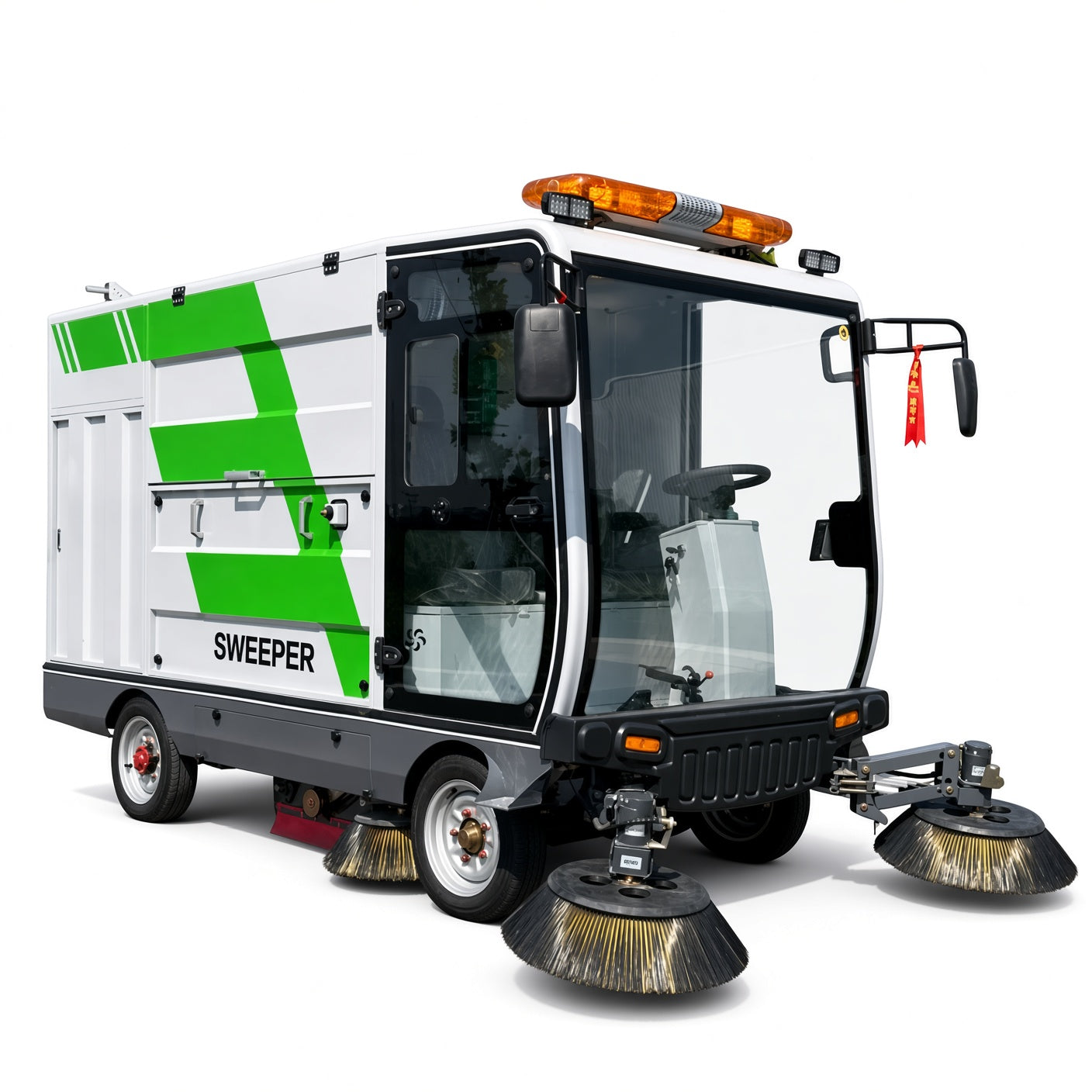

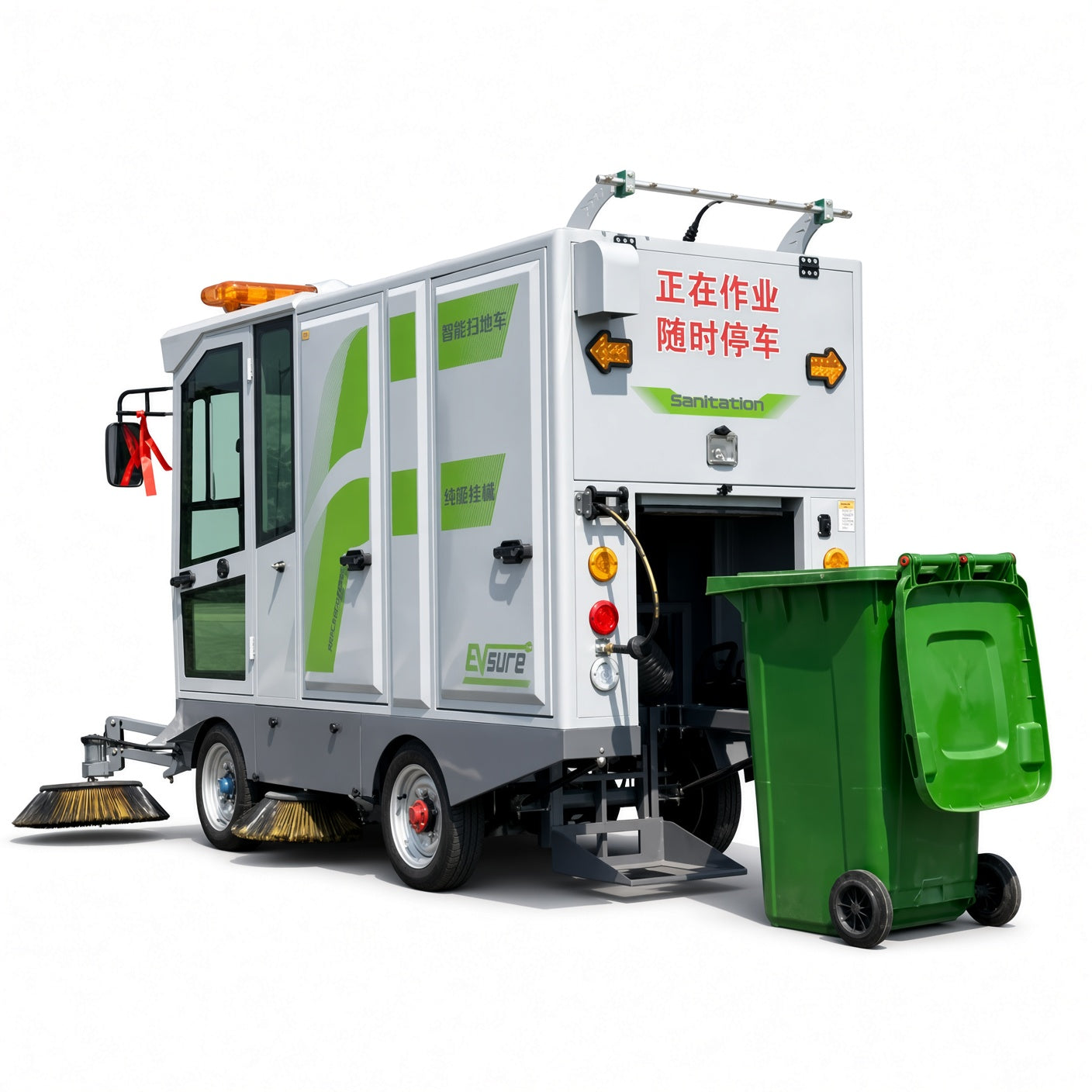

YX-G240L Electric Road Sweeper

YX-G240L Electric Road Sweeper

Product Description:

The YX-G240L Electric Road Sweeper is a new energy ride-on cleaning machine powered by a battery system and equipped with an intelligent control system.

It integrates sweeping, vacuum cleaning, garbage collection and water spraying dust suppression functions.

Equipped with an 800mm main brush, front 700mm and middle 600mm side brushes, and a high-efficiency vacuum filtration system, it provides excellent cleaning performance for roads, industrial parks, schools, commercial areas and public spaces.

The ride-on design provides easy operation and high cleaning efficiency for large-area cleaning applications.

Key Features:

Battery-powered electric cleaning system

Eco-friendly and energy-saving operation

Ride-on design with intelligent control

2450mm wide sweeping coverage

20000-32000㎡/h working efficiency

800mm main brush width

Front 700mm and middle 600mm side brushes

240L garbage bin capacity

300L water tank capacity

1500W high-pressure water pump

3000W drive motor

1000W roller brush motor

4×100W side brush motors

20㎡ vacuum filtration area

Water spraying dust suppression function

Optional handheld vacuum hose function

Product Specifications:

Model：YX-G240L

Product Type：Electric Road Sweeper

Overall Dimension：3230×2450×2200mm

Sweeping Width：2450mm

Main Brush Width：800mm

Working Efficiency：20000-32000㎡/h

Working Hours：3-6 Hours

Walking Speed：0-17km/h

Garbage Bin Capacity：240L

Water Tank Capacity：300L

Side Brush Diameter：Front 700mm Middle 600mm

Vacuum Filtration Area：20㎡

Walking Motor：60V 3000W Intelligent Gear Change

Suction Motor：60V 5000W

Rolling Brush Motor：1000W

Side Brush Motor：4×100W

Motor Voltage：60V

High Pressure Pump：1500W

High Pressure Fog Cannon Range：6-10m

High Pressure Water Gun Range：10-18m

High Pressure Pump Pressure：0-13MPa

Max Flow Rate：11L/min

Control Mode：Intelligent Control System With Timed Dust Shaking Function

Lighting System：Four-way LED Headlights

Tail Light：Steering Brake Integrated Taillights

Warning Light：Top Operation Warning Light

Reverse Camera：HD Reverse Camera

Battery Type：Lead Acid Maintenance Free Battery

Battery Capacity：48V-150Ah×6 / 200Ah×8 / 240Ah×8

Tyre Model：130/70R12

Package Size：323×245×220cm

Package Gross Weight：800kg
