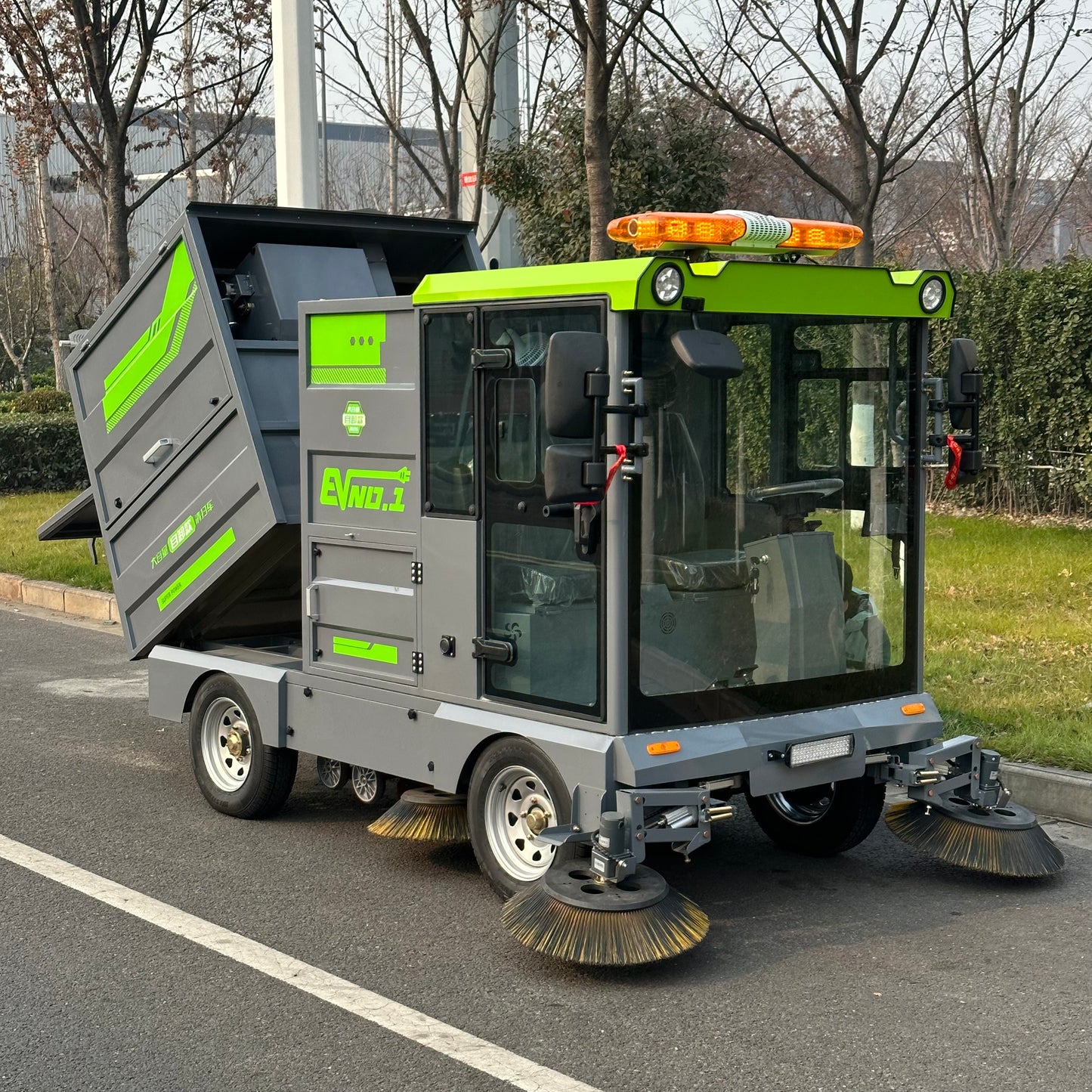

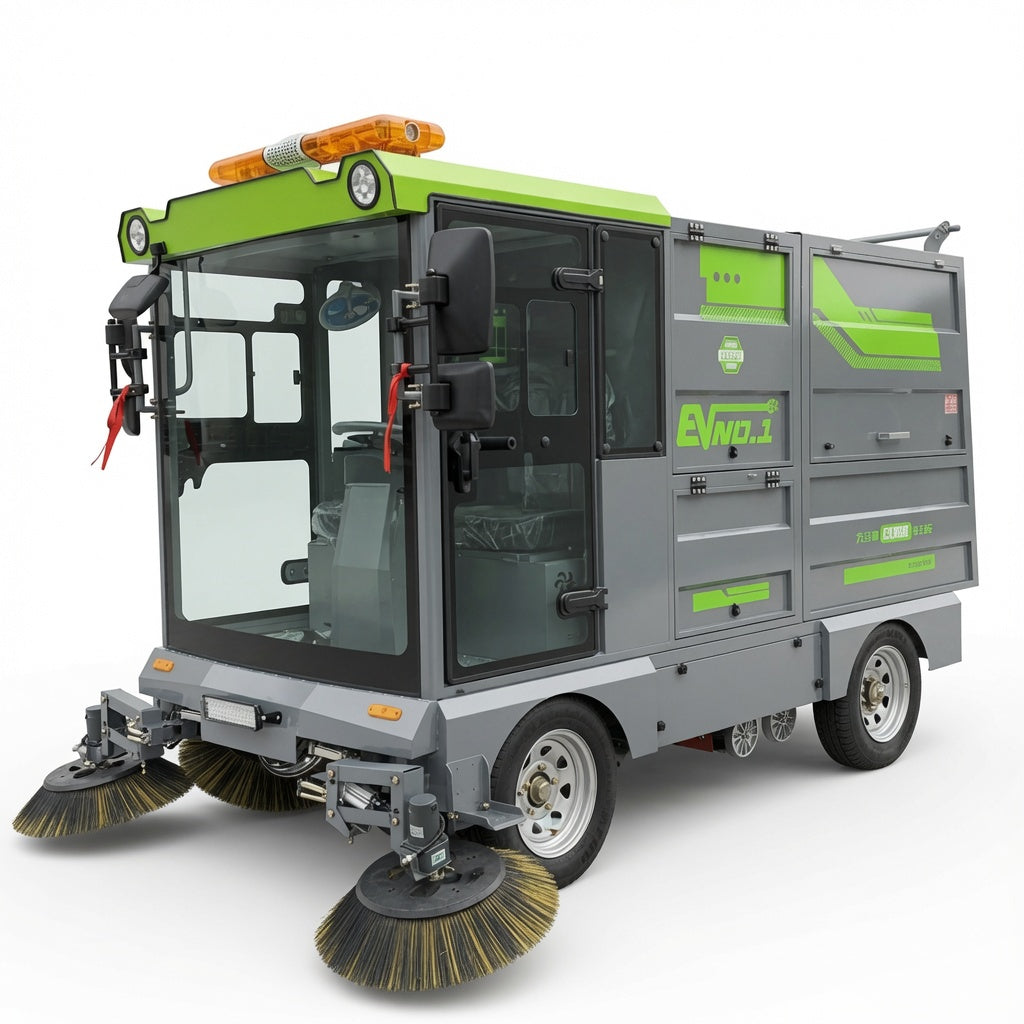

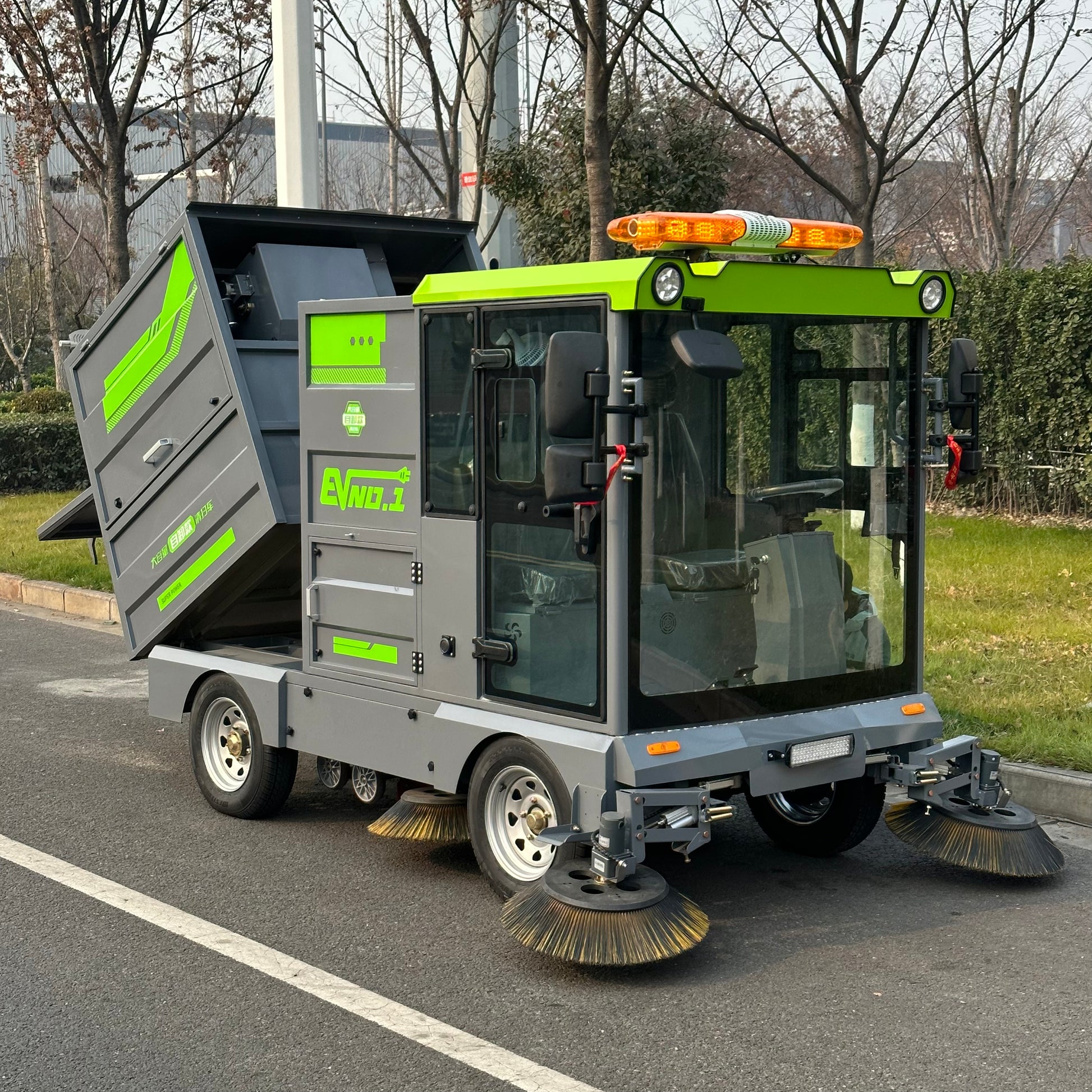

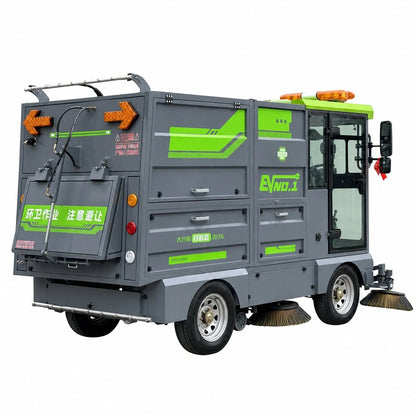

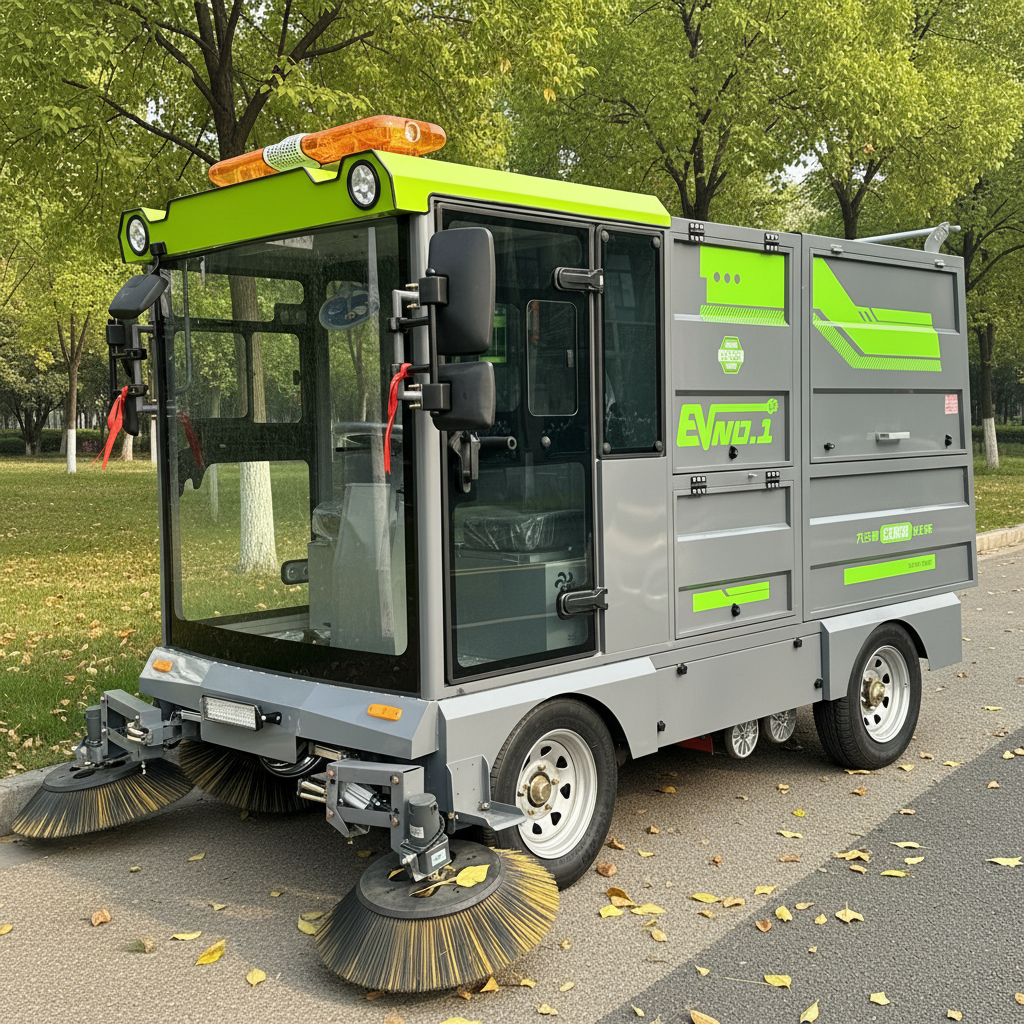

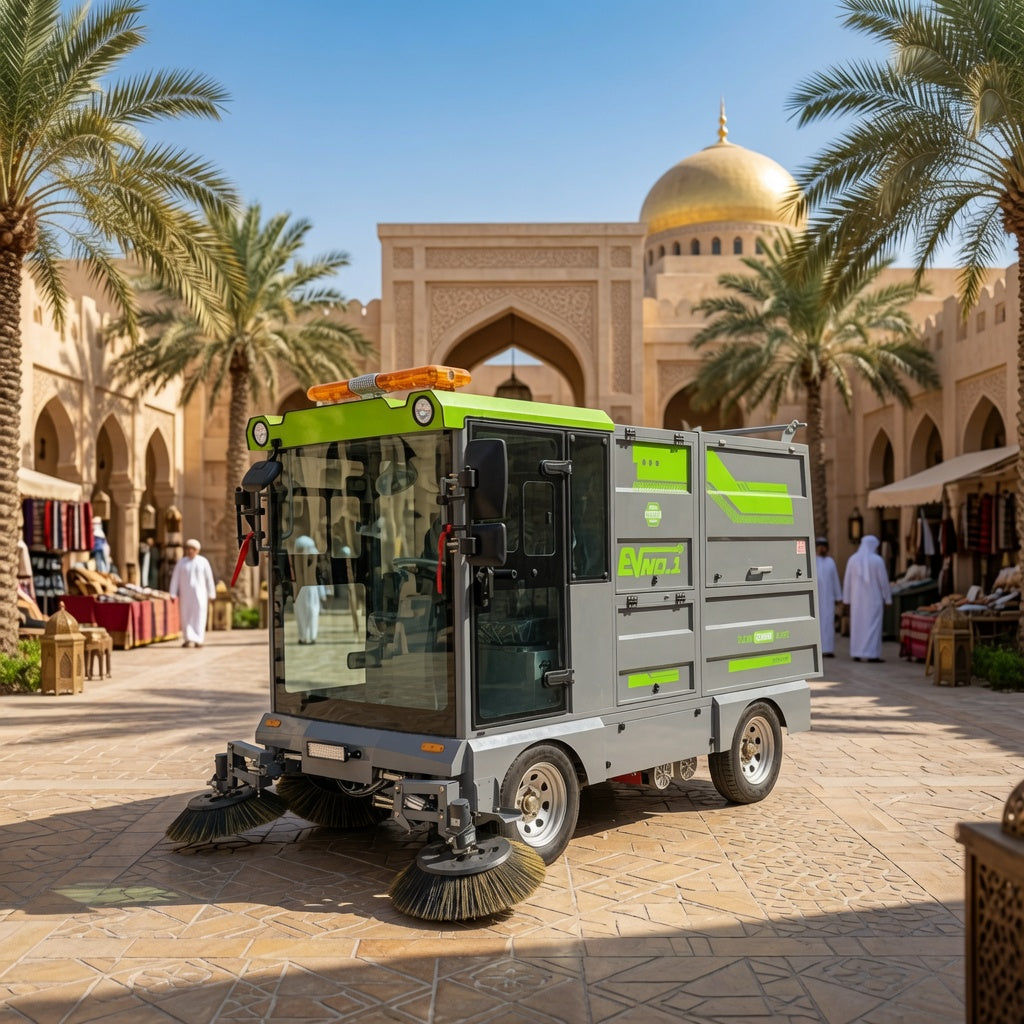

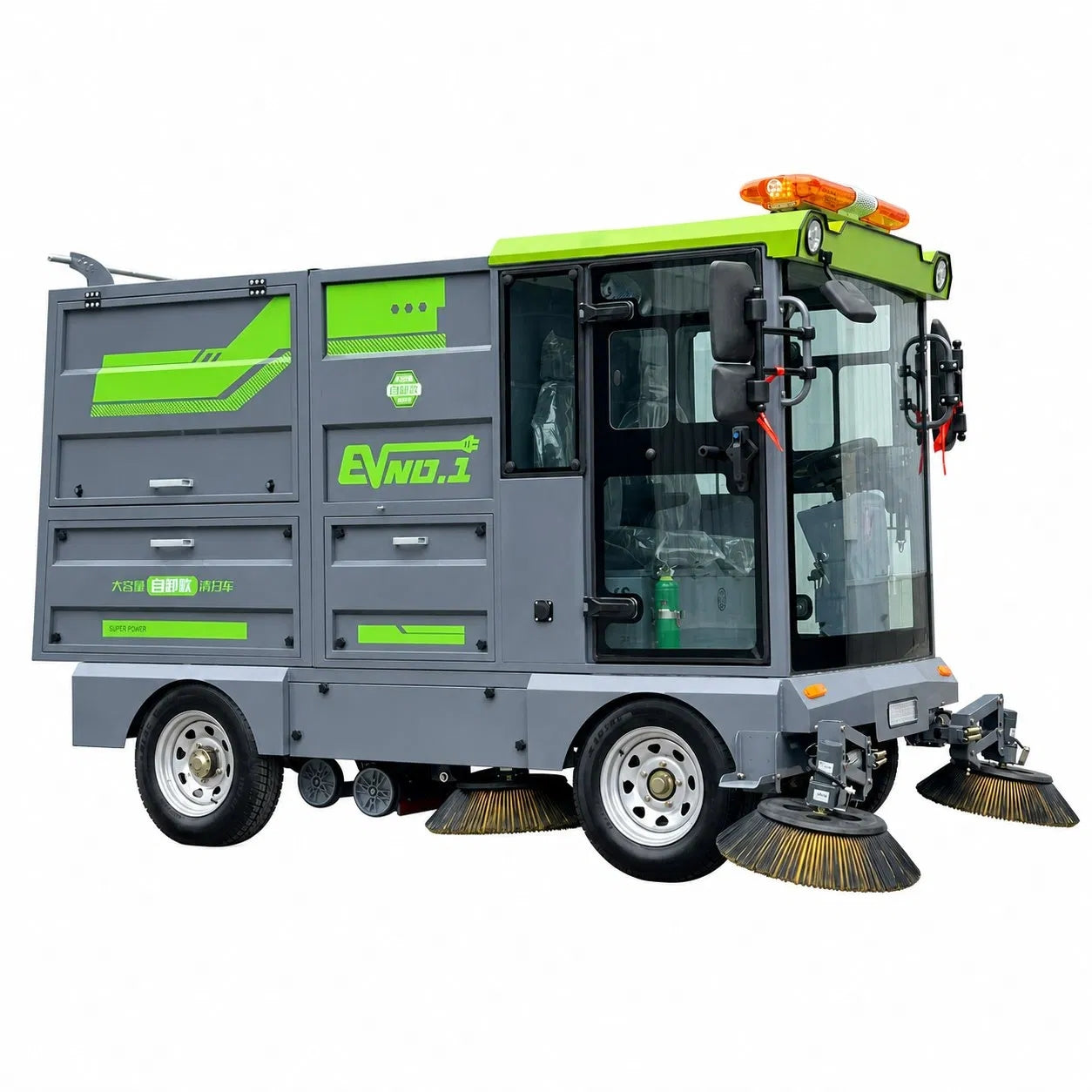

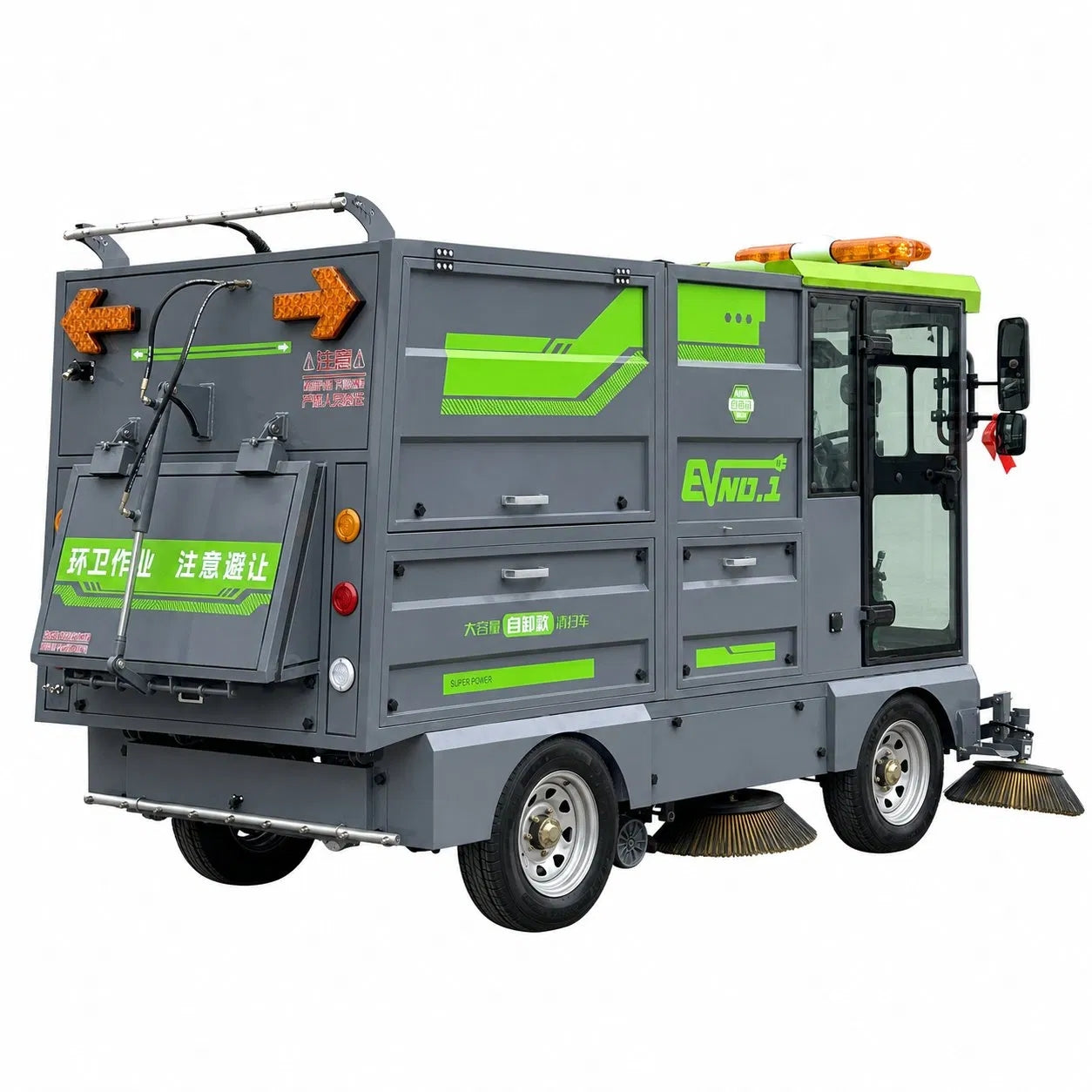

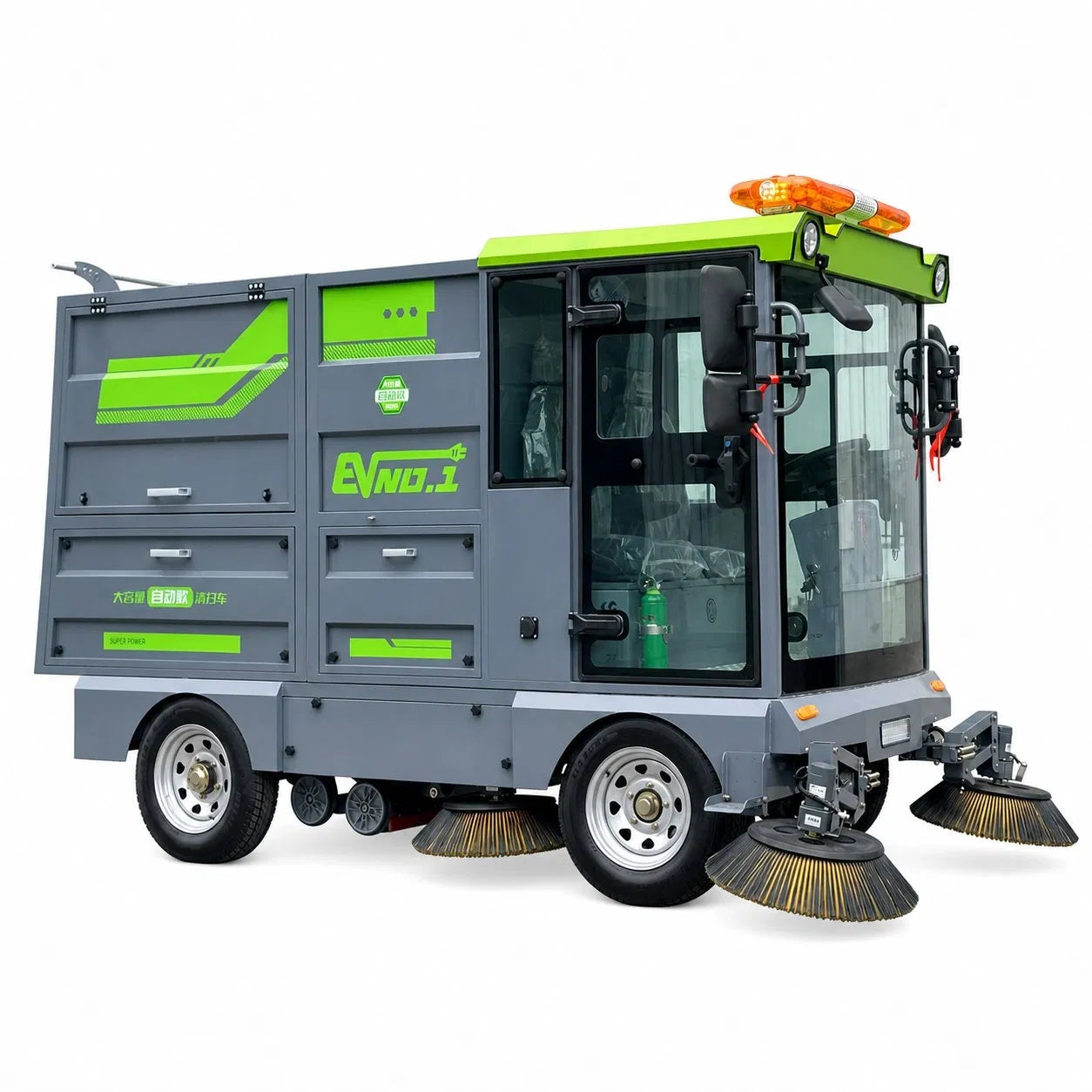

YX-5C Intelligent Electric High Dump Road Sweeper
Main Features:

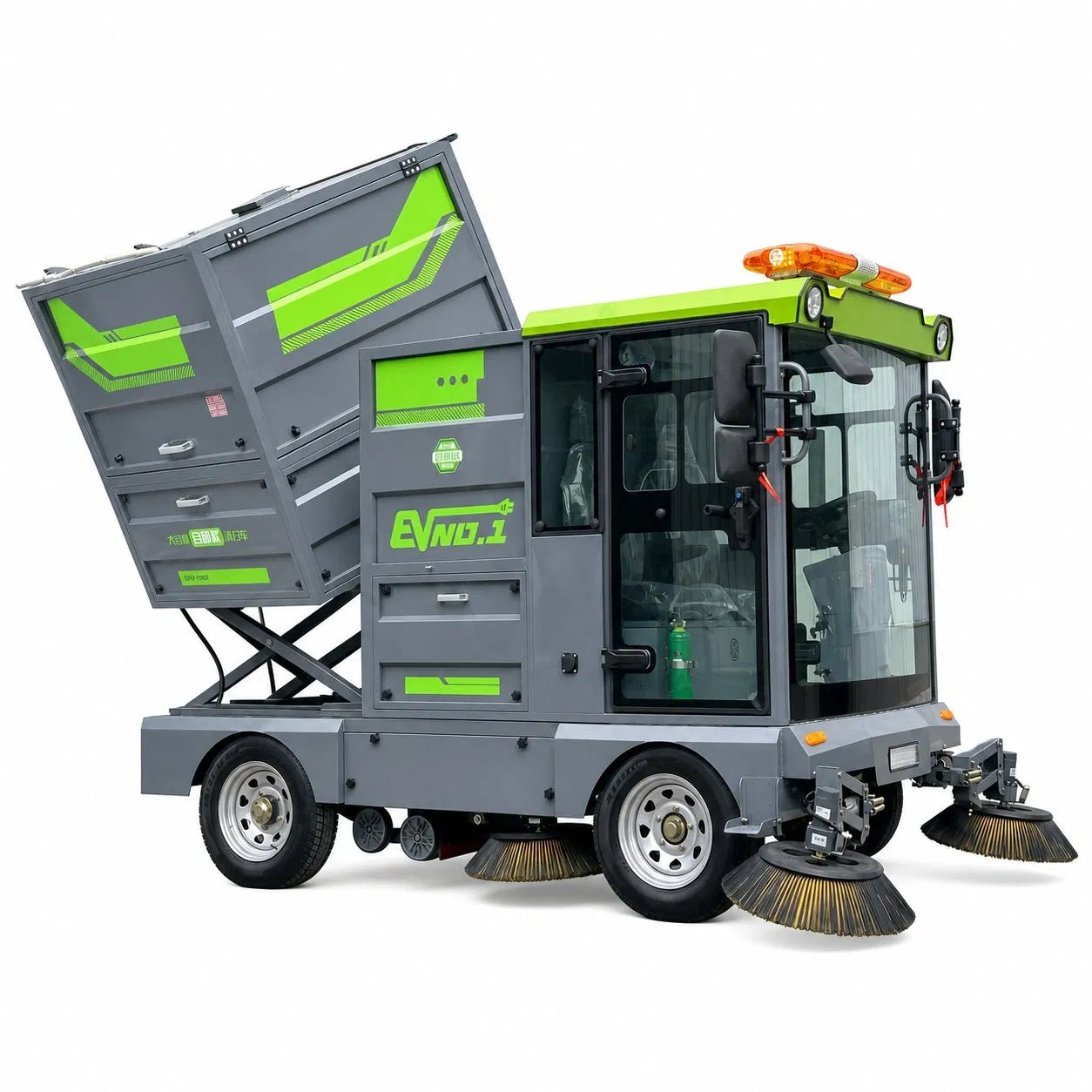

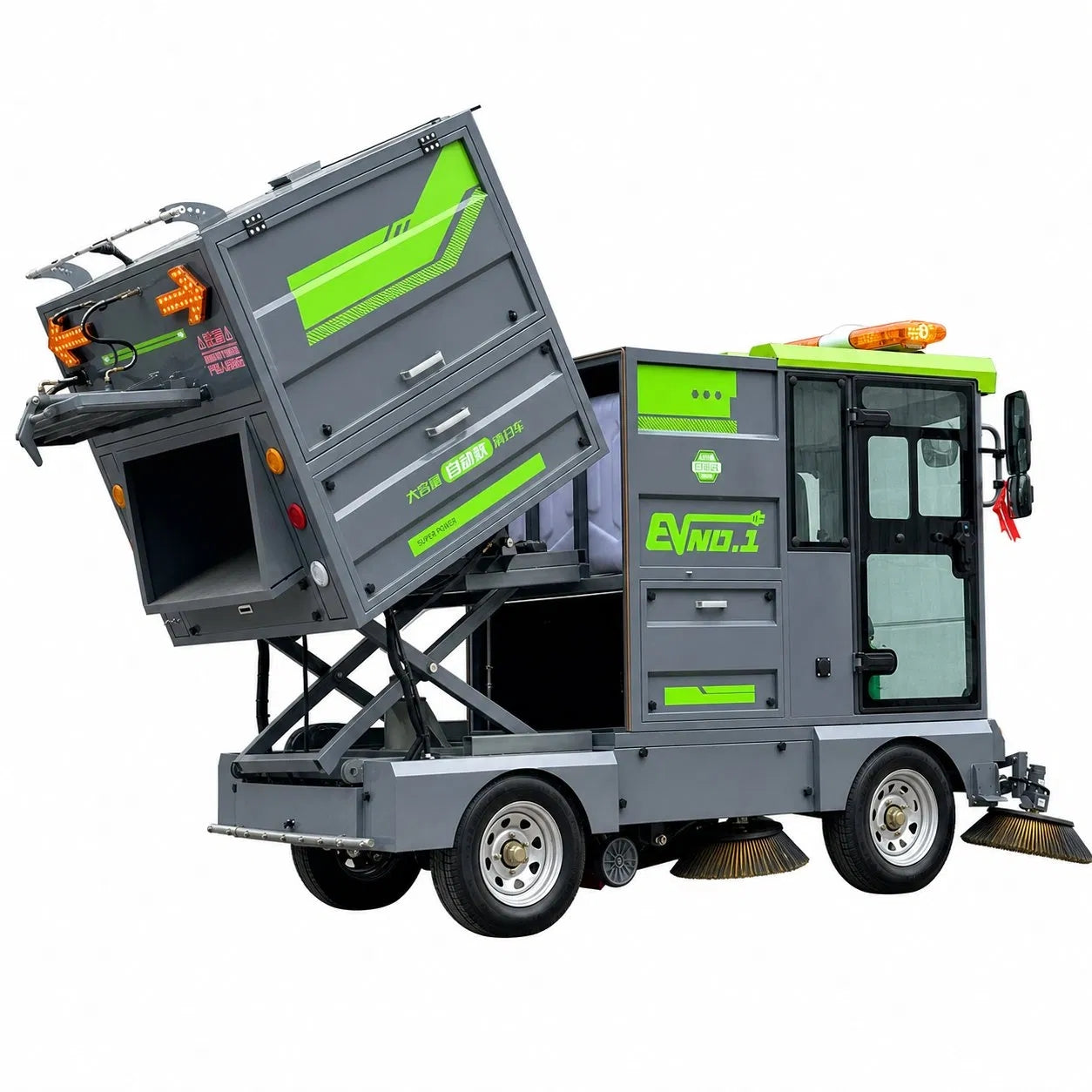

High Dump Automatic Unloading System:
YX-5C features a hydraulic high dump garbage hopper with a maximum unloading height of 3070mm. The garbage box can be lifted automatically and directly unload waste into garbage trucks, greatly improving cleaning efficiency and reducing manual handling.
Wide Sweeping Coverage:
Equipped with a professional sweeping system with 2450mm cleaning width, suitable for large-area road cleaning operations.
Large Capacity Cleaning System:
Equipped with an 800L garbage hopper and 600L water tank, allowing longer continuous cleaning operation.
Pure Electric Drive System:
Powered by an electric system with zero emissions, low noise operation and low maintenance cost, suitable for modern urban environmental cleaning.
Specifications:
Model: YX-5C
Vehicle Type: Ride-on Electric Road Sweeper
Driving Type: Electric Drive
Capacity: 2 Persons
Motor Power: 60V 5000W
Suction Motor Power: 60V 5000W
High Pressure Pump Power: 1500W
Garbage Hopper Capacity: 800L
Water Tank Capacity: 600L
Sweeping Width: 2450mm
Suction Cup Length: 900mm
Side Brush Diameter: 700mm
Maximum Unloading Height: 3070mm
Working Time: 3-6 Hours
Maximum Speed: 16km/h
Working Speed: 10km/h
Maximum Climbing Ability: ≤25%
Wheel Track: 1400mm
Wheelbase: 1970mm
Ground Clearance: 130mm
Minimum Turning Radius: 4.6m
Overall Dimension: 4400×2450×2400mm
Control System:
Control Mode: Intelligent Control System
Steering System: Electric Power Steering System
Brake System: Electric Assisted Brake System
Application:
Urban Road Cleaning
Municipal Street Cleaning
Industrial Park Cleaning
Residential Community Cleaning
Parking Lot Cleaning
School Area Cleaning
Public Facility Maintenance
Product Advantages:
High dump automatic unloading design
800L large capacity garbage hopper
600L water tank for dust suppression
2450mm wide cleaning coverage
Pure electric environmentally friendly operation
Suitable for professional commercial and municipal cleaning applications
