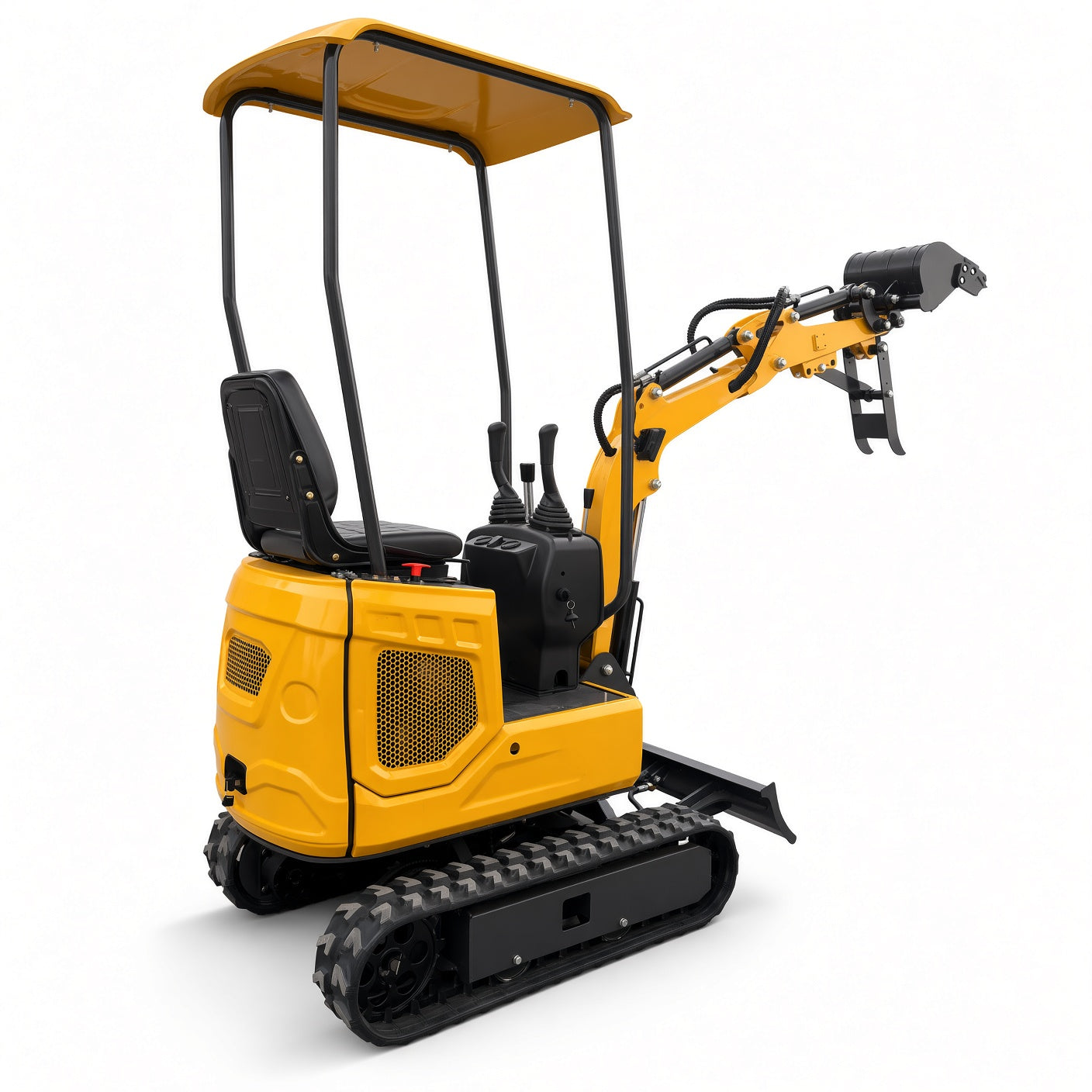

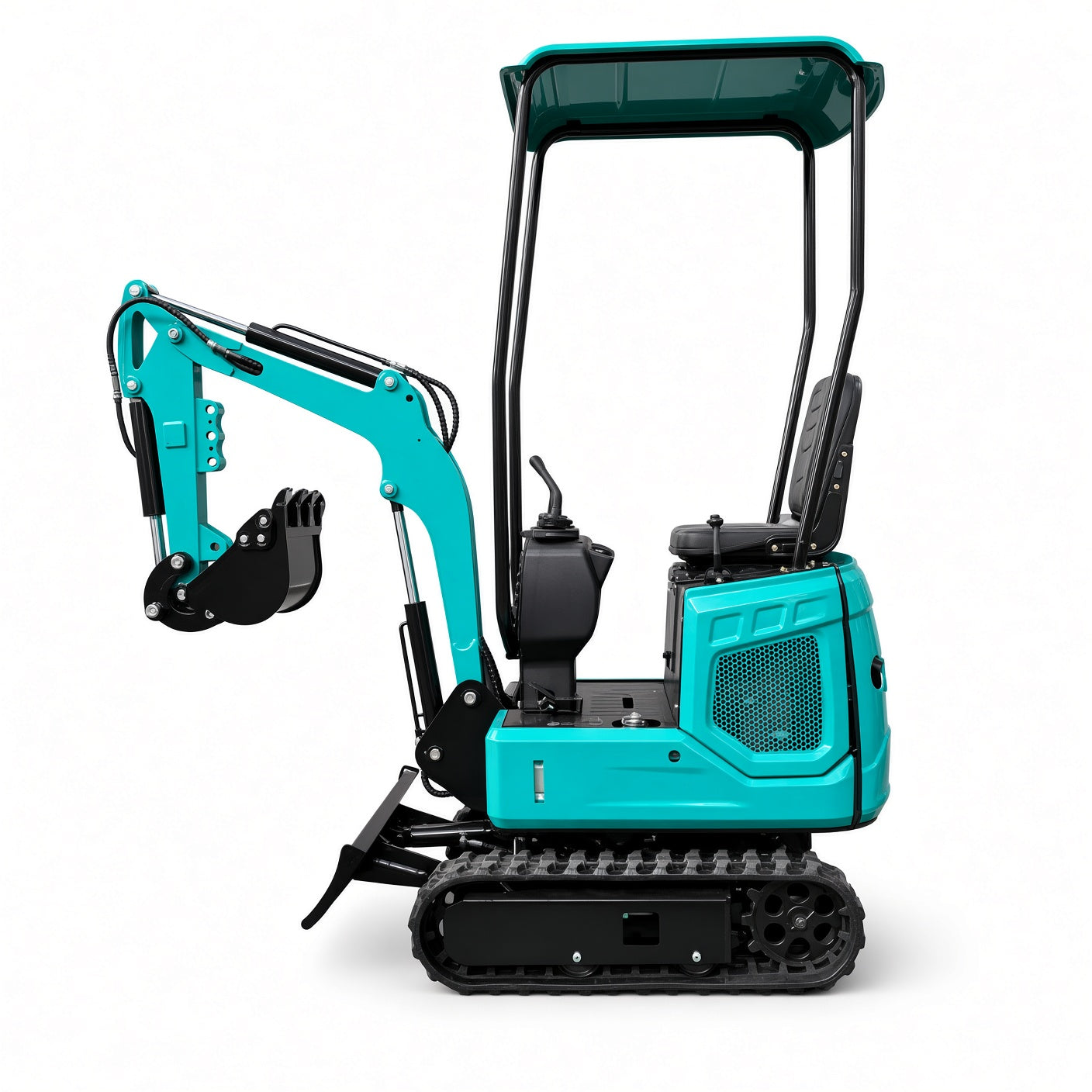

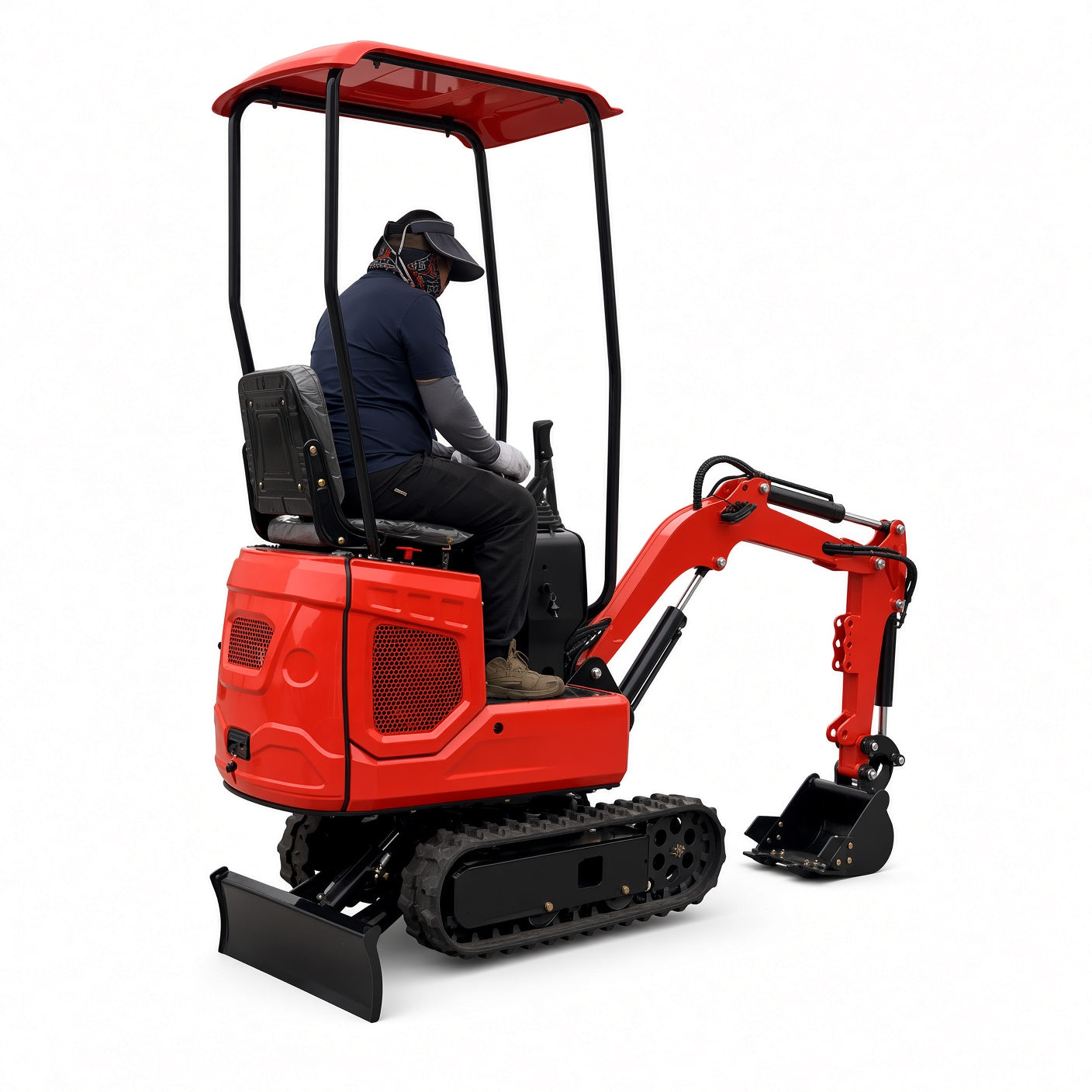

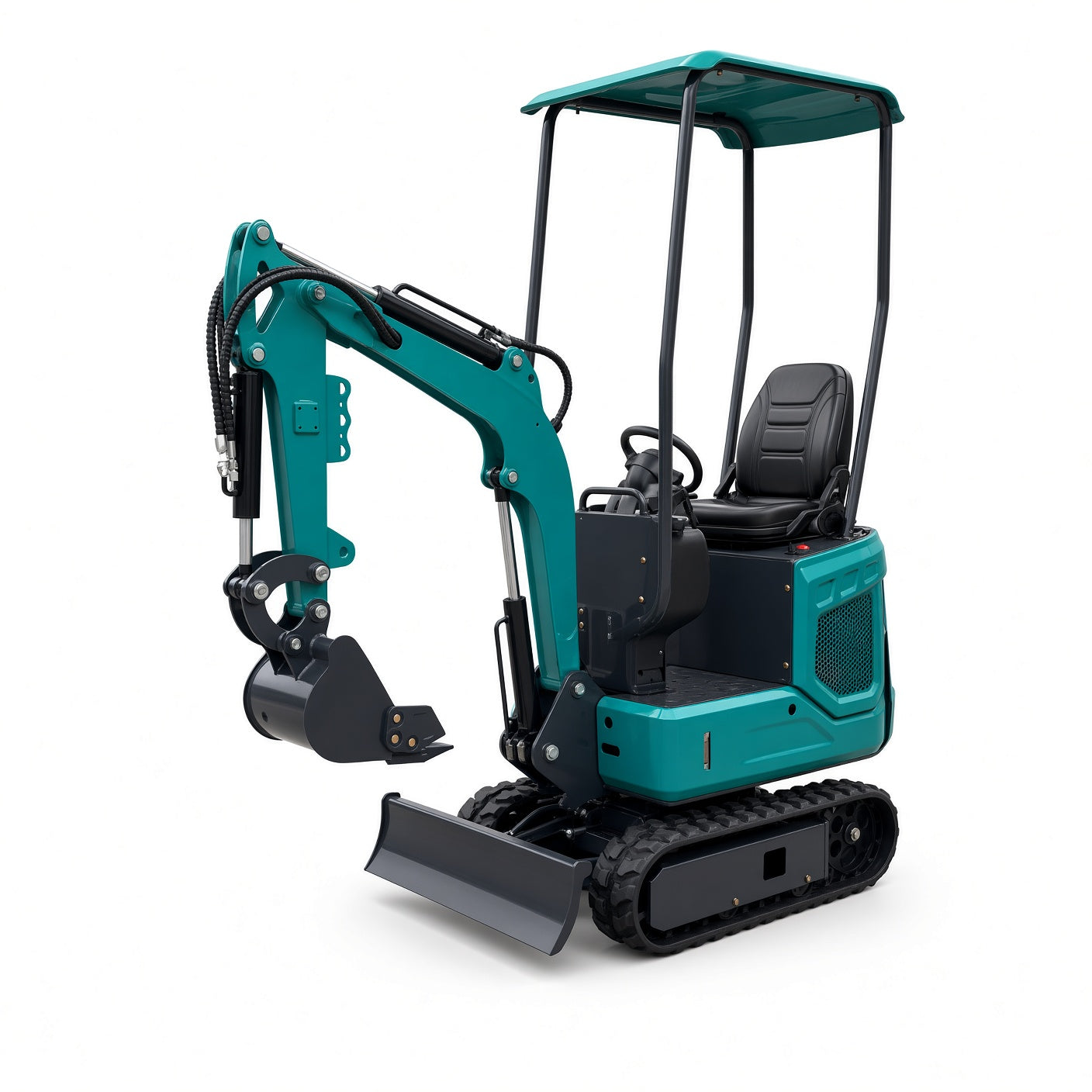

Product Name: ME08 Mini Excavator

Product Description:

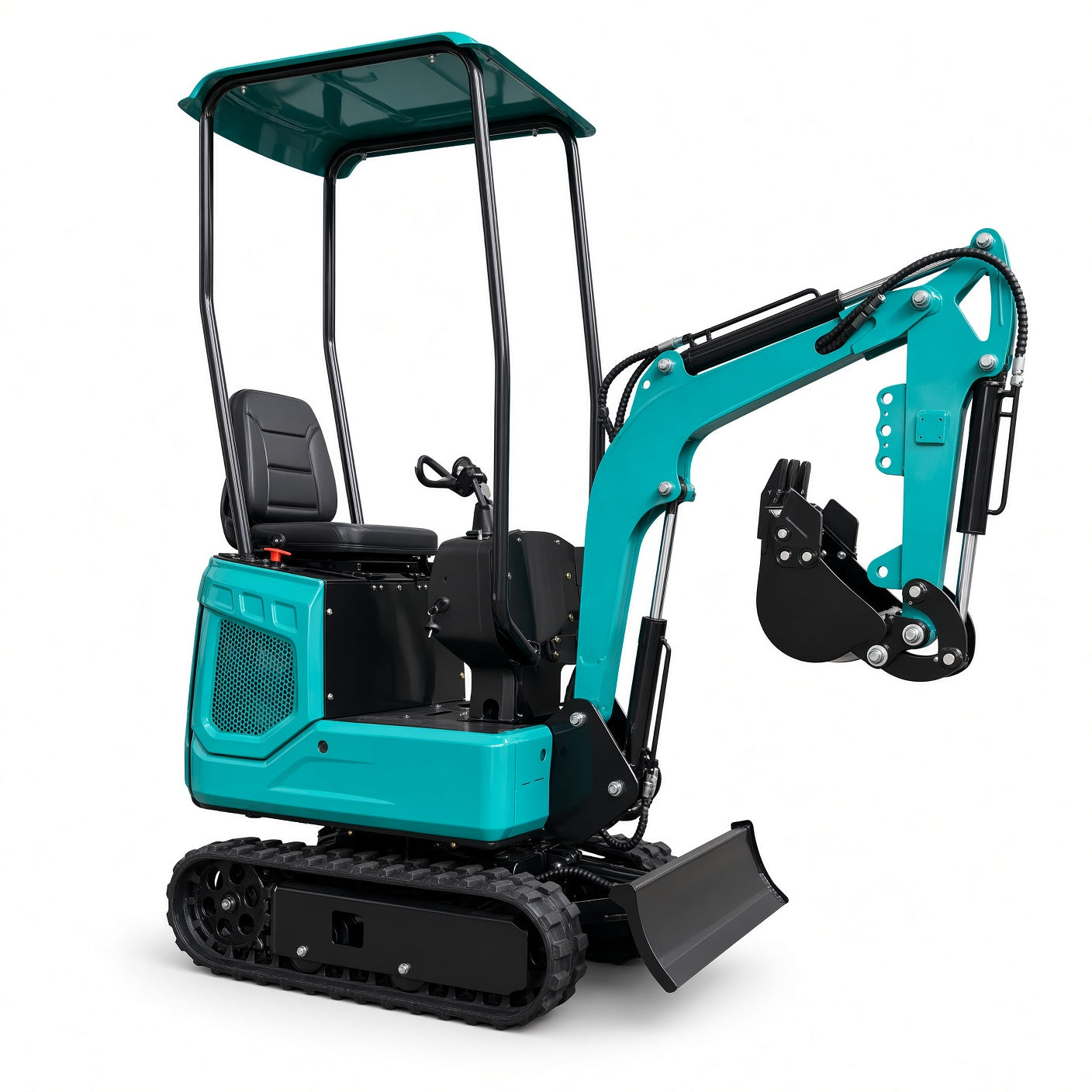

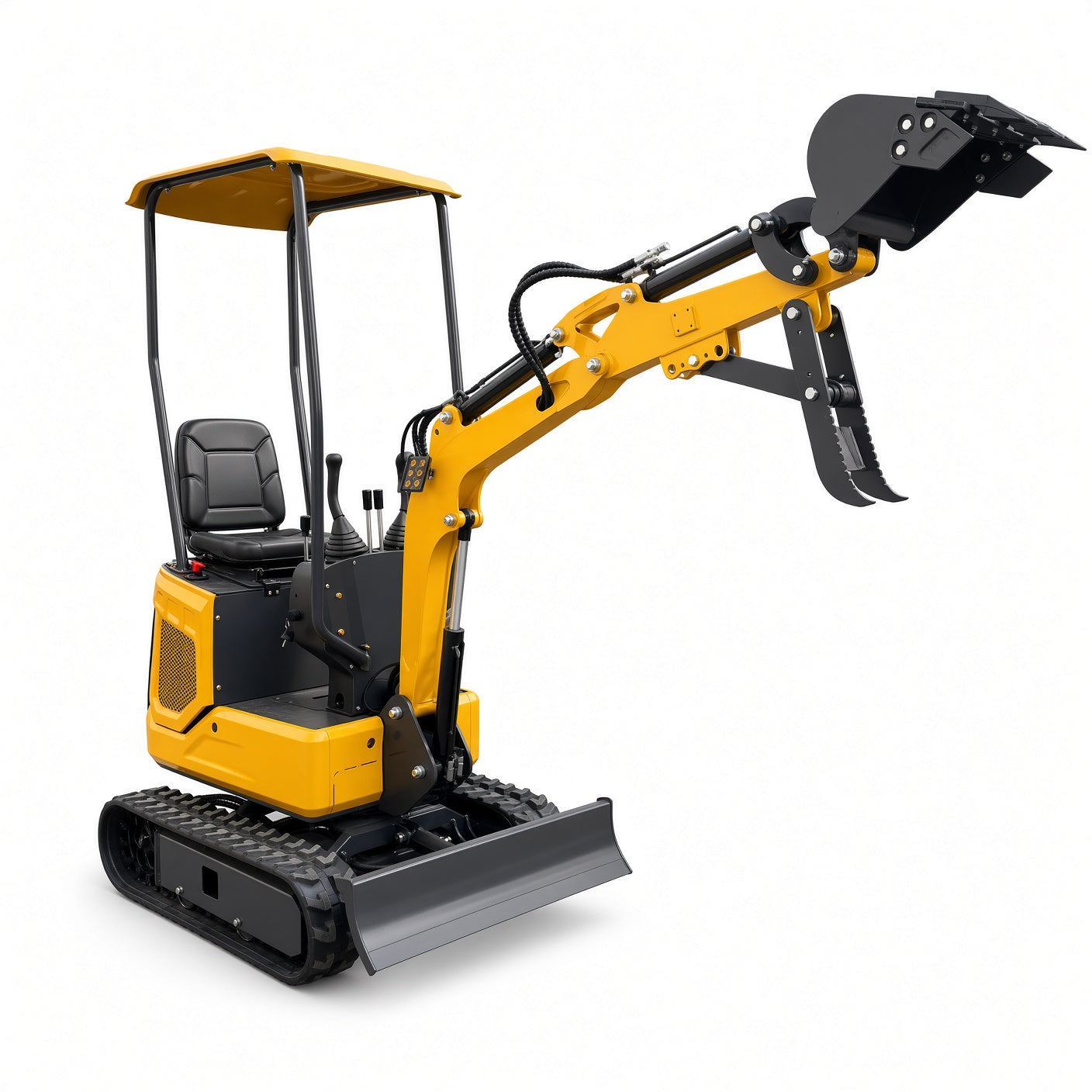

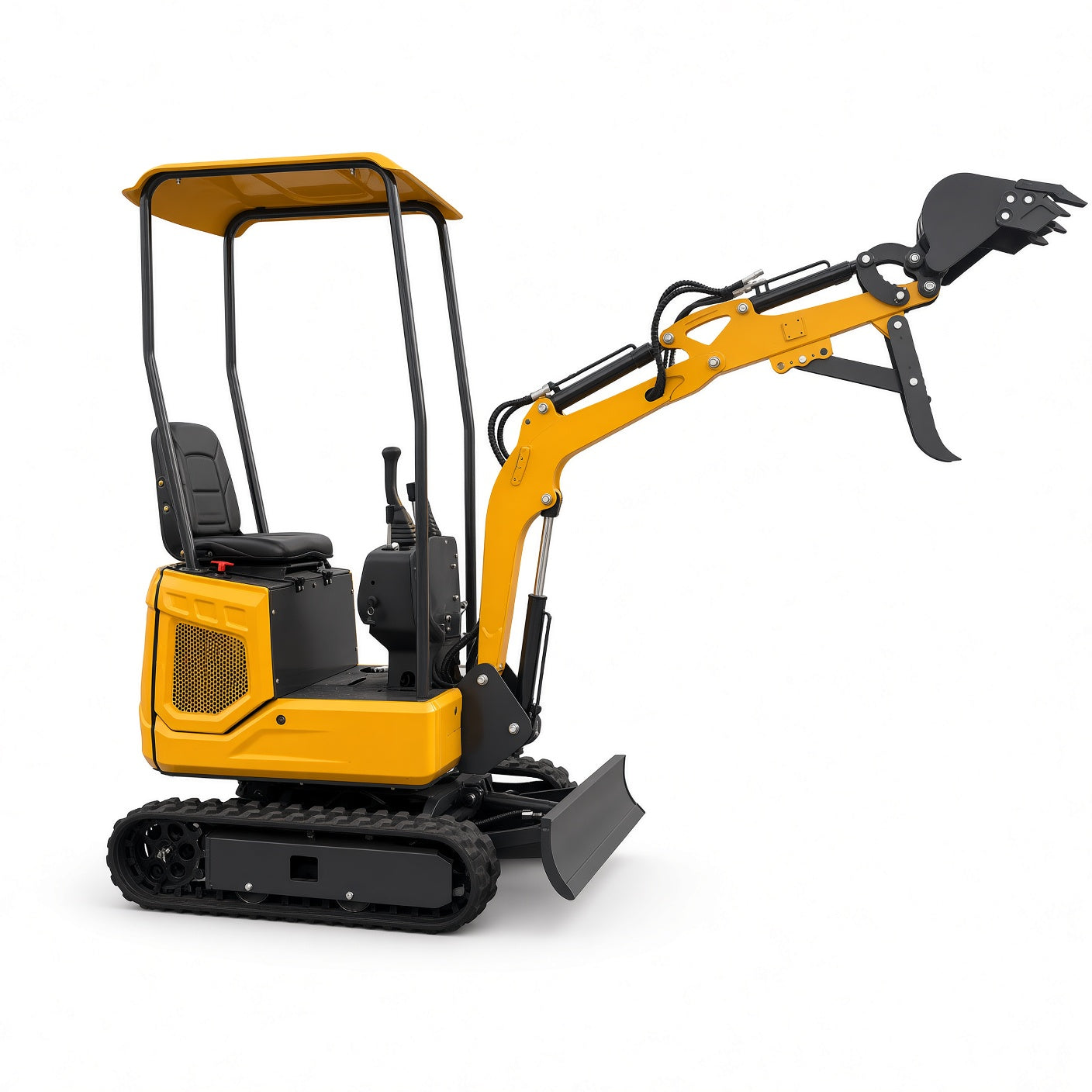

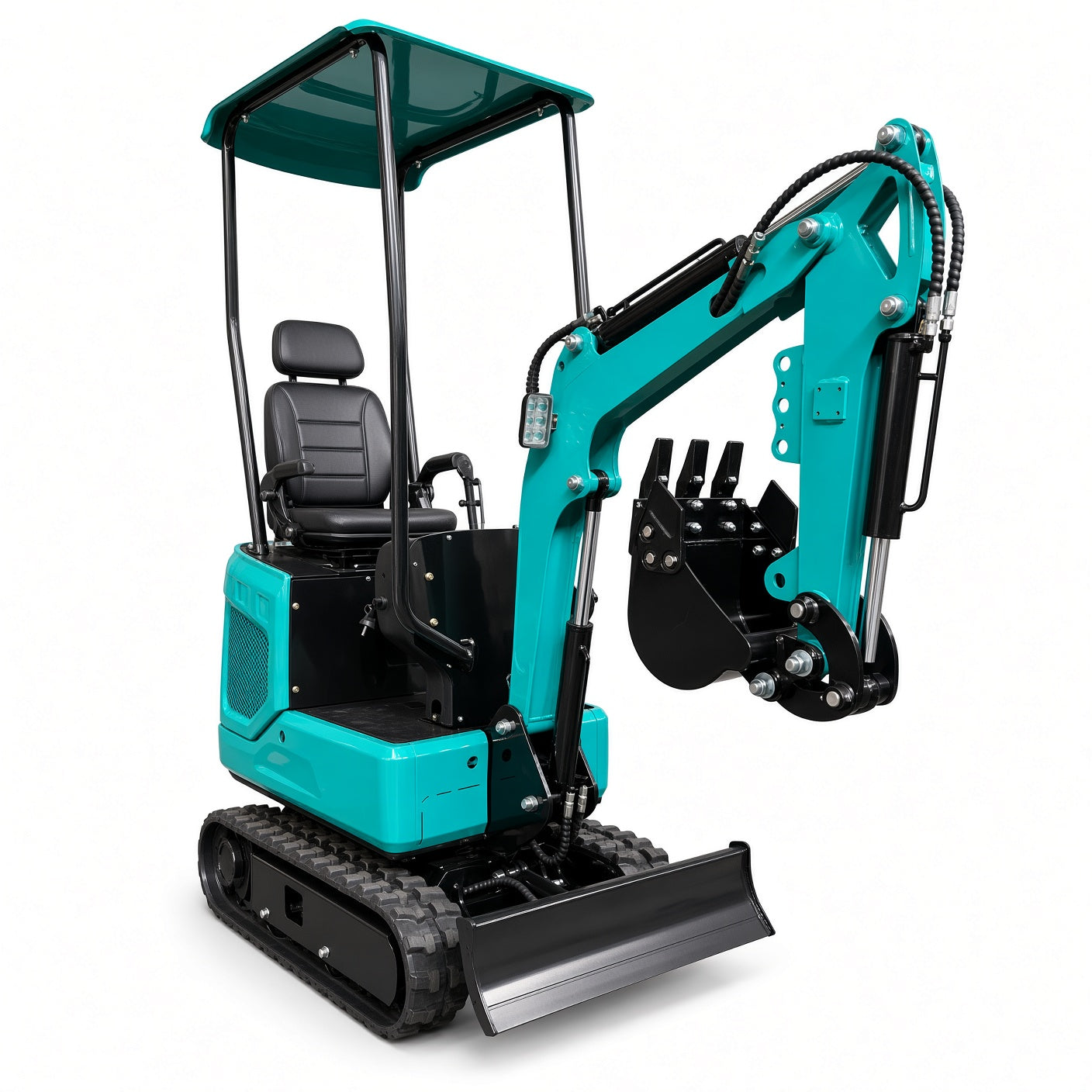

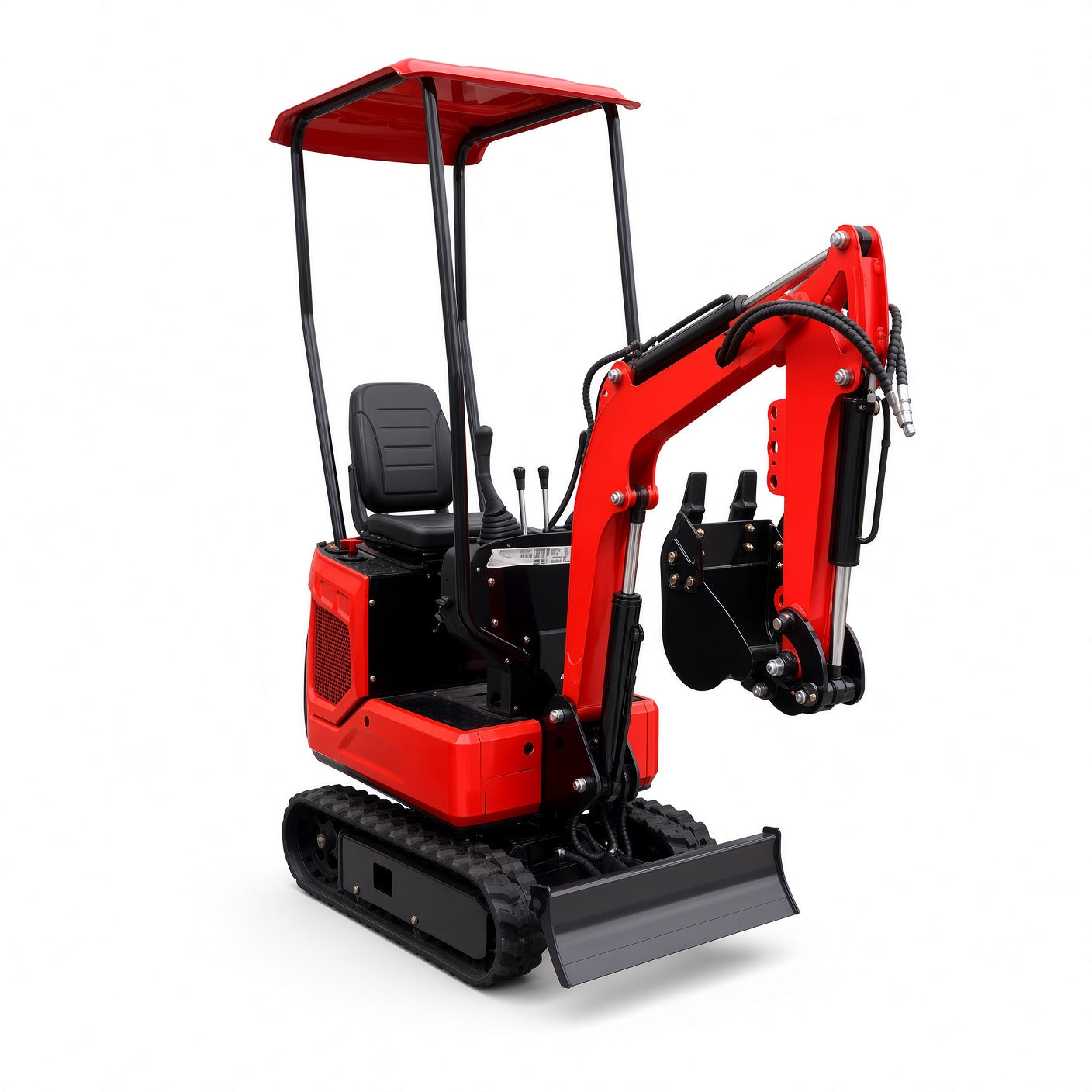

The ME08 is a compact crawler mini excavator powered by a single-cylinder four-stroke air-cooled diesel engine with a rated power of 7.6kW. It offers a max digging depth of 1300mm and max digging height of 2350mm. With its compact body, it is suitable for indoor demolition, orchard ditching and weeding, greenhouse soil turning, rural sewer dredging, and other narrow-space operations.

Key Features:
• Compact and flexible body for various narrow-space operations
• Diesel air-cooled engine with 7.6kW rated power for stable performance and low fuel consumption
• Max digging depth 1300mm and max digging height 2350mm

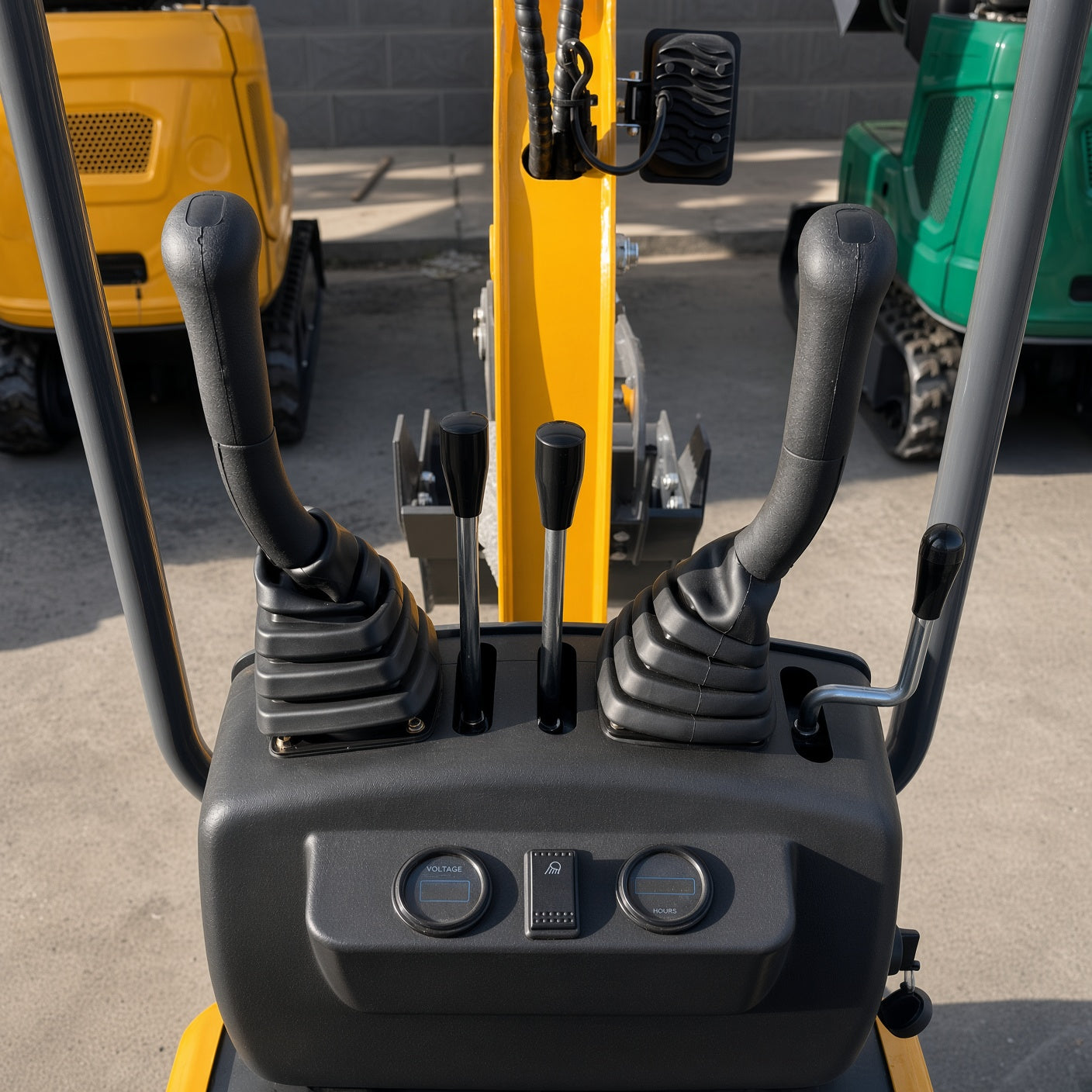

• Simple and easy-to-learn operation with precise controllable movements

Product Specifications:
Model: ME08
Product Type: Mini Excavator

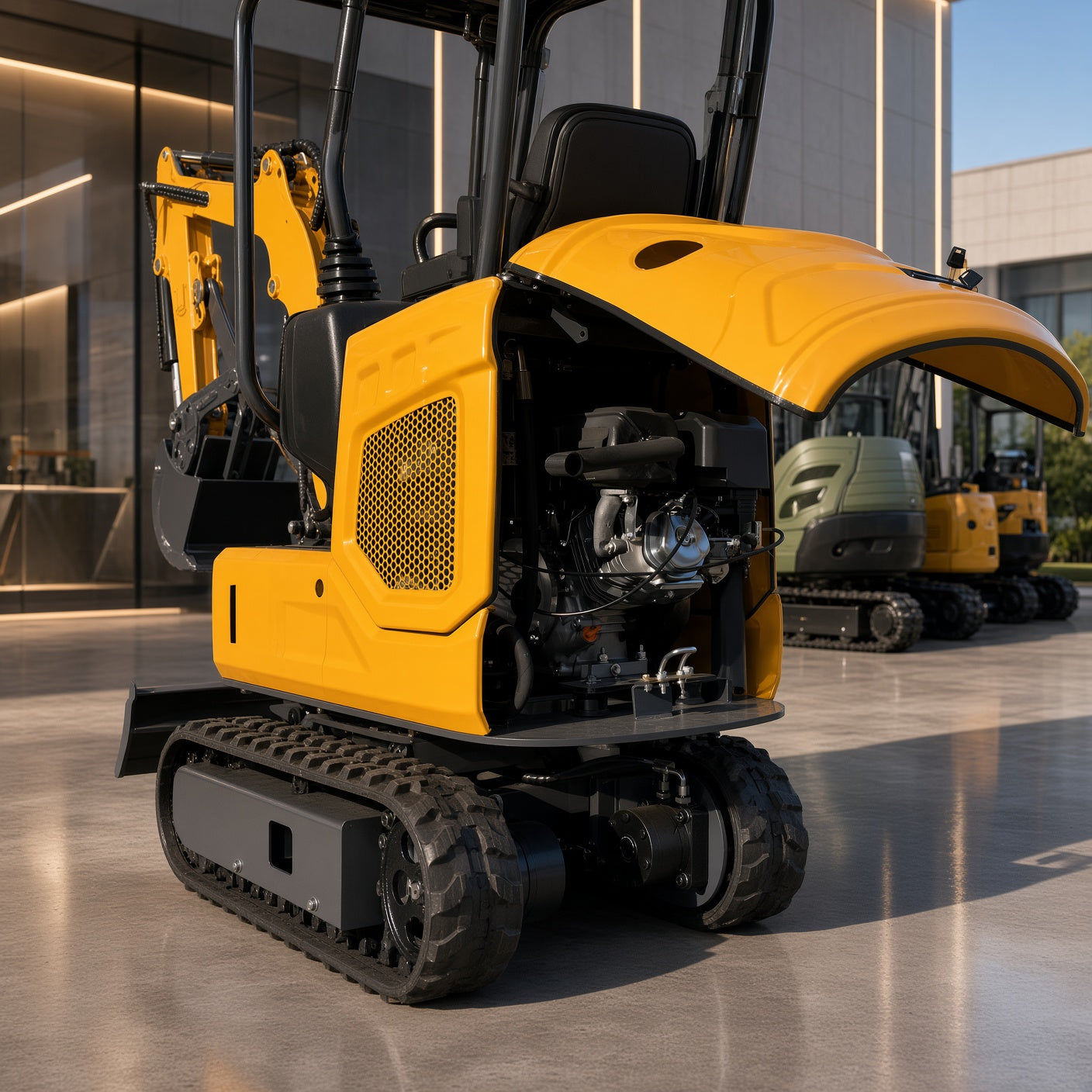

Engine Model: KOOP192F
Engine Type: Single-cylinder, four-stroke, air-cooled, vertical
Displacement: 0.499L
Rated Power: 7.6kW / 3000rpm
Horsepower: 10.3HP
Fuel Type: Diesel
Fuel Consumption: 275g/kWh
Fuel Tank Capacity: 5.5L
Oil Capacity: 1.65L
Overall Dimensions: 2430×720×1390mm
Track Ground Length: 1140mm
Track Width: 150mm
Max Digging Depth: 1300mm
Max Dumping Height: 1600mm
Max Digging Height: 2350mm
Climbing Capacity: 30°
Travel Speed: 0-2.5km/h
Bucket Digging Force: 6.5kN
Suitable For: Indoor demolition, Orchard ditching, Greenhouse soil turning, Sewer dredging

720KG
