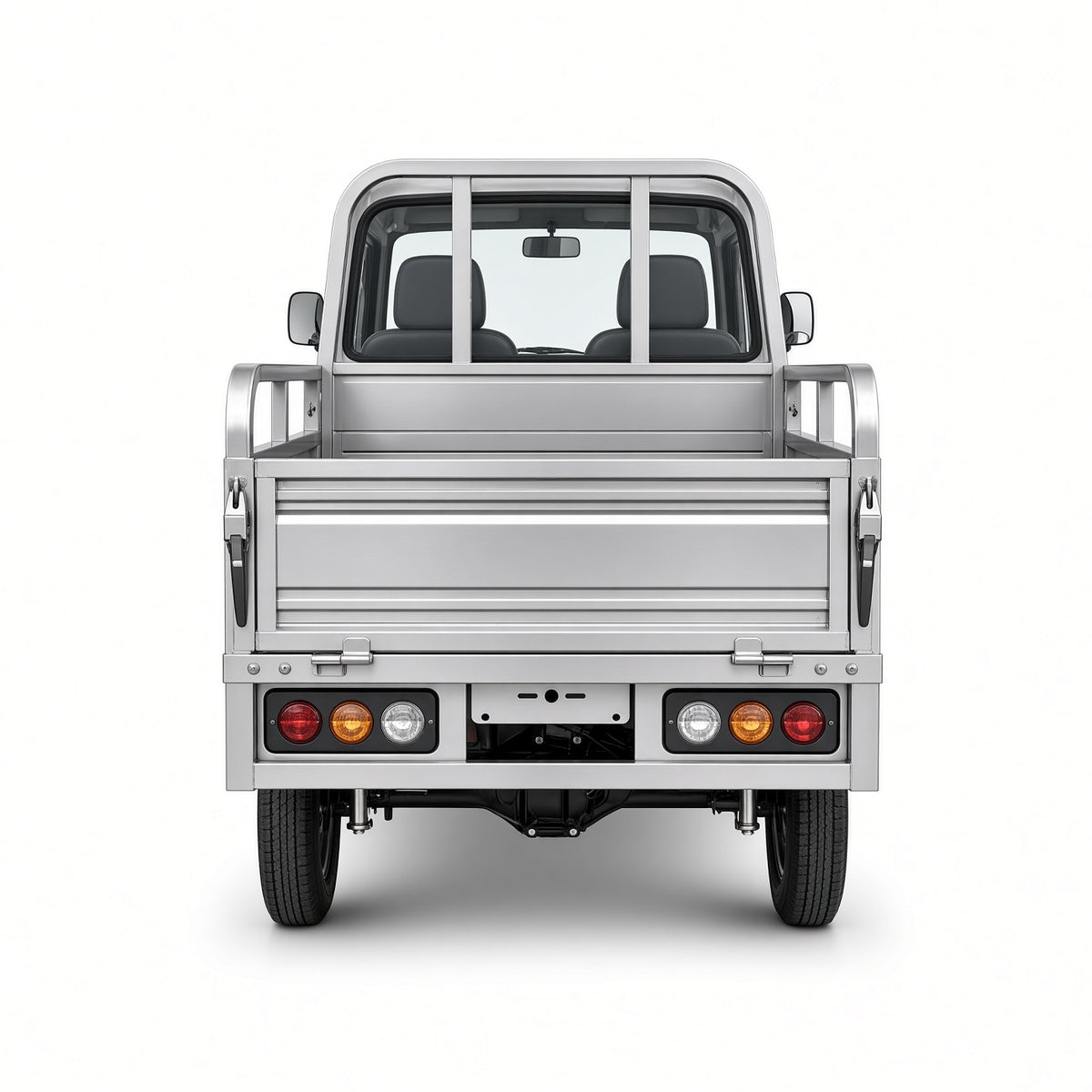

X6-120 Folding Electric Tricycle 1.2m 800W 48V/60V 225kg Rated Load 300kg Max Load

Title: X6-120 Folding Electric Tricycle 1.2m 800W 48V/60V 225kg Rated Load 300kg Max Load

Product Name: X6-120 Folding Electric Tricycle

Product Description:
The X6-120 is a 1.2m folding electric tricycle with overall dimensions of 2700×1250×930mm and a cargo box of 1200×950×300mm. Motor power is 800W 40H with a 48V/60V 18-tube controller and a top speed of 25km/h. Rated load is 225kg and maximum load is 300kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo carrying and community delivery.

Key Features:
• 800W motor, 48V/60V 18-tube controller, 25km/h top speed
• 1.2m folding cargo box, 225kg rated load, 300kg maximum load
• Front and rear drum brakes plus hand parking, 5m braking distance
• Hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: X6-120
Product Type: 1.2m Folding Electric Tricycle
Overall Size: 2700×1250×930mm
Cargo Size: 1200×950×300mm
Cargo Material: 0.8mm cold-rolled cargo door, 0.8mm steel floor
Curb Weight: 155kg (Without Battery)
Rated Motor Power: 800W 40H
Controller: 48V/60V, 18-tube
Rear Axle: Split Rear Axle, Φ130 Brake Drum
Front Fork: Φ31 Integrally Cast Hydraulic Shock Absorber
Tires: Front 300-12, Rear 300-12
Rims: Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 5m
Wire Harness: National Standard, Waterproof Plugs
Spring Plate: 3pcs × 5kg
Wheelbase: 1900mm
Track: 750mm
Max Gradeability: ≥18°
Max Speed: 25km/h
Rated Load Capacity: 225kg
Max Load Capacity: 300kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Customizable
Functions: Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Anti-Theft Beep, NFC, Disc Brake, Alloy Rim, Range Extender
Loading Qty: CKD 80 Units / 40HQ, SKD 66 Units / 40HQ
Suitable For: Short-distance cargo carrying, Community delivery, Park logistics
