QH12-3 Mini Excavator With driver's cab Diesel Engine Max Digging Depth 1700mm for Narrow Space Operations

Title: QH12-3 Mini Excavator Diesel Engine Max Digging Depth 1700mm for Narrow Space Operations

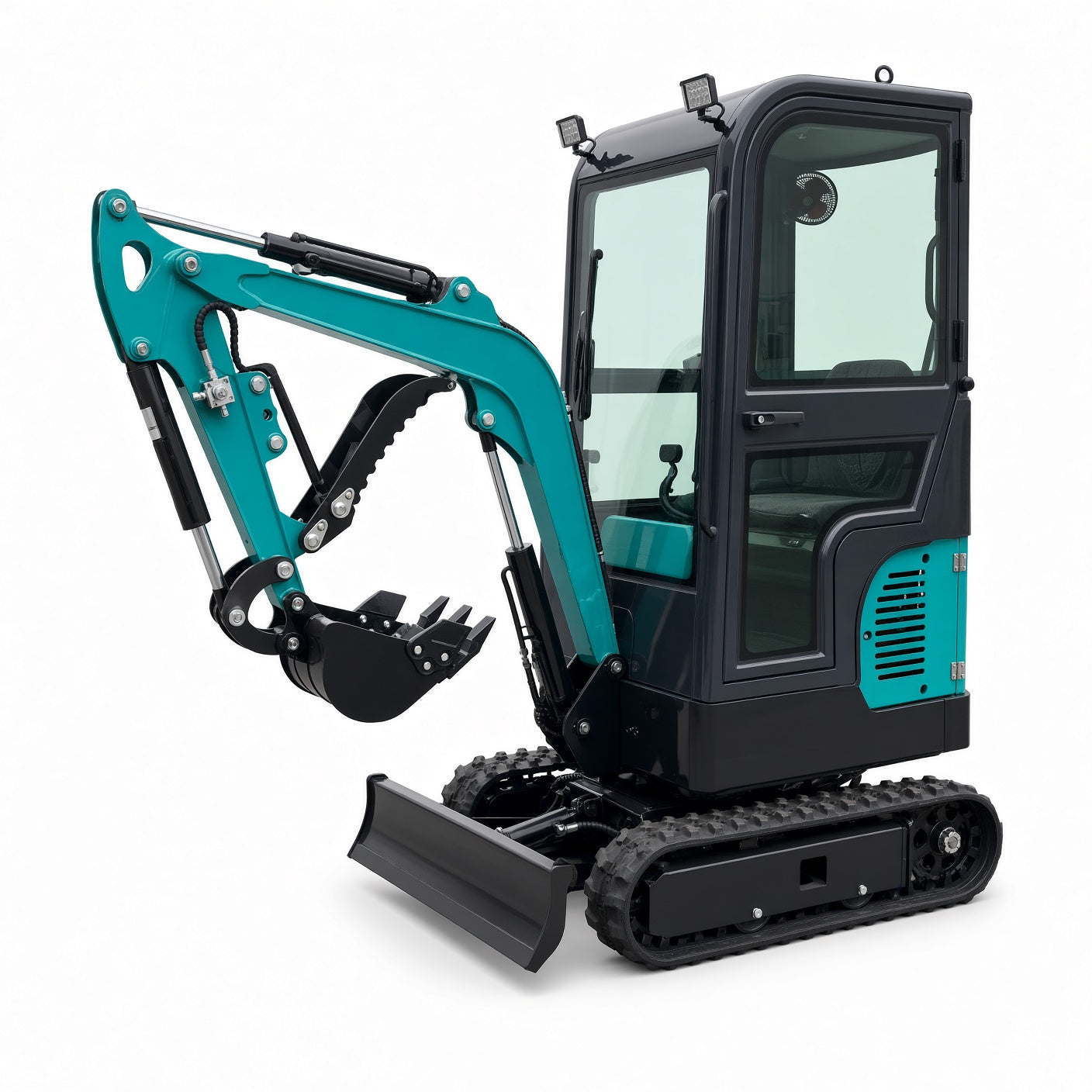

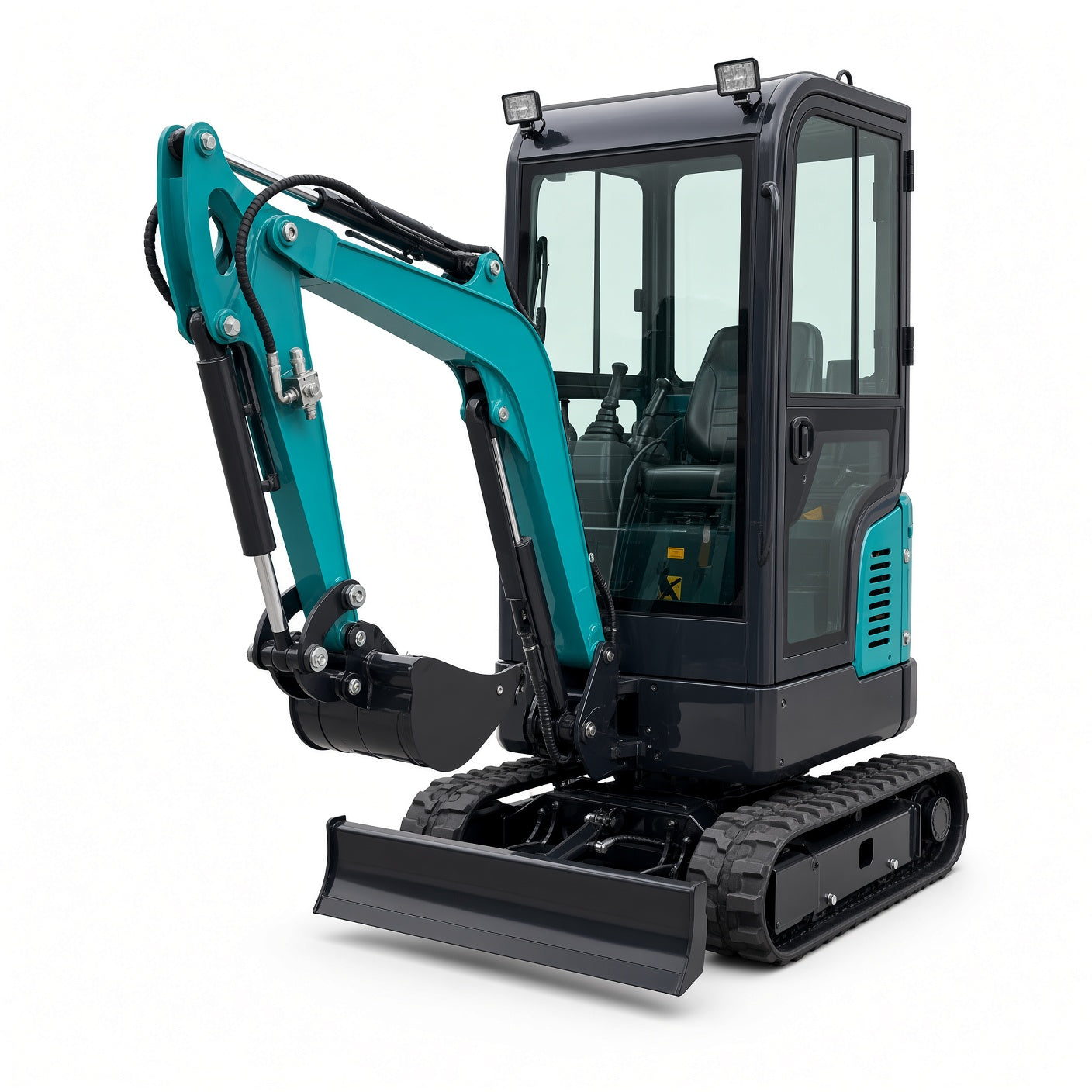

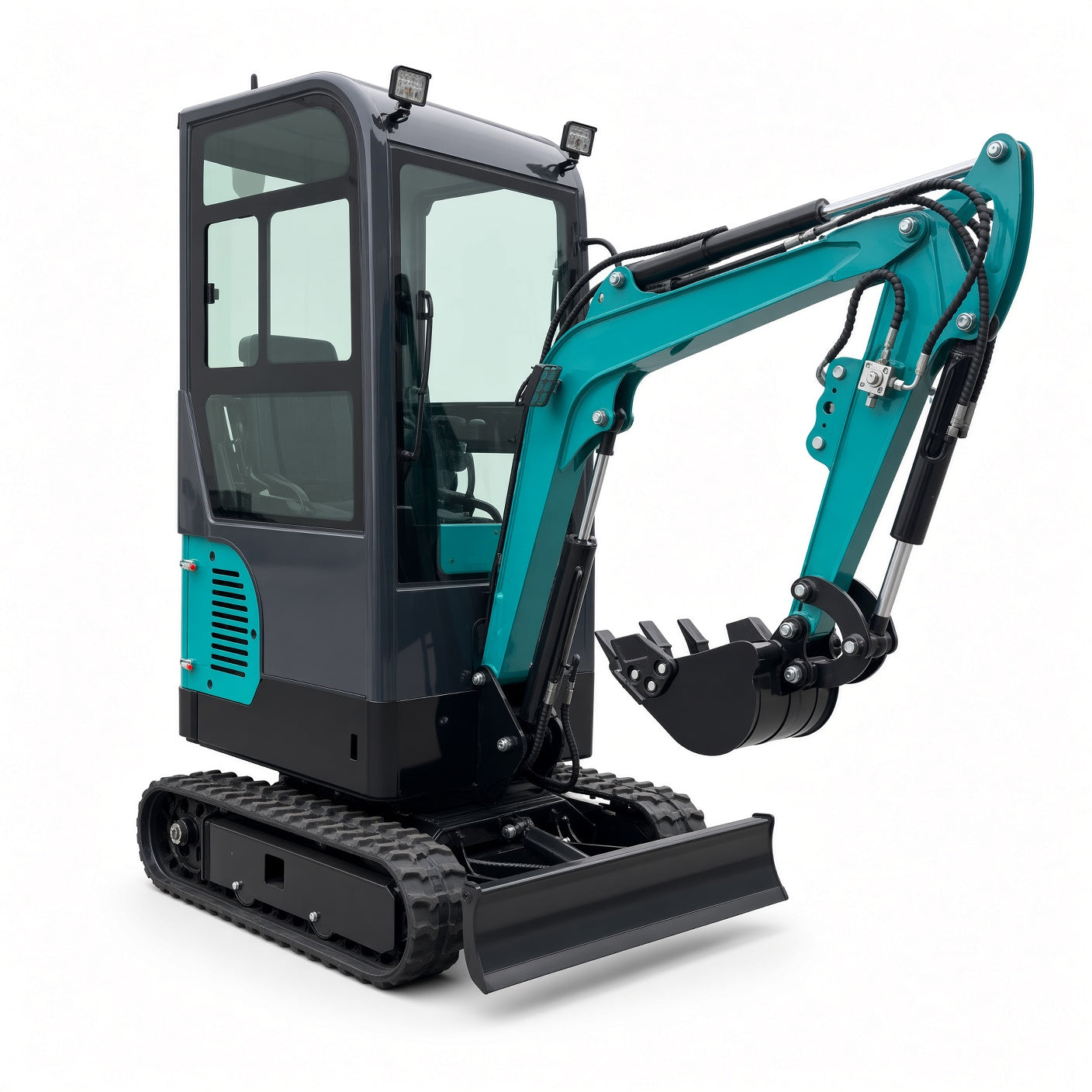

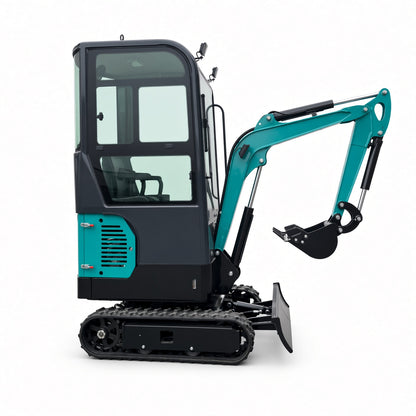

Product Name: QH12-3 Mini Excavator

Product Description:
The QH12-3 is a compact crawler mini excavator powered by a single-cylinder four-stroke air-cooled diesel engine with a rated power of 7.6kW. It offers a max digging depth of 1700mm and max digging height of 2580mm, suitable for mountain land reclamation, indoor demolition, orchard ditching, greenhouse soil turning, rural sewer dredging, and other narrow-space operations.

Key Features:
• Compact and flexible body for various narrow-space operations
• Diesel air-cooled engine with 7.6kW rated power for stable performance and low fuel consumption
• Max digging depth 1700mm and max digging height 2580mm
• Simple and easy-to-learn operation with precise controllable movements

Product Specifications:
Model: QH12-3
Product Type: Mini Excavator
Engine Model: KOOP192F
Engine Type: Single-cylinder, four-stroke, air-cooled, vertical
Displacement: 0.499L
Rated Power: 7.6kW / 3000rpm
Horsepower: 10.3HP
Fuel Type: Diesel
Fuel Consumption: 275g/kWh
Fuel Tank Capacity: 5.5L
Oil Capacity: 1.65L
Overall Dimensions: 2870×1000×2030mm
Track Ground Length: 1200mm
Track Width: 180mm
Max Digging Depth: 1700mm
Max Dumping Height: 1745mm
Max Digging Height: 2580mm
Climbing Capacity: 30°
Travel Speed: 0-2.5km/h
Bucket Digging Force: 11.5kN
Suitable For: Mountain reclamation, Indoor demolition, Orchard ditching, Greenhouse soil turning, Sewer dredging

Product weight: 850 kg
