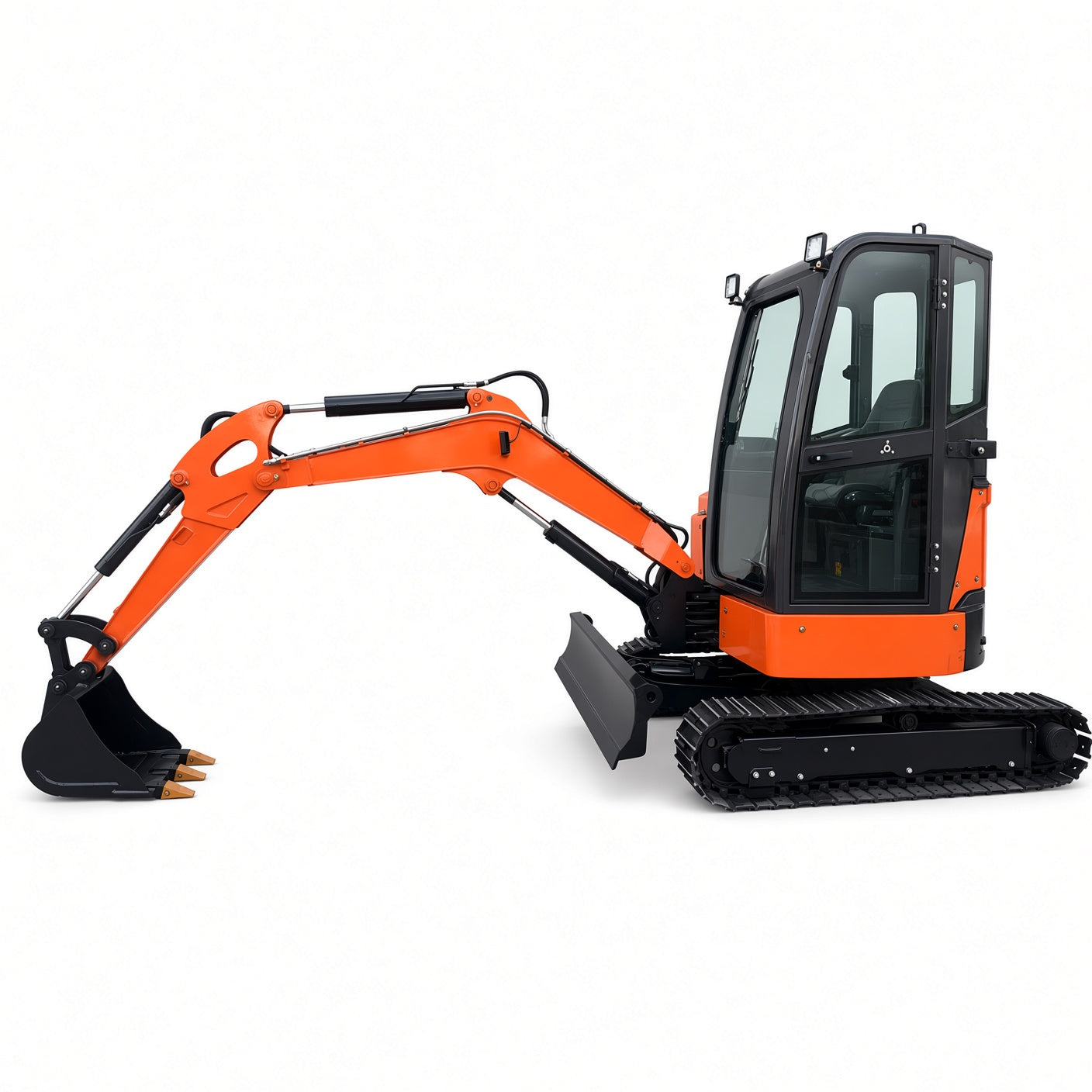

Title: ME35 Mini Excavator 2550kg Yanmar Engine Max Digging Depth 2456mm for Municipal & Landscaping Operations
Product Name: ME35 Mini Excavator
Product Description:

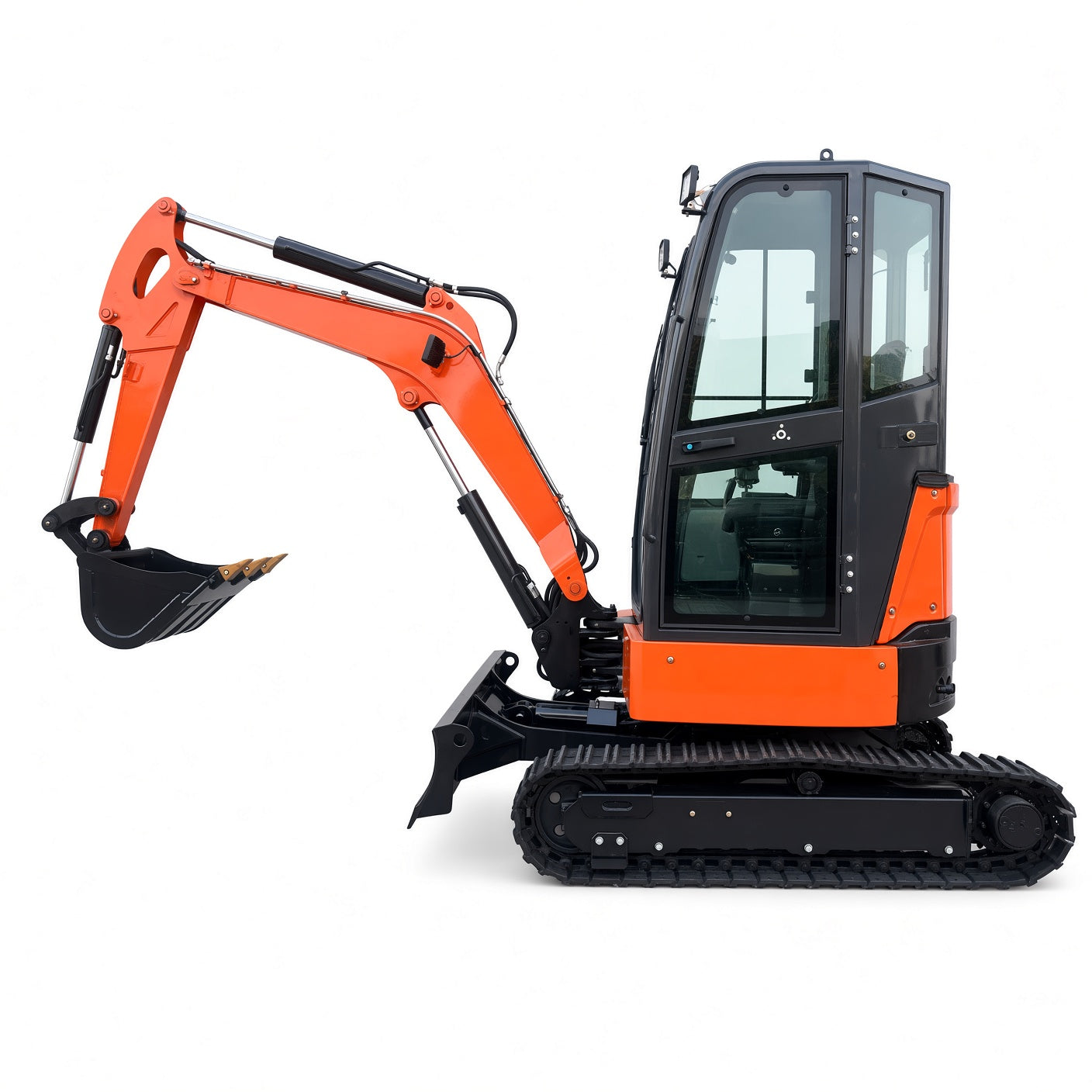

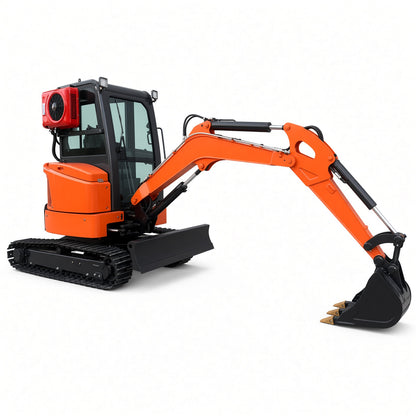

The ME35 is a compact crawler mini excavator with a cab, featuring an operating weight of 2550kg and powered by a Yanmar 3TNV80F engine with a maximum power of 14.6kW. It offers a max digging depth of 2456mm and max digging height of 4155mm, suitable for municipal engineering, landscaping, mountain land reclamation, demolition and crushing, pipeline excavation, and other operations.
Key Features:
• 2550kg body with Yanmar engine for stable and reliable performance
• Max digging depth 2456mm and max digging height 4155mm

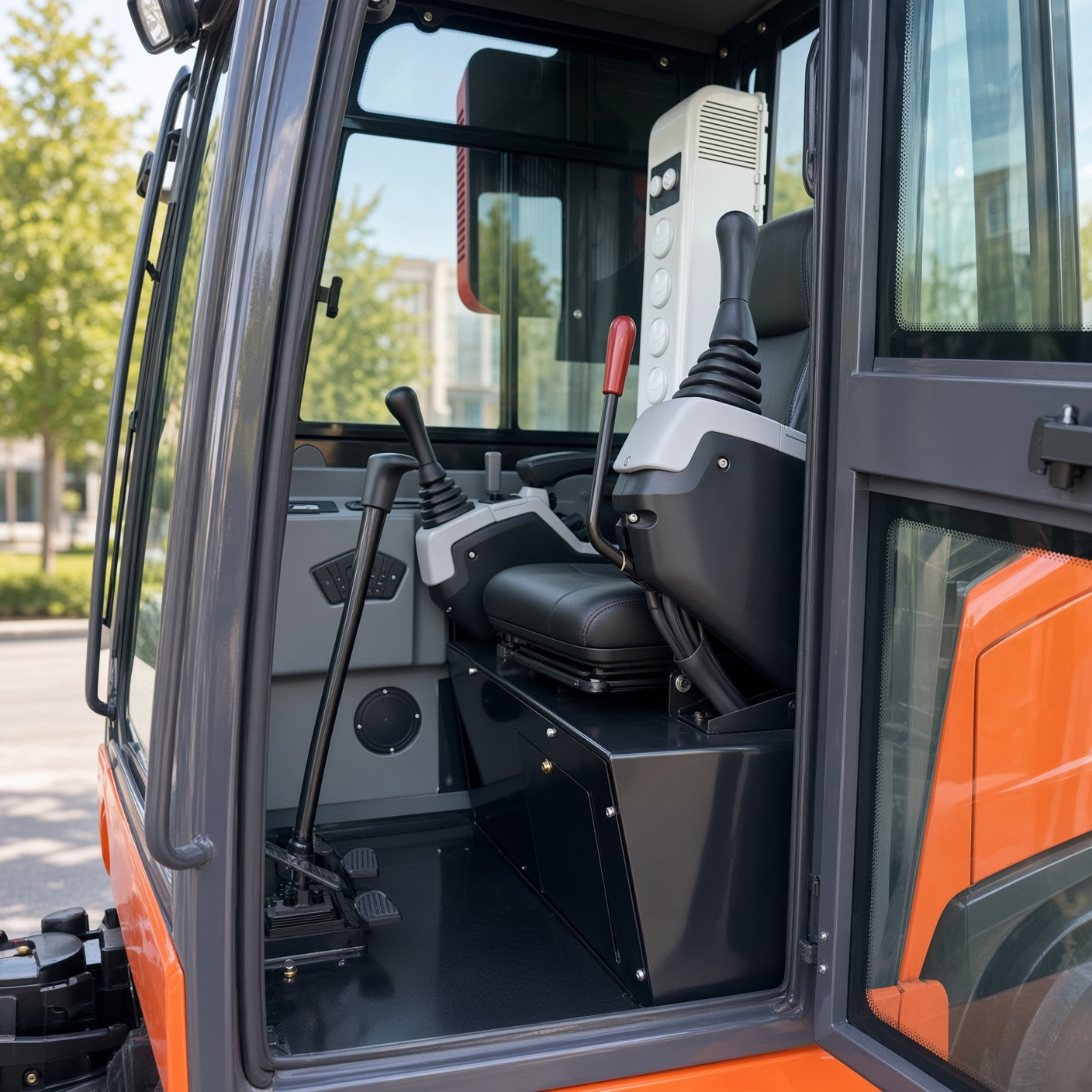

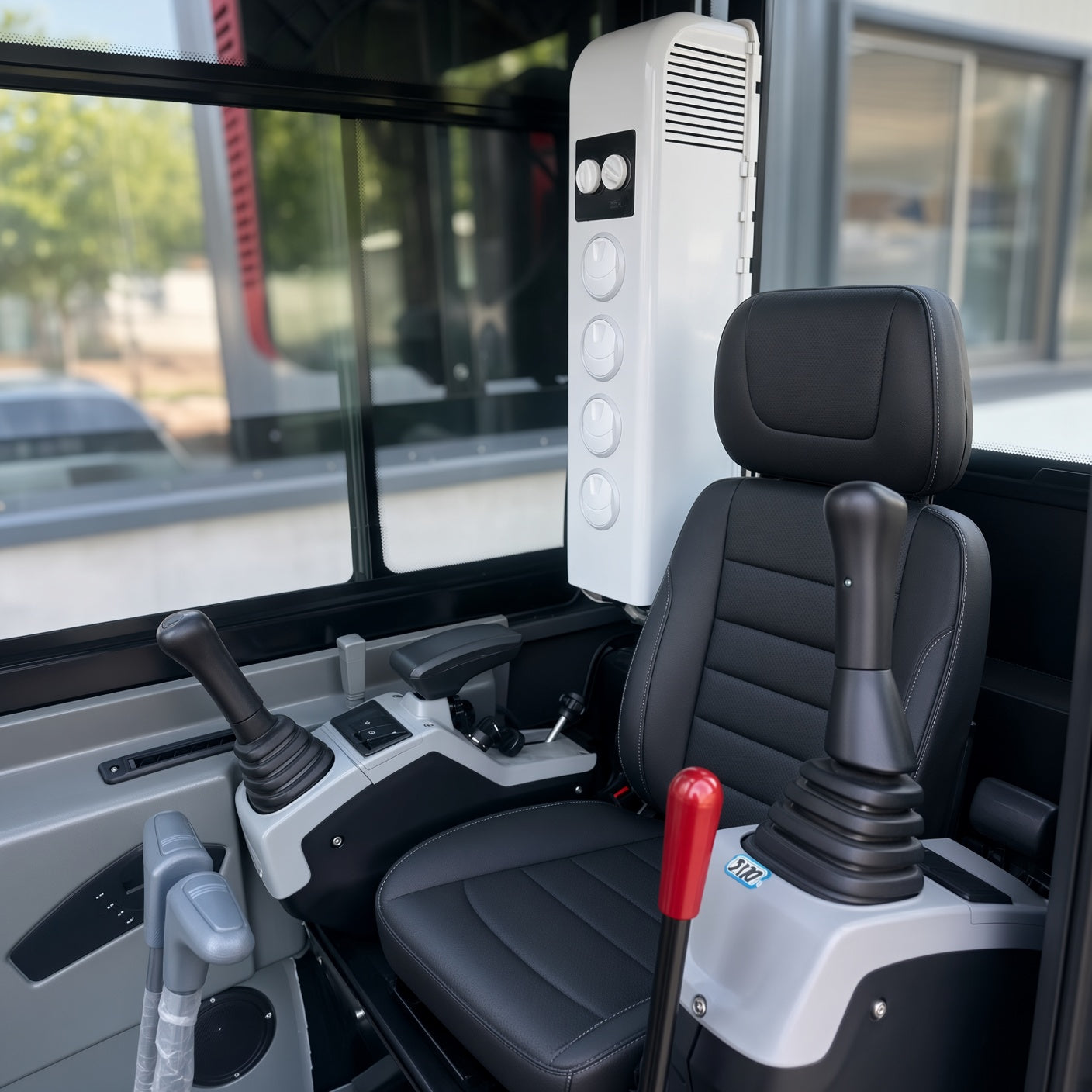

• Equipped with cab for more comfortable operation
• Precise and controllable movements for higher working efficiency
Product Specifications:
Model: ME35
Product Type: Mini Excavator
Engine Brand: Yanmar 3TNV80F
Max Power: 14.6kW
Max Rotational Speed: 2400rpm
Number of Cylinders: 3
Cooling Method: Water-cooled
Fuel Type: Diesel
Fuel Tank Capacity: 31.5L
Hydraulic Oil Tank Capacity: 29L
Operating Weight: 2550kg

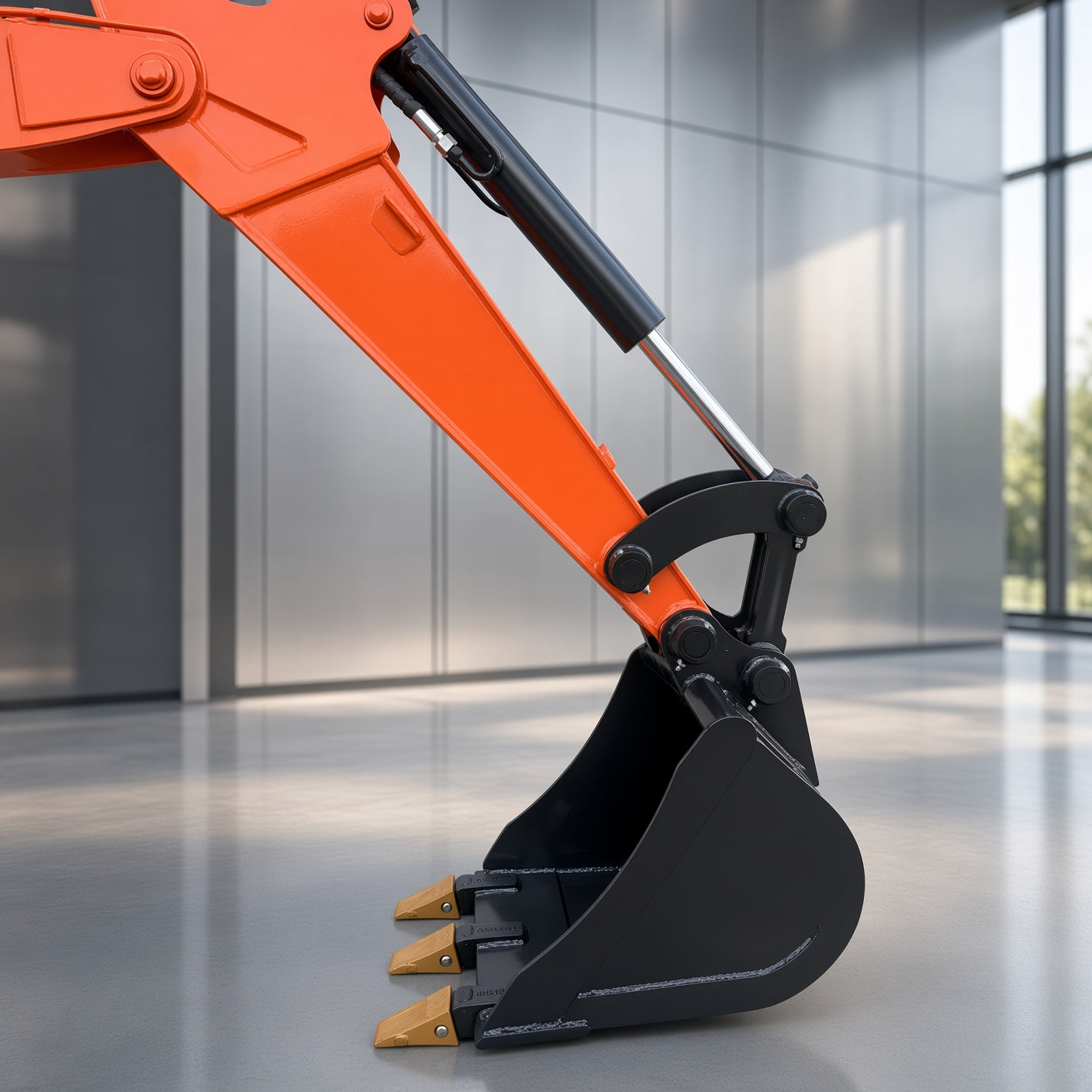

Bucket Capacity: 0.068m³
Max Digging Height: 4155mm
Max Dumping Height: 2840mm
Max Digging Depth: 2456mm
Max Digging Radius: 4520mm
Overall Length: 4077mm
Overall Width: 1500mm
Overall Height: 2450mm

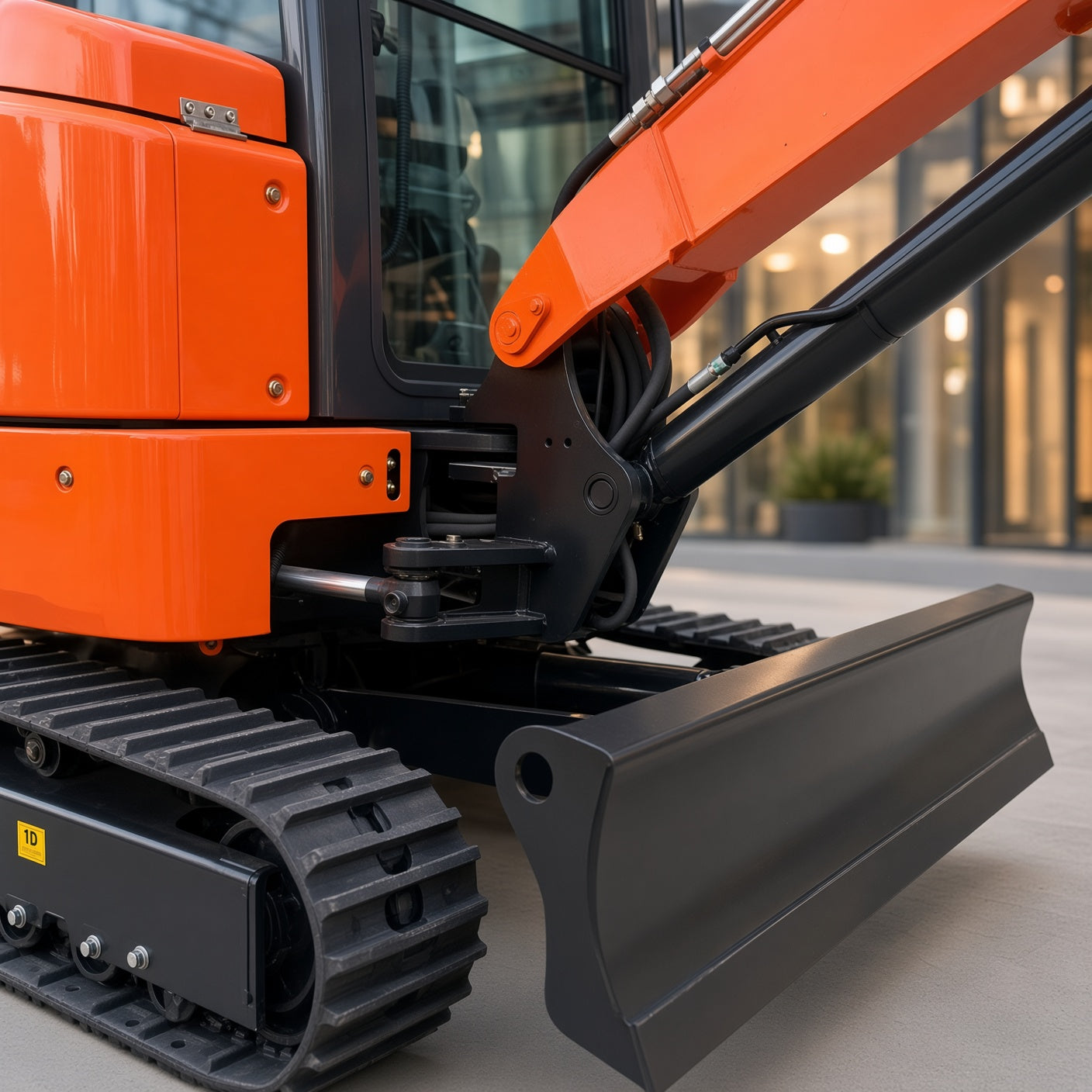

Bulldozer Blade Width/Height: 1500/318mm

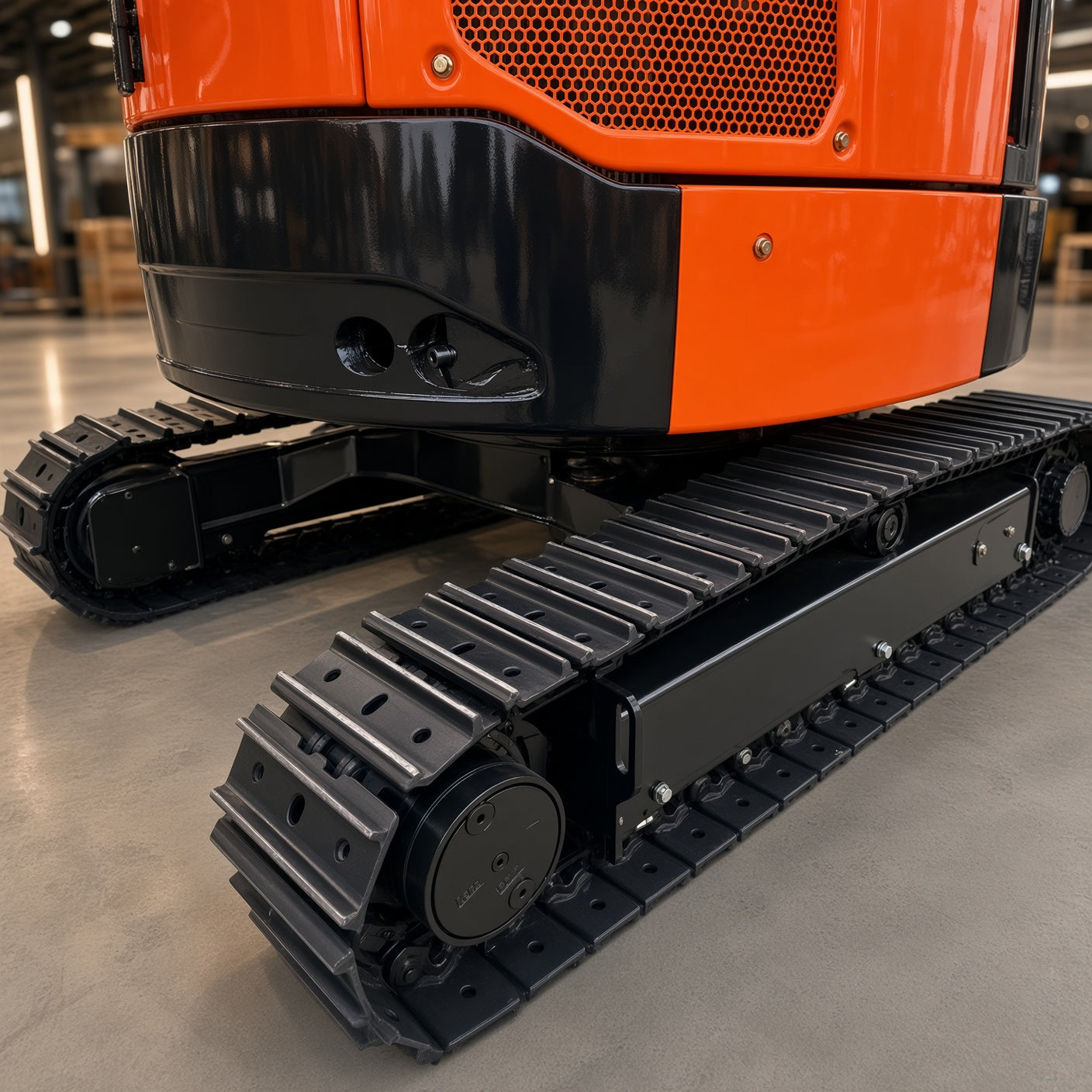

Track Spec: 230×90×43
Travel Speed: 0-1.8km/h
Gradeability: 15%
Side Swing Angle: 45°
Suitable For: Municipal engineering, Landscaping, Mountain reclamation, Demolition, Pipeline excavation
