ME280 Tracked Loader Runtong 420 Gasoline Engine Max Pin Height 1800mm 500kg Load Capacity Mini excavator

Title: ME280 Tracked Loader Runtong 420 Gasoline Engine Max Pin Height 1800mm 500kg Load Capacity

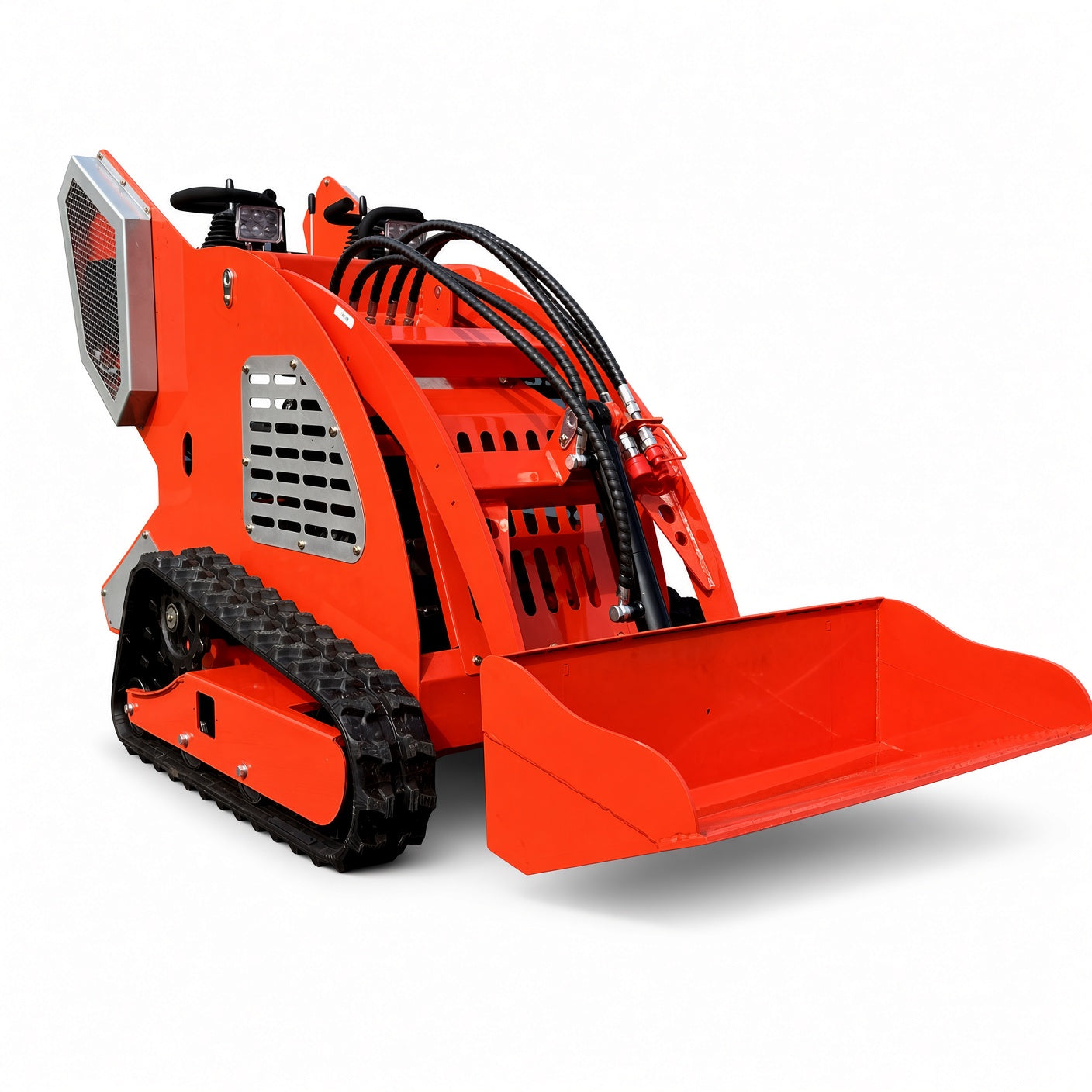

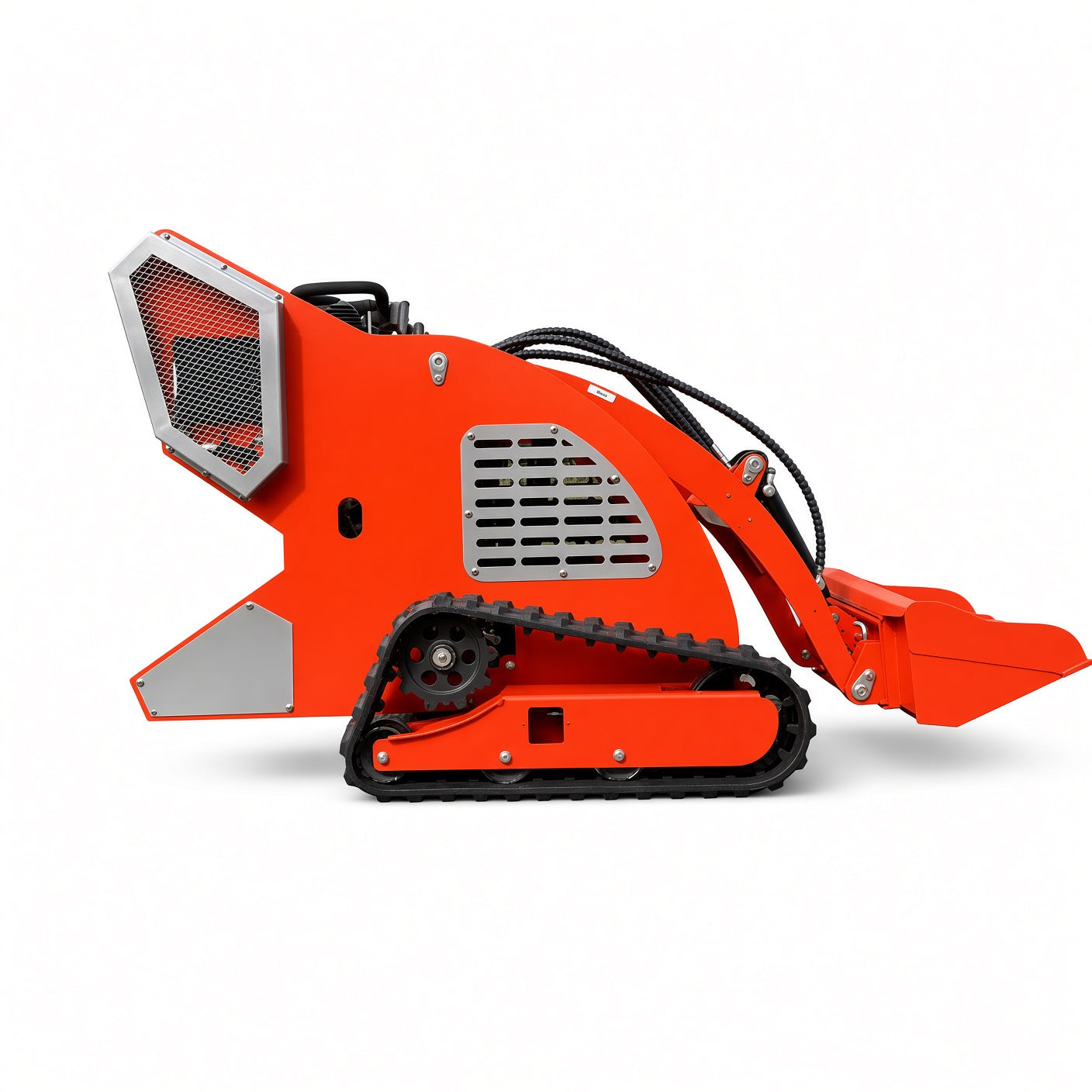

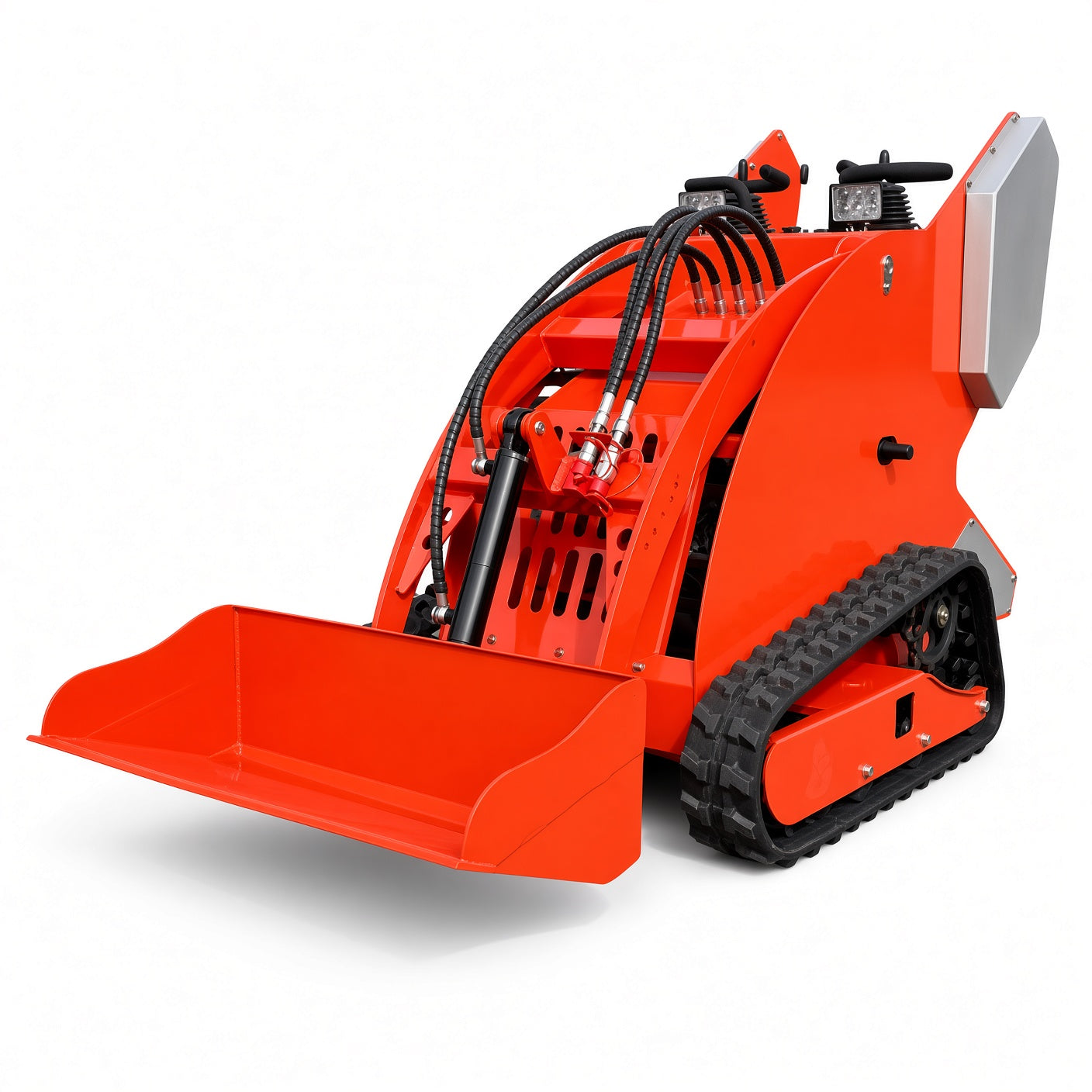

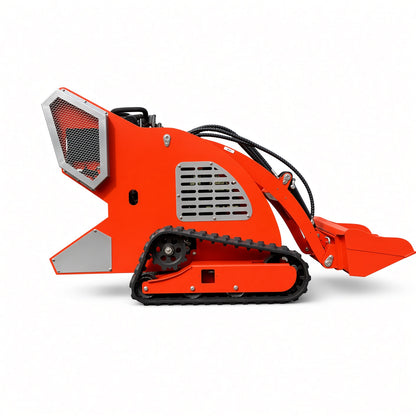

Product Name: ME280 Tracked Loader

Product Description:
The ME280 is a compact tracked skid steer loader powered by a Runtong 420 single-cylinder air-cooled gasoline engine with a maximum power of 8.5kW. It features a max pin height of 1800mm, max dumping height of 1700mm, and a load capacity of 500kg with a 0.15m³ bucket, suitable for municipal, landscaping, agricultural, and narrow-space material handling operations.

Key Features:
• Runtong 420 single-cylinder air-cooled gasoline engine with 8.5kW max power
• Max pin height 1800mm and max dumping height 1700mm
• 500kg load capacity with 0.15m³ bucket
• Tracked design with zero-turn capability for wide application range

Product Specifications:
Model: ME280
Product Type: Tracked Loader
Engine Brand: Runtong
Engine Model: 420
Maximum Power: 8.5kW
Number of Cylinders: 1
Maximum Horsepower: 11.5ps
Maximum Rotating Speed: 3600r/min
Displacement: 420cc
Cooling Method: Air-cooled
Fuel Type: 92-octane gasoline
Hydraulic Pressure: 22MPa
Cycle Time: Lifting 1s / Lowering 1s
Load Capacity: 500kg
Bucket Capacity: 0.15m³
Travel Speed: 0-6km/h
Operating Weight: 200kg
Total Weight: 550kg
Hydraulic Pump Flow Rate: 75.6L
Hydraulic Tank Capacity: 12L
Fuel Tank Capacity: 5L
Multi-way Valve: 3+2 Manual
Maximum Working Height: 2350mm
Maximum Pin Height: 1800mm
Maximum Dumping Height: 1700mm
Maximum Lifting Capacity: 200kg
Reach at Peak Height: 680mm
Bucket Swing Angle: 120°
Bucket Dumping Angle: 30°
Overall Height: 1200mm
Overall Width: 1000mm
Bucket Width: 920mm
Overall Length (Including Bucket): 2150mm
Rubber Track: 150×72×34cm
Turning Radius: Stay in place (zero turn)
Suitable For: Municipal, Landscaping, Agriculture, Narrow-space material handling
