Title: ME16 Mini Excavator 1000kg Diesel Engine Max Digging Depth 1800mm for Narrow Space Operations

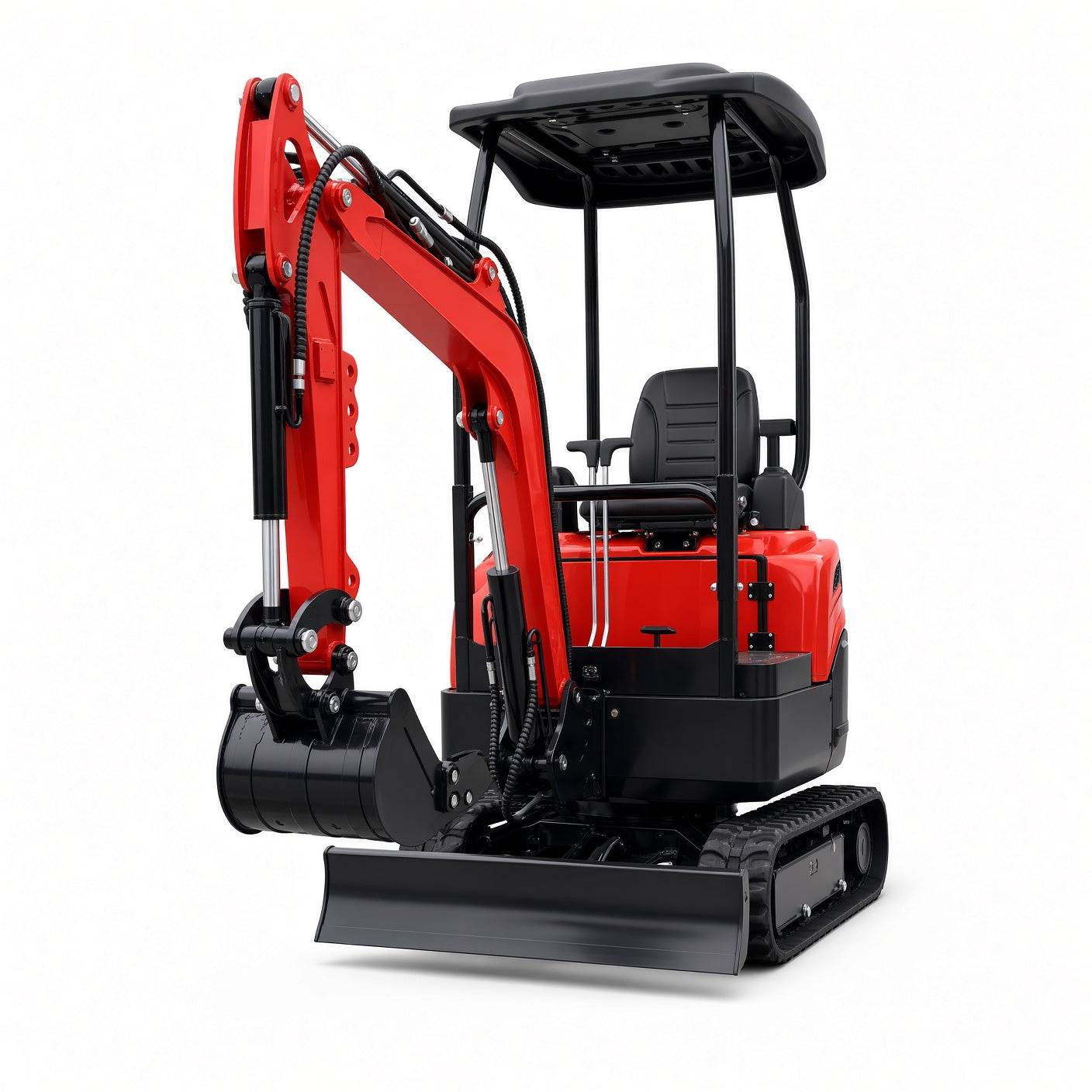

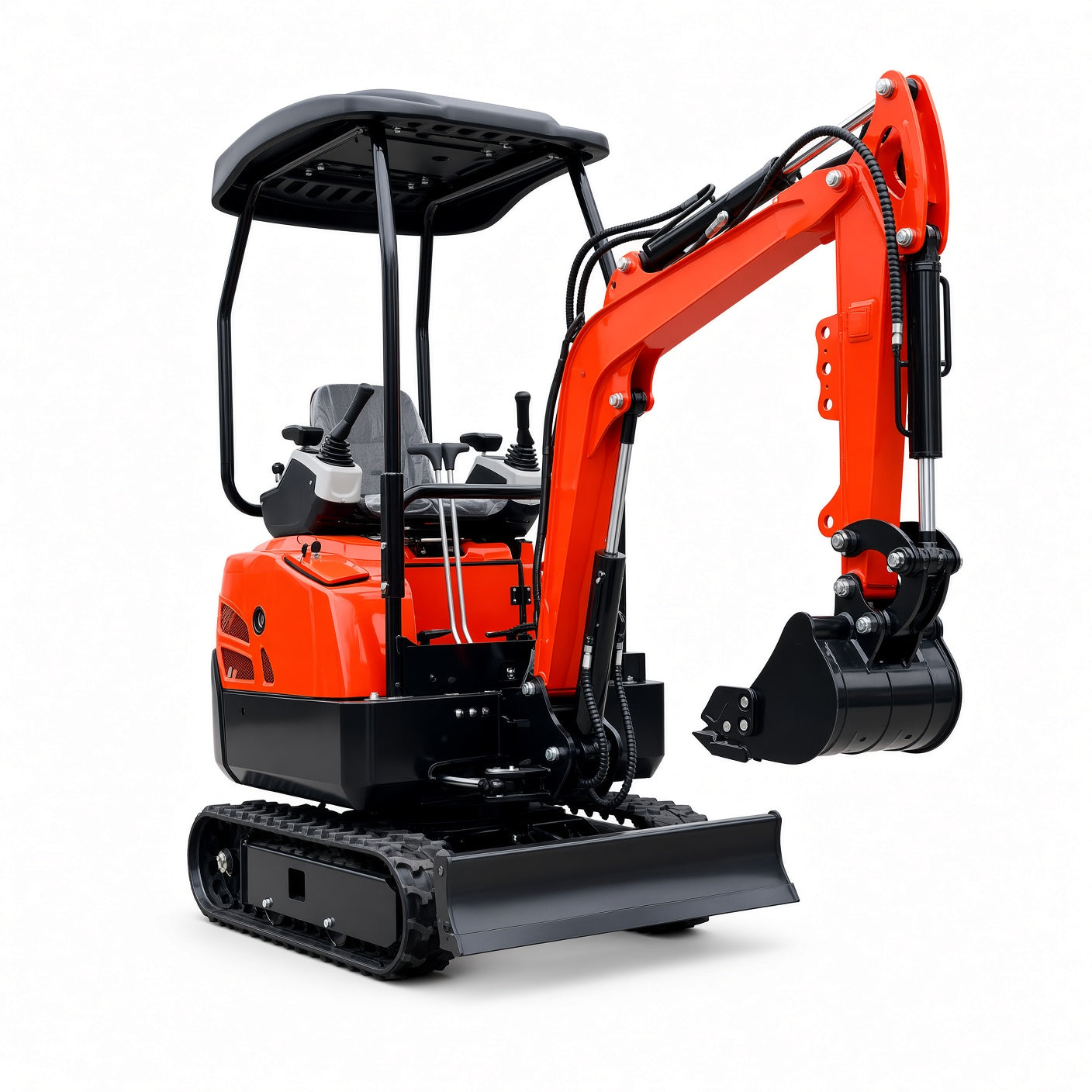

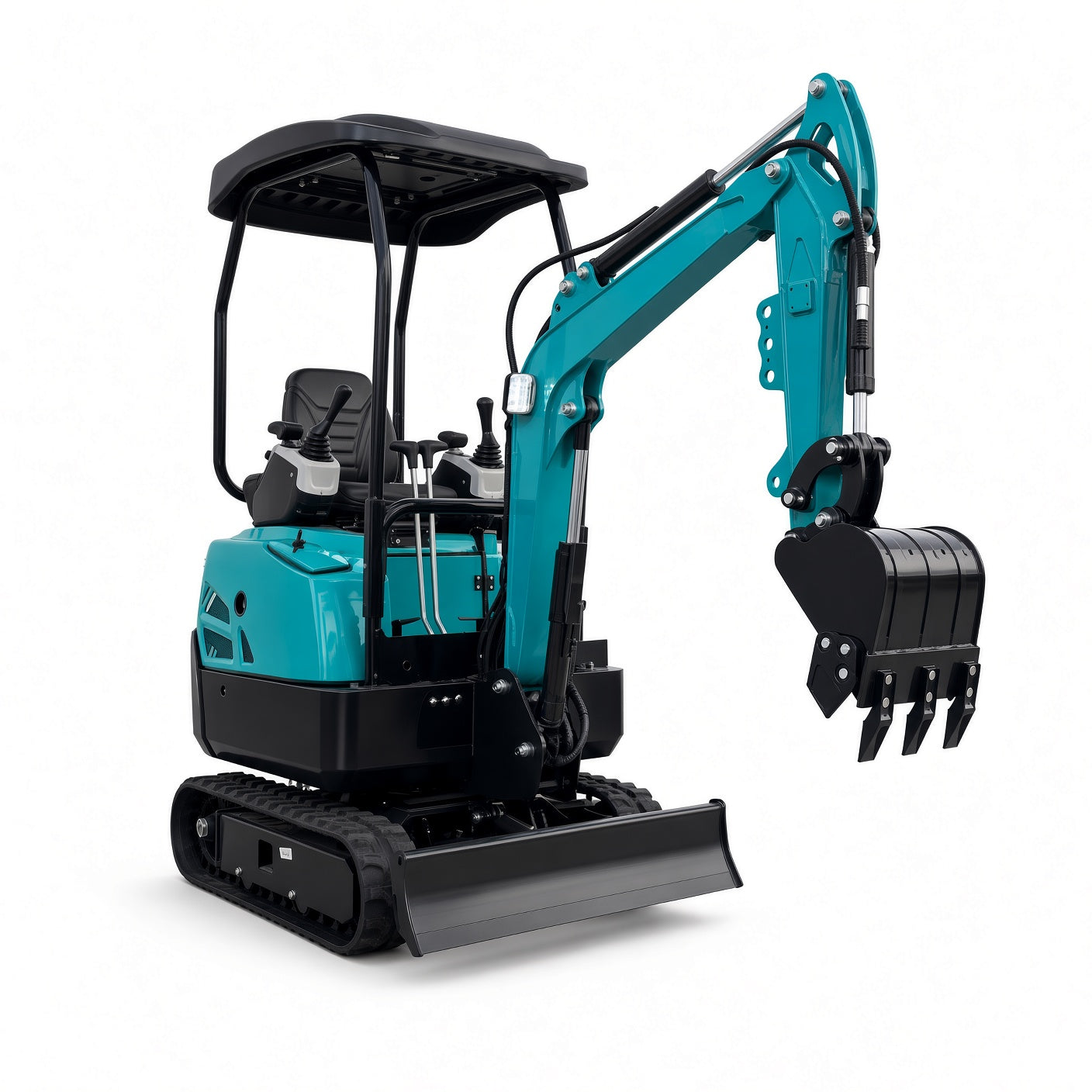

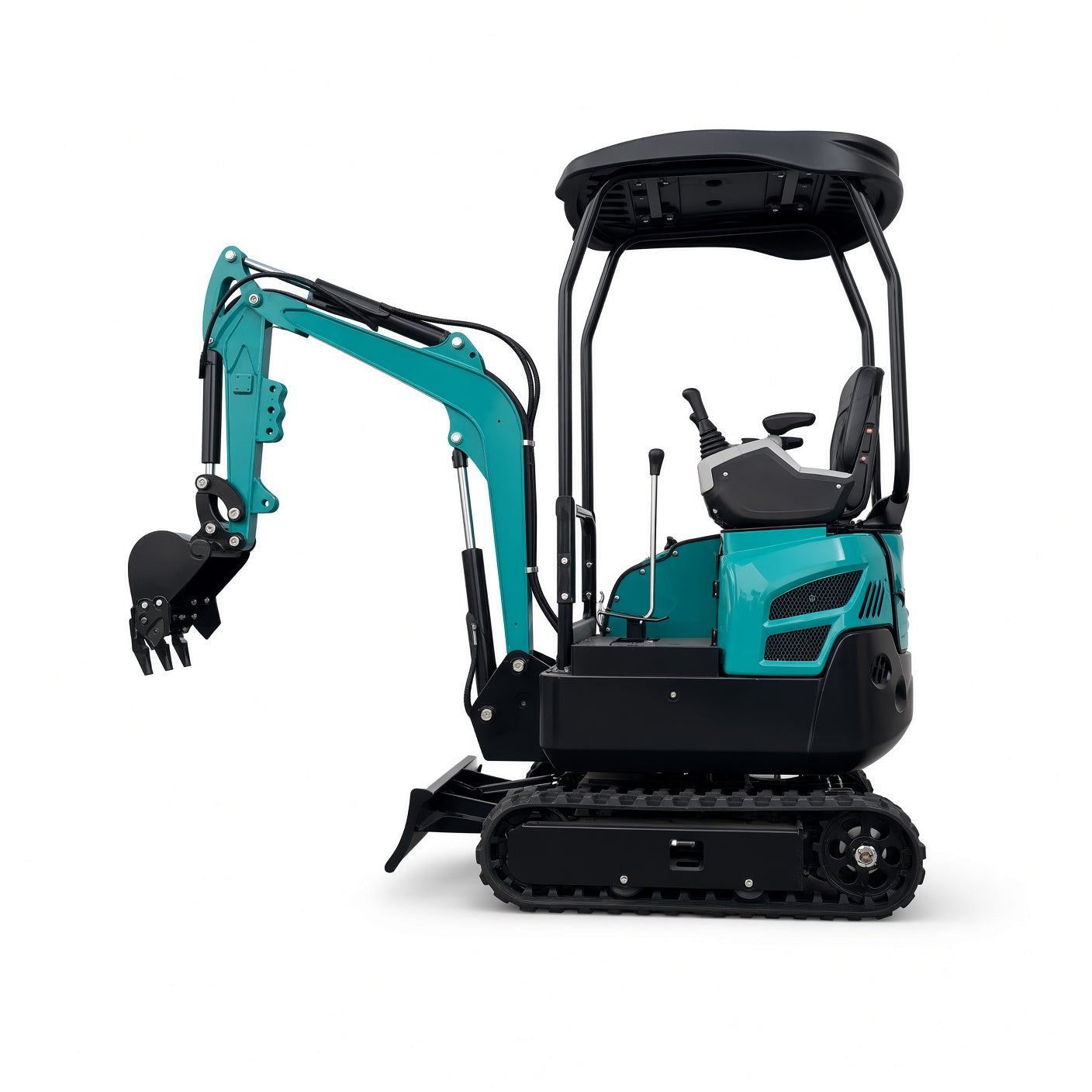

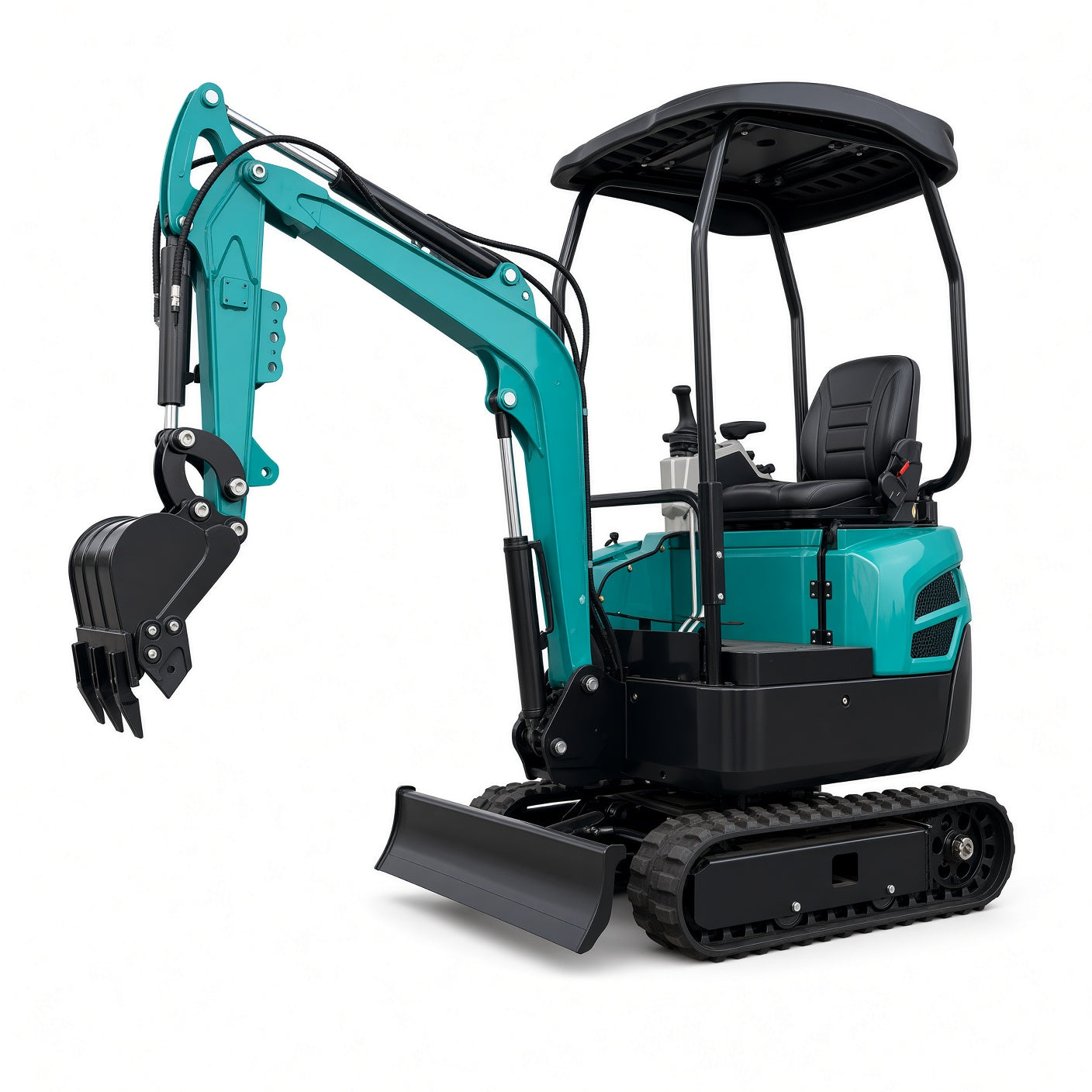

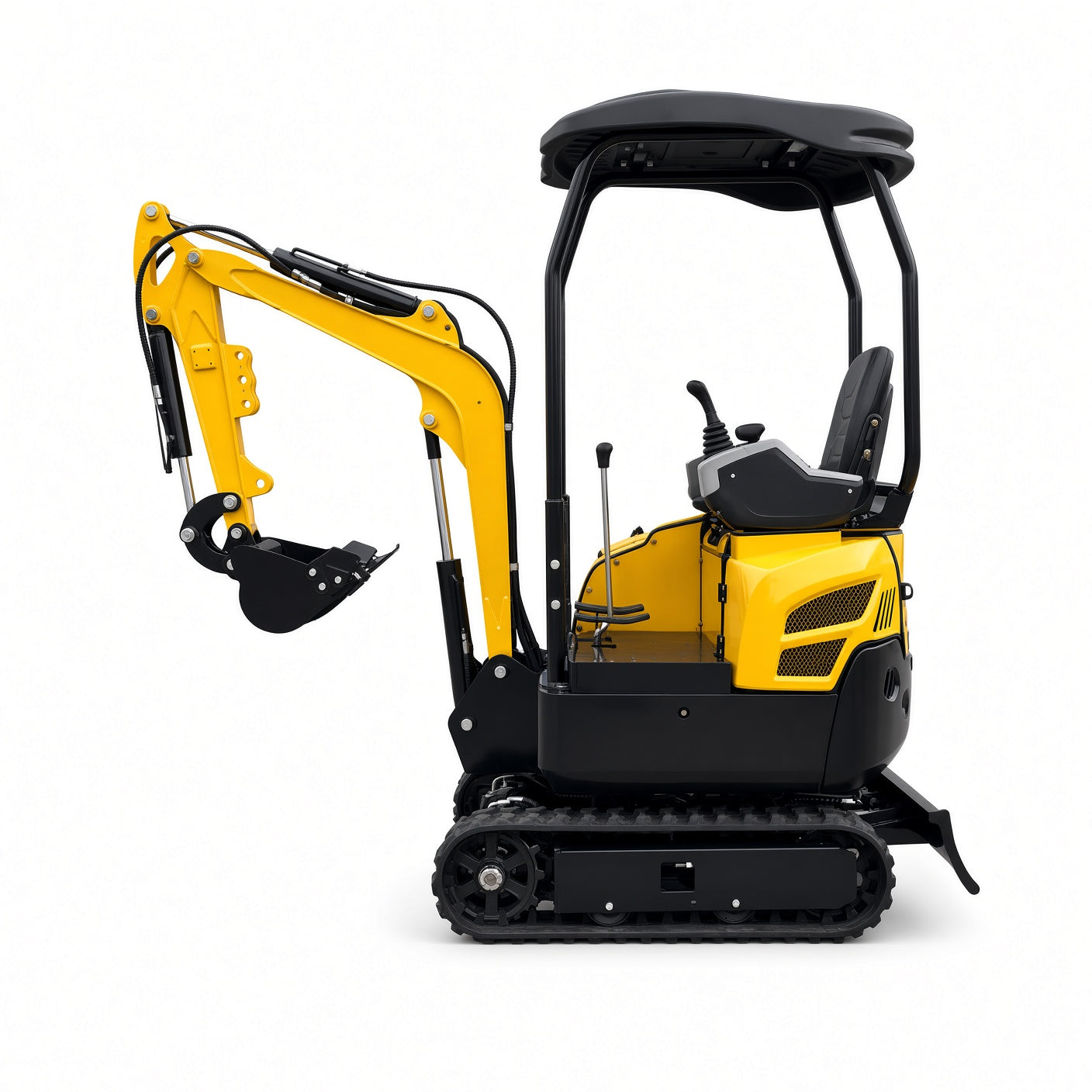

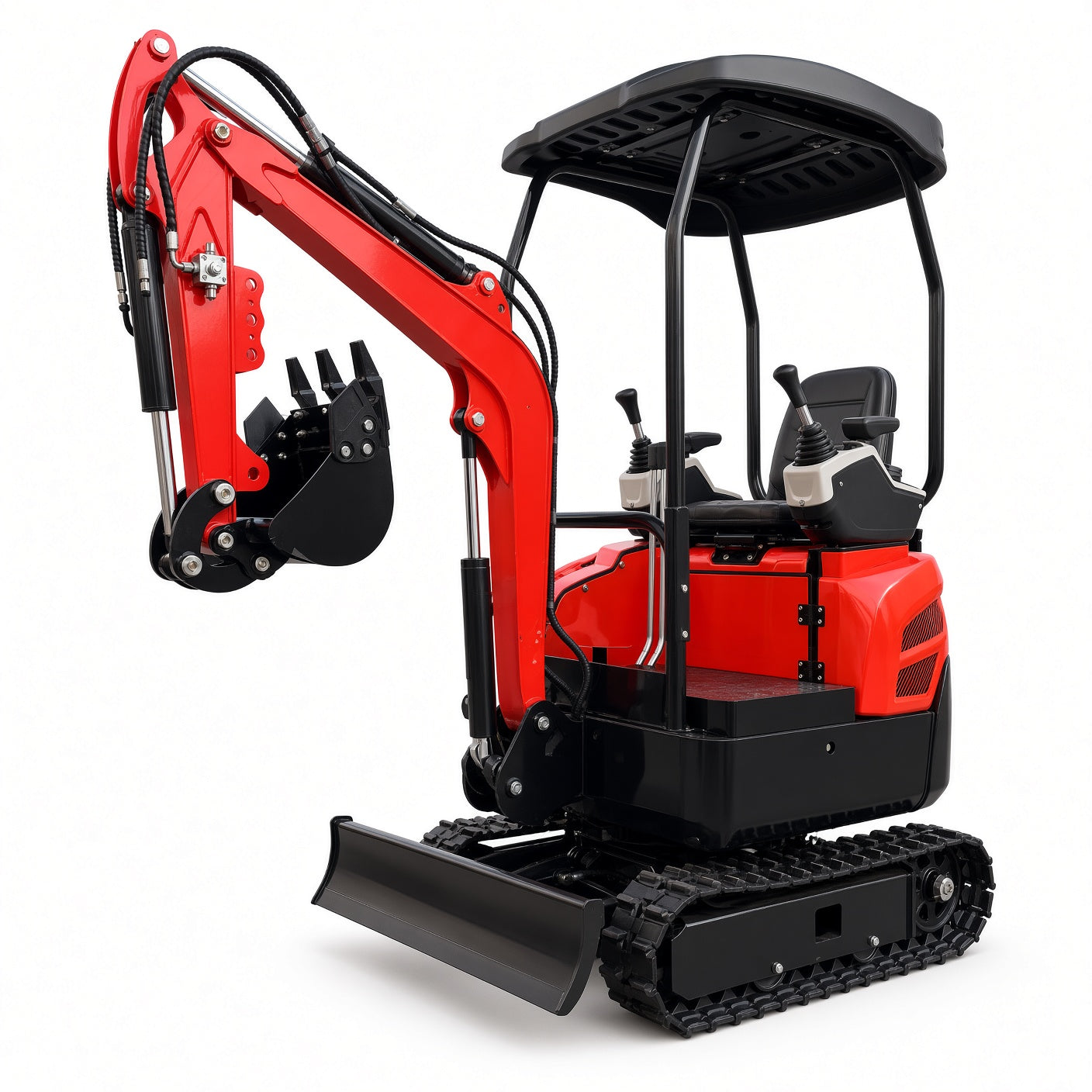

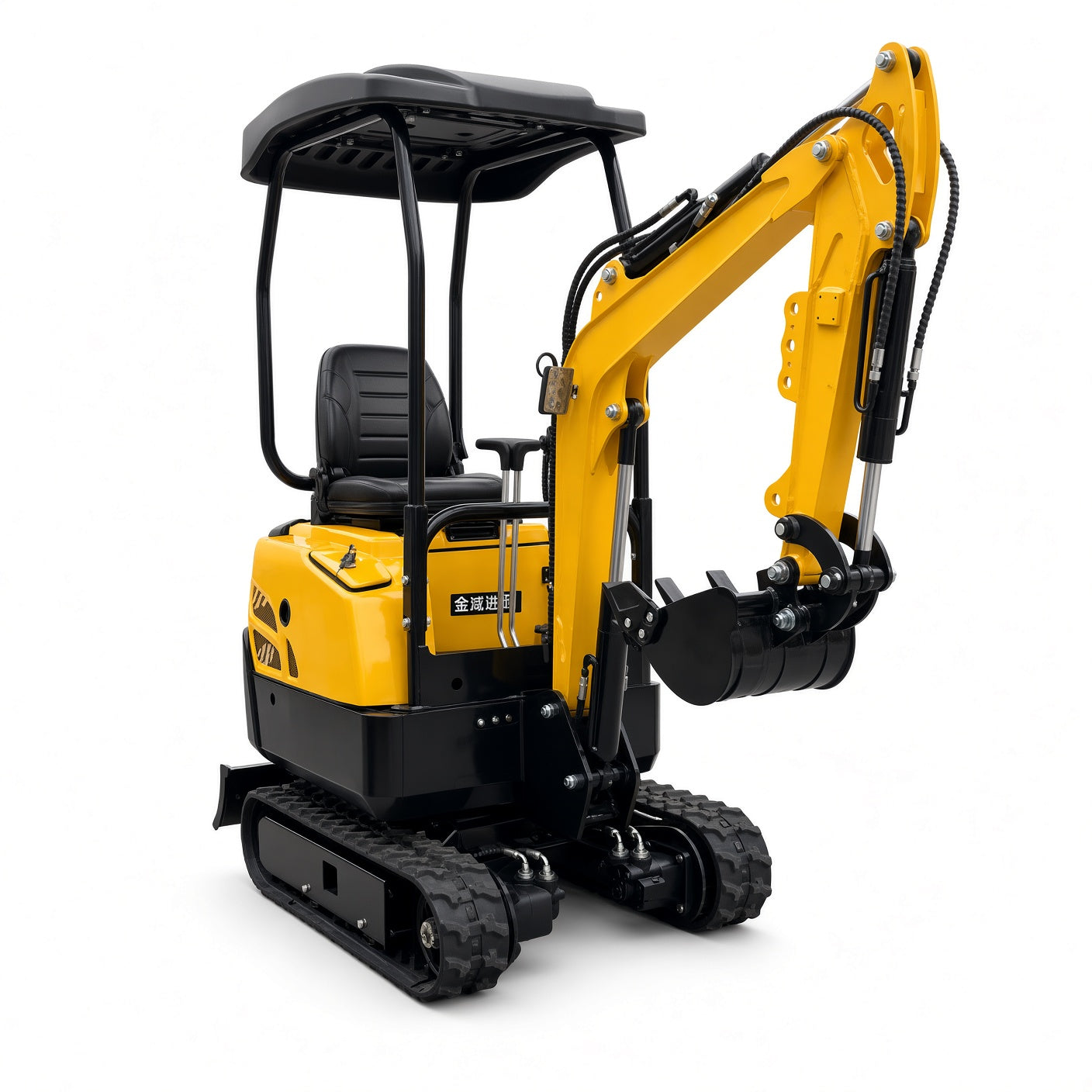

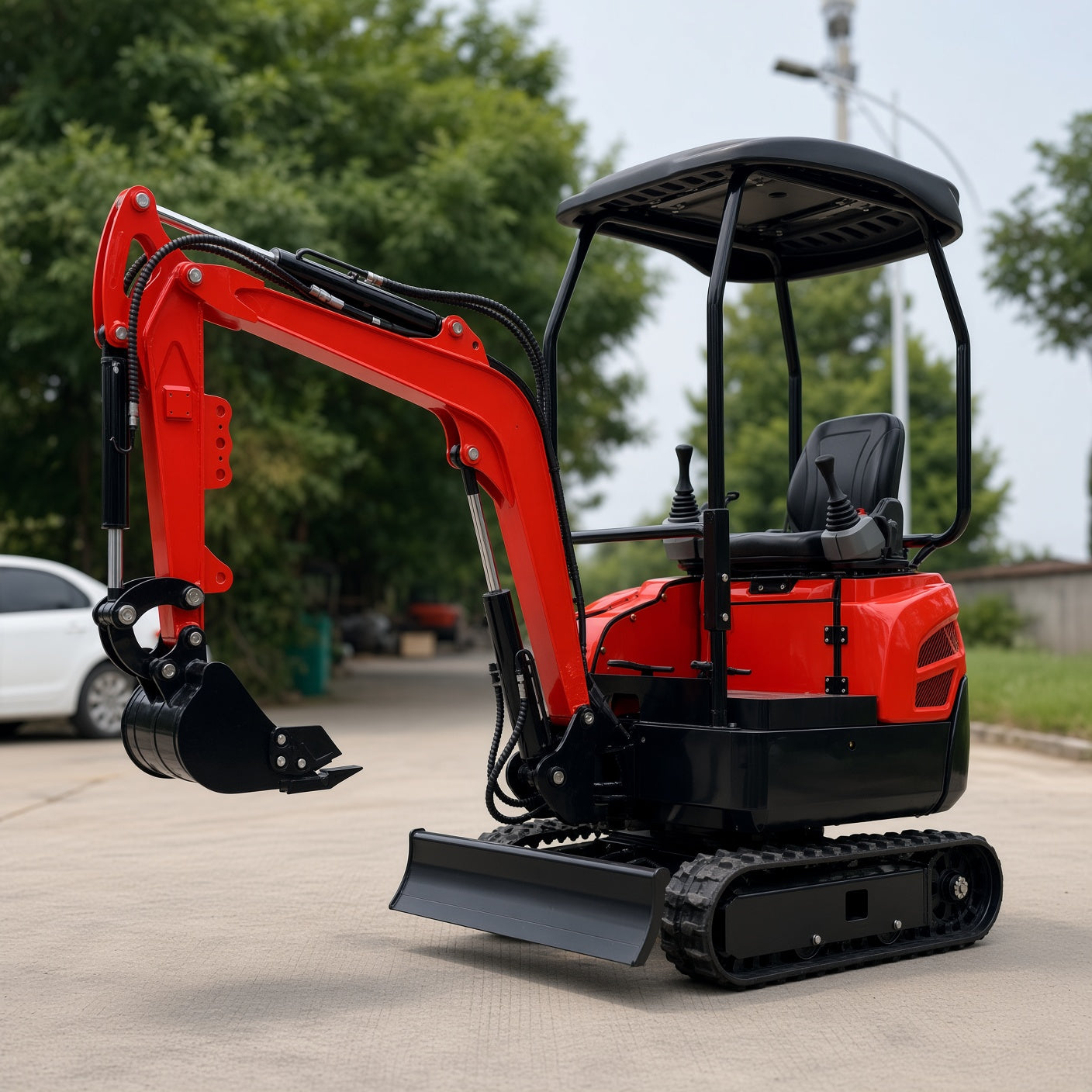

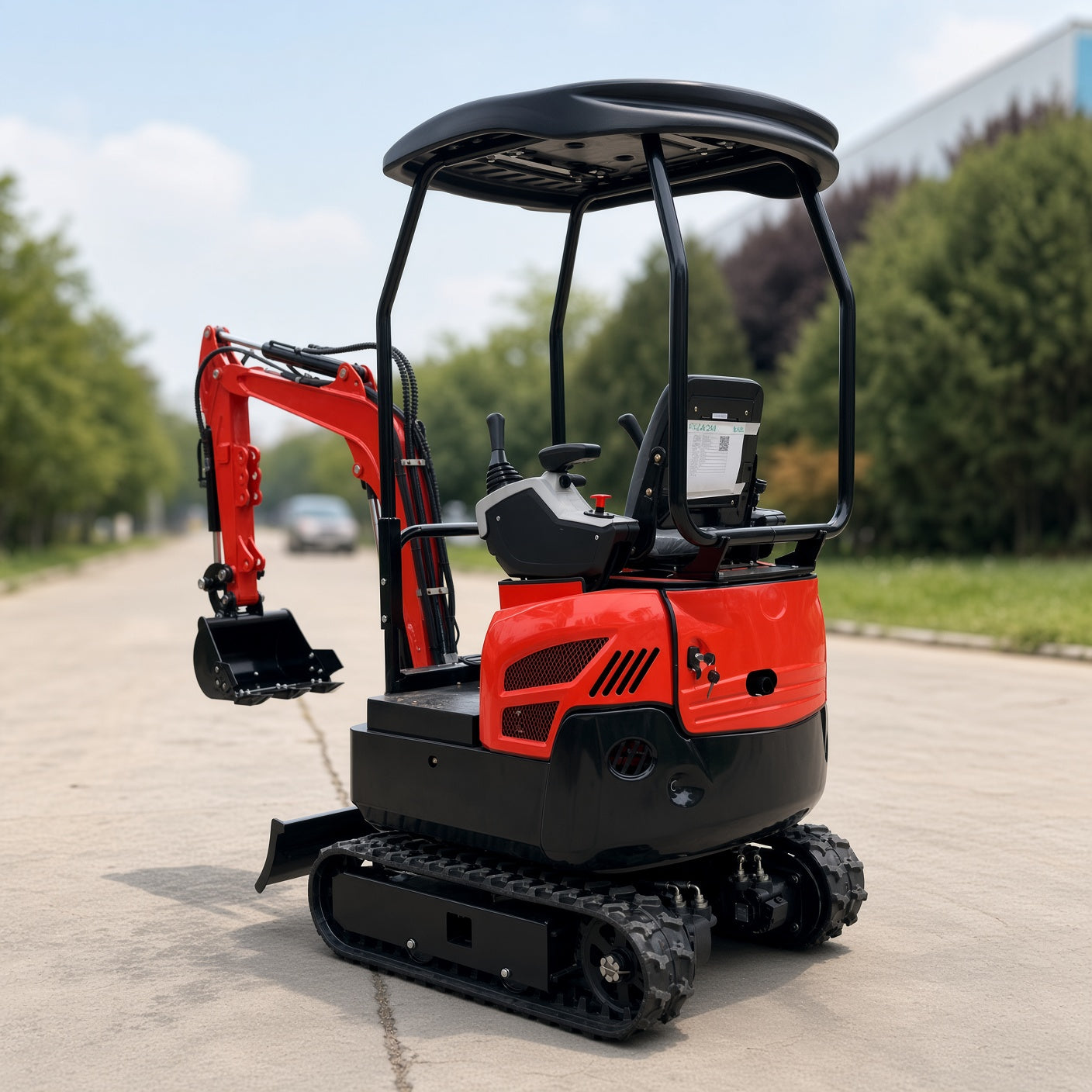

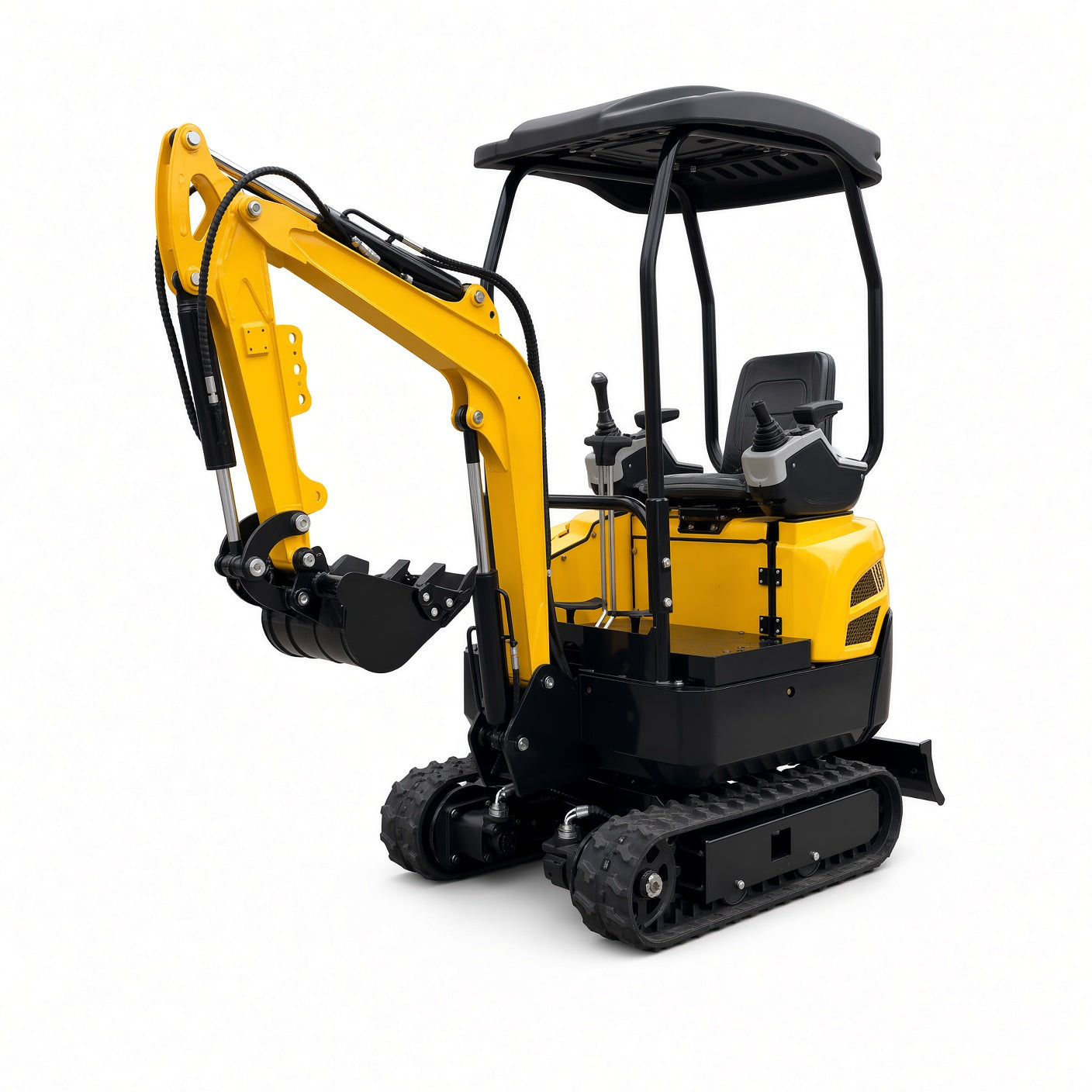

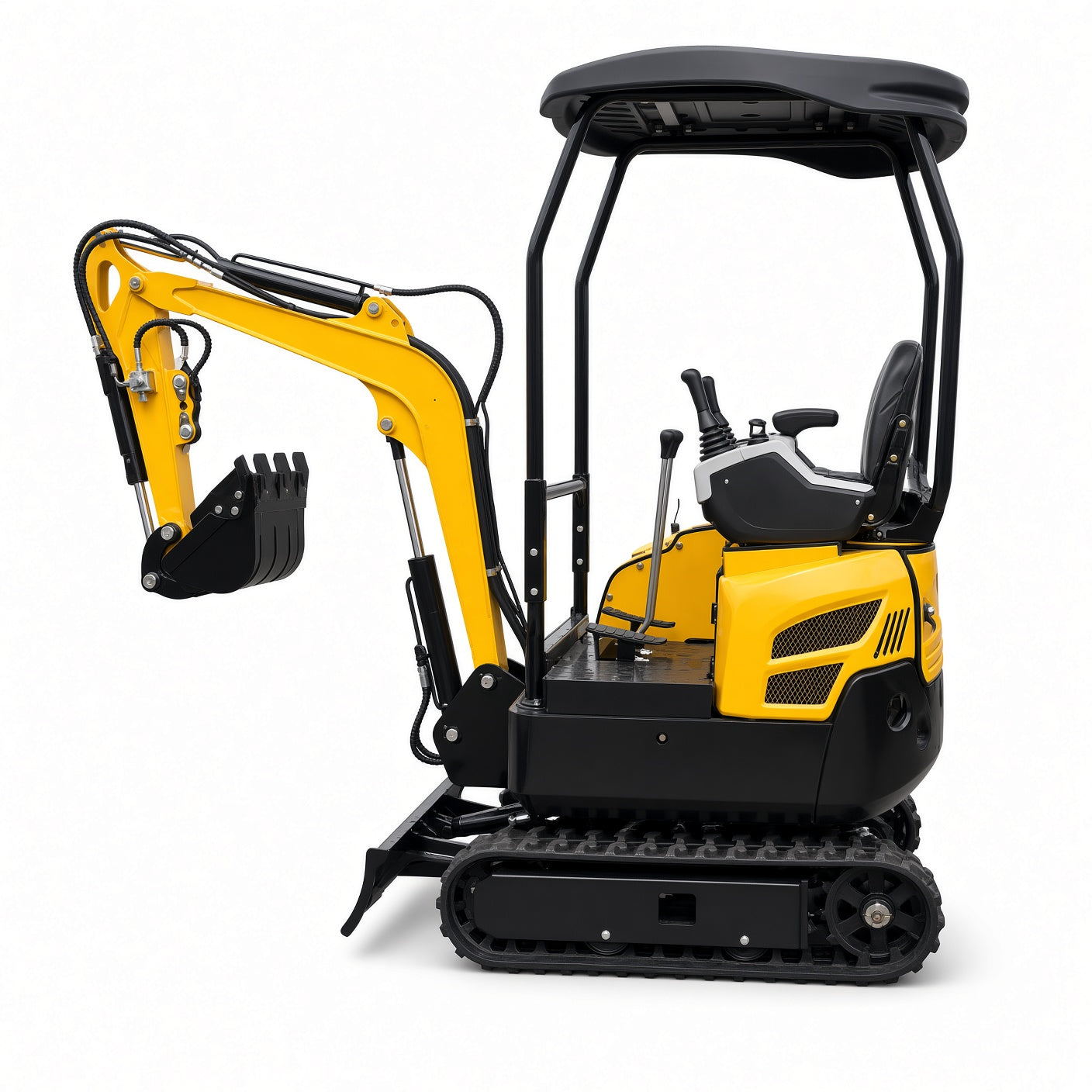

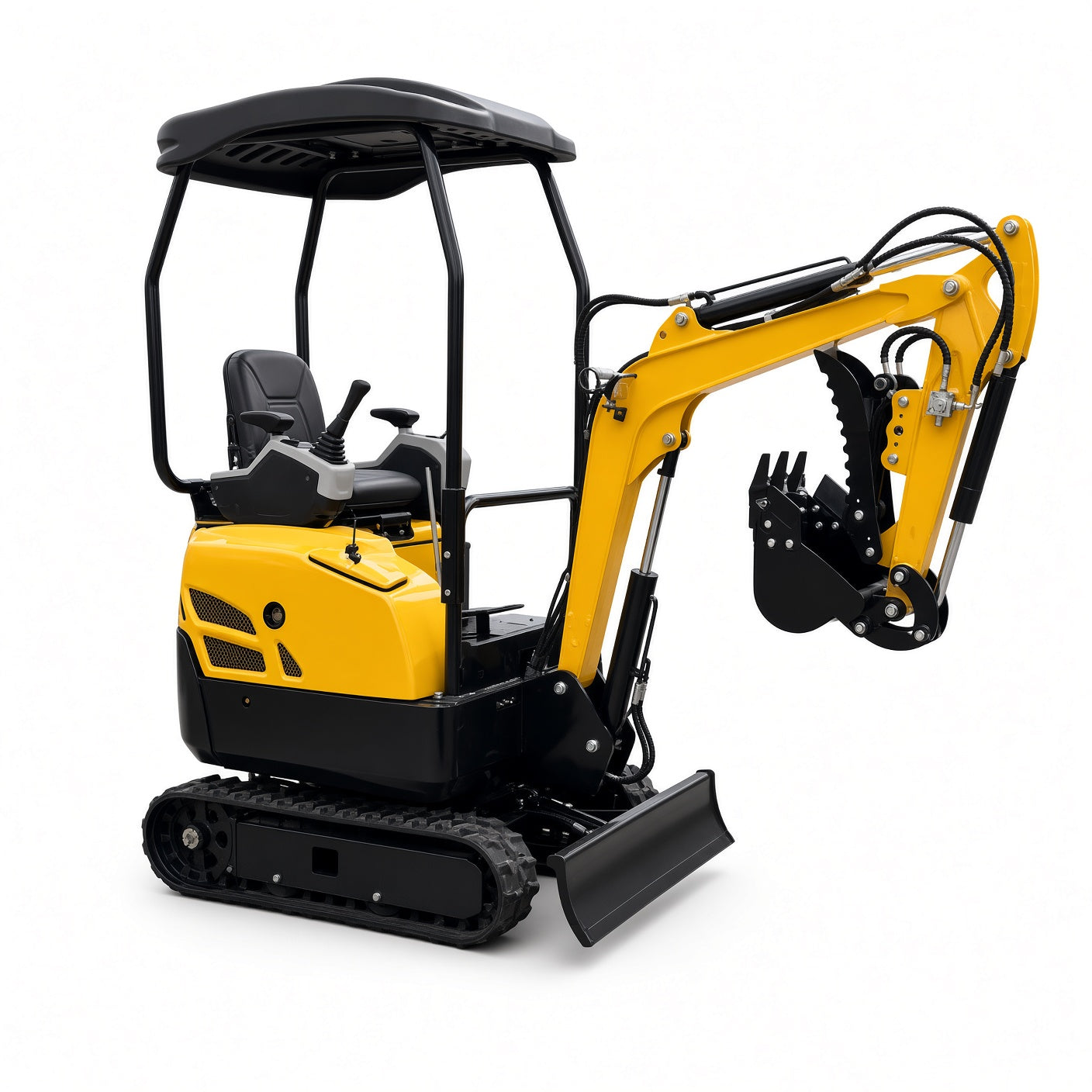

Product Name: ME16 Mini Excavator
Product Description:
The ME16 is a compact crawler mini excavator with an operating weight of 1000kg, powered by a single-cylinder four-stroke air-cooled diesel engine with a rated power of 7.6kW. It offers a max digging depth of 1800mm and max digging height of 2580mm, suitable for mountain land reclamation, municipal engineering, landscaping, water and electricity installation, orchard ditching, rural sewer dredging, and other operations.
Key Features:
• 1000kg body for flexible operation in various narrow spaces
• Diesel air-cooled engine with 7.6kW rated power for stable performance and low fuel consumption
• Max digging depth 1800mm and max digging height 2580mm
• Simple and easy-to-learn operation with precise controllable movements
Product Specifications:
Model: ME16
Product Type: Mini Excavator
Engine Model: KOOP 192F
Engine Type: Single-cylinder, four-stroke, air-cooled, vertical
Displacement: 0.499L
Rated Power: 7.6kW / 3000rpm
Horsepower: 10.3HP
Fuel Type: Diesel
Fuel Consumption: 275g/kWh
Fuel Tank Capacity: 5.5L
Oil Capacity: 1.65L
Operating Weight: 1000kg
Overall Dimensions: 2870×1000×2230mm
Track Ground Length: 1200mm
Track Width: 180mm
Max Digging Depth: 1800mm
Max Dumping Height: 1745mm
Max Digging Height: 2580mm
Climbing Capacity: 30°
Travel Speed: 0-2.5km/h
Bucket Digging Force: 11.5kN
Suitable For: Mountain reclamation, Municipal engineering, Landscaping, Water & electricity installation, Orchard ditching, Sewer dredging
