Product Description:

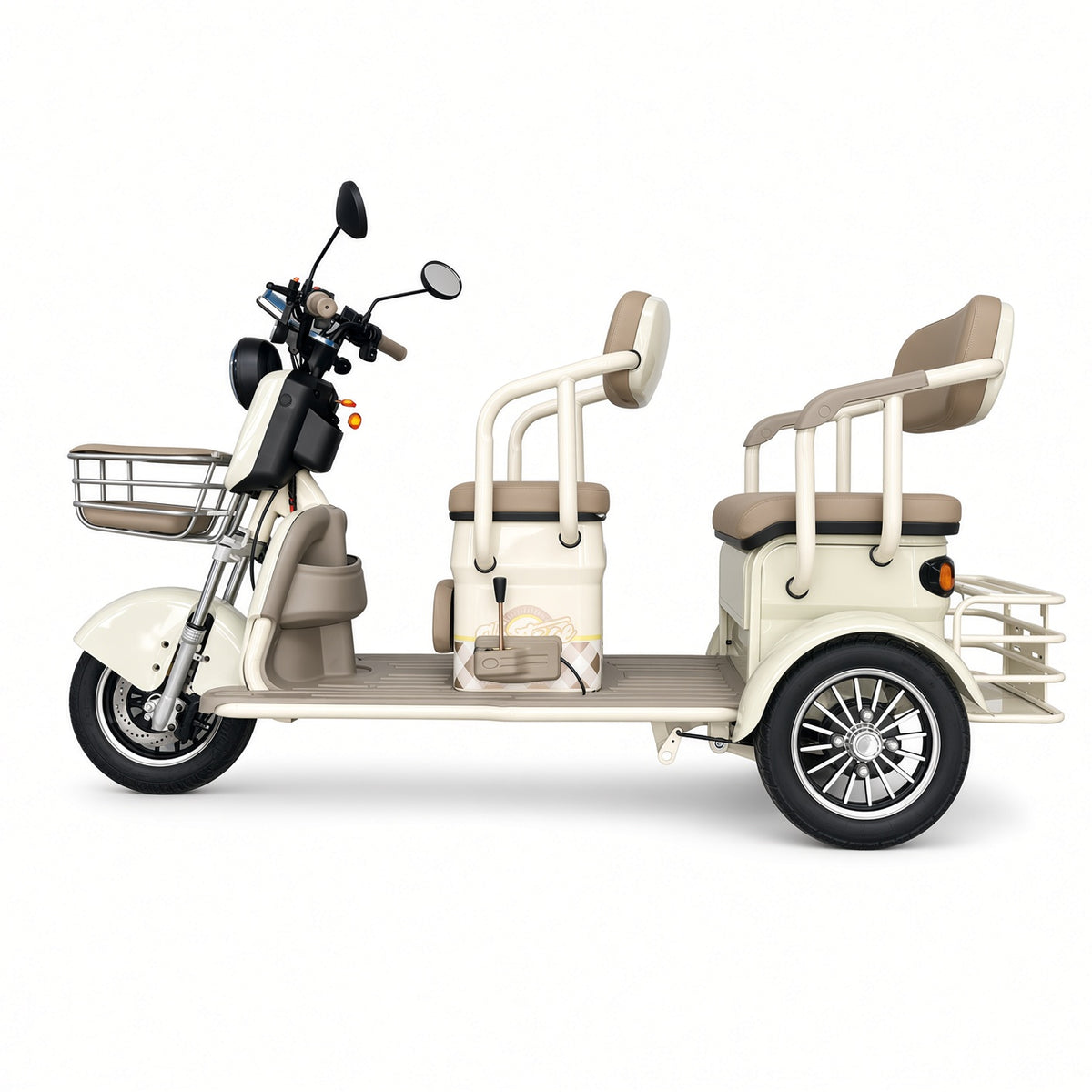

The L2 is a leisure electric tricycle with overall dimensions of 2200×850×1000mm and seat widths of 480mm/680mm. Motor power is 650W 35H with a 48V/60V 13-tube controller and a top speed of 25km/h. Rated load is 175kg and maximum load is 225kg. Lithium or lead-acid batteries are optional. Suitable for community travel and short-distance trips.
Key Features:
• 650W motor, 48V/60V 13-tube controller, 25km/h top speed
• Dual seats with 480mm/680mm seat width
• 175kg rated load and 225kg maximum load
• Front and rear drum brakes plus hand parking, 4m braking distance
Product Specifications:
Model: L2
Product Type: Leisure Electric Tricycle
Overall Size: 2200×850×1000mm
Seat Width: 480mm / 680mm
Rated Motor Power: 650W 35H
Controller: 48V/60V, 13-tube
Rear Axle: Split Rear Axle
Front Fork: Φ27 Hydraulic Double-Shoulder Front Fork
Tires: Front 300-8, Rear 300-8
Rims: Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 4m
Wire Harness: National Standard, Waterproof Plugs
Max Speed: 25km/h
Rated Load Capacity: 175kg
Max Load Capacity: 225kg
Battery: Lithium / Lead-acid Optional

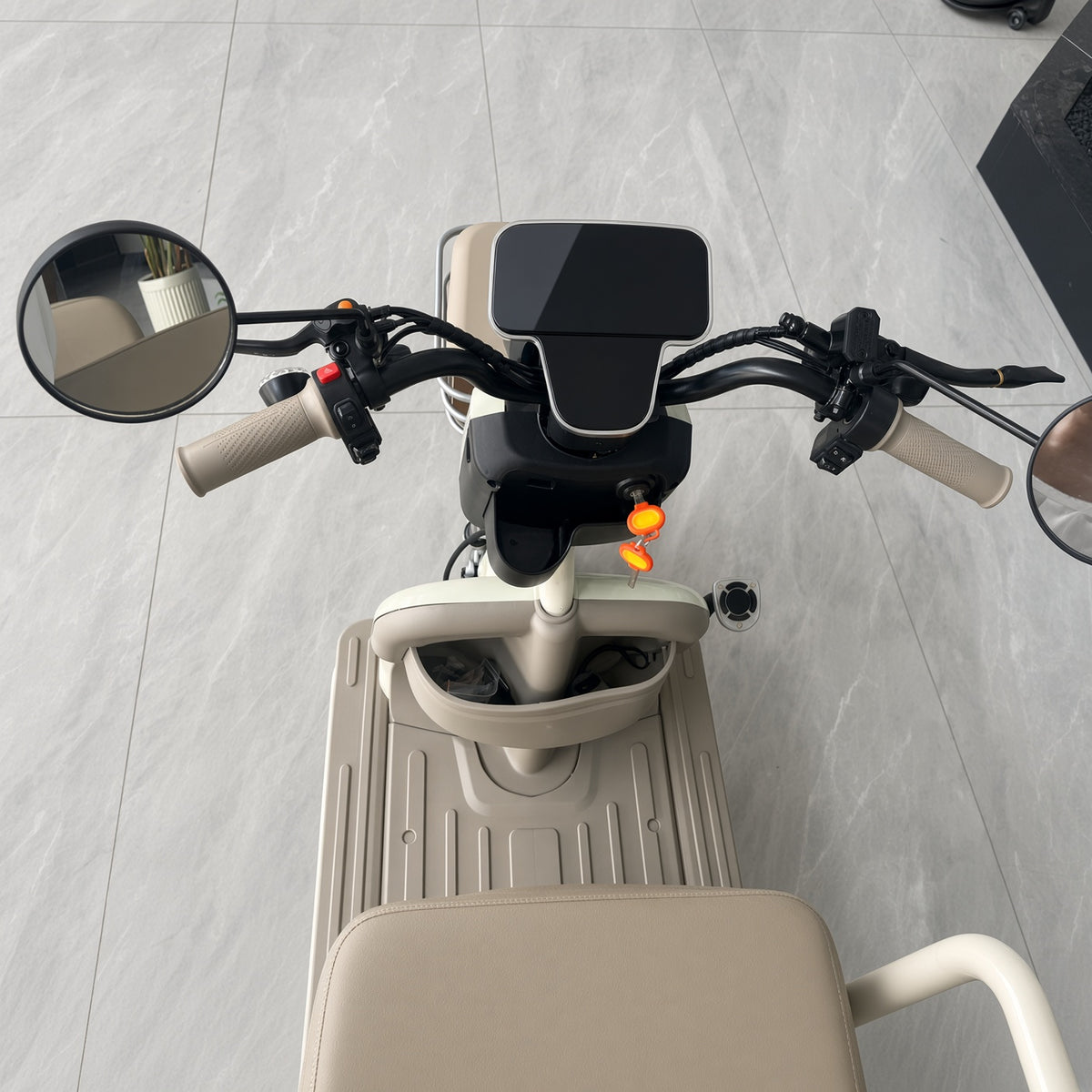

Meter: LCD Digital Display

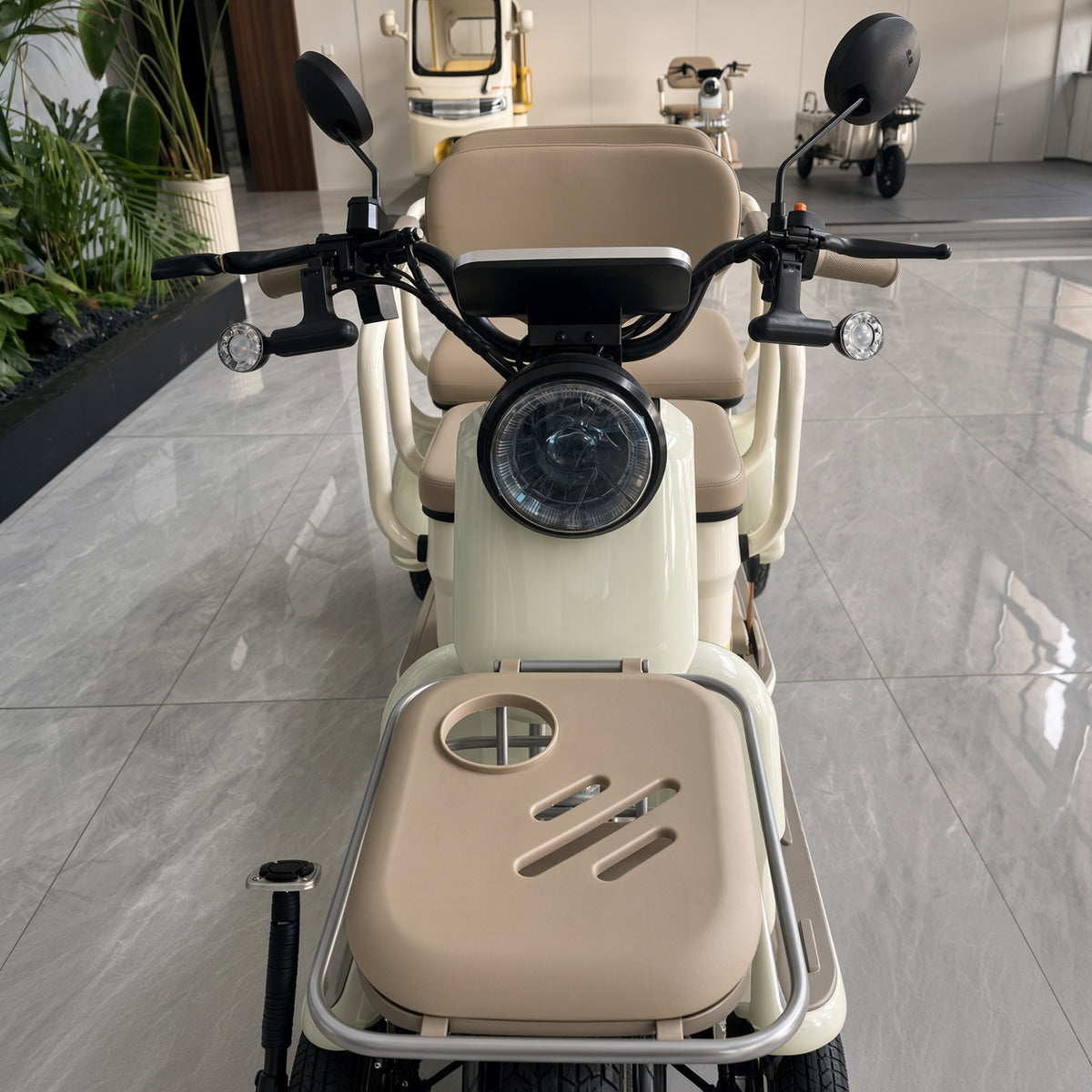

Lights: LED Headlight and Taillights
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Customizable
Loading Qty: SKD 65 Units Carton / 40HQ, CKD 120 Units / 40HQ
Suitable For: Community travel, Short-distance trips, Leisure commuting
