HS1020 4 Channel Vehicle Monitoring Recording System

HS1020 4 Channel Vehicle Monitoring Recording System

Product Description:

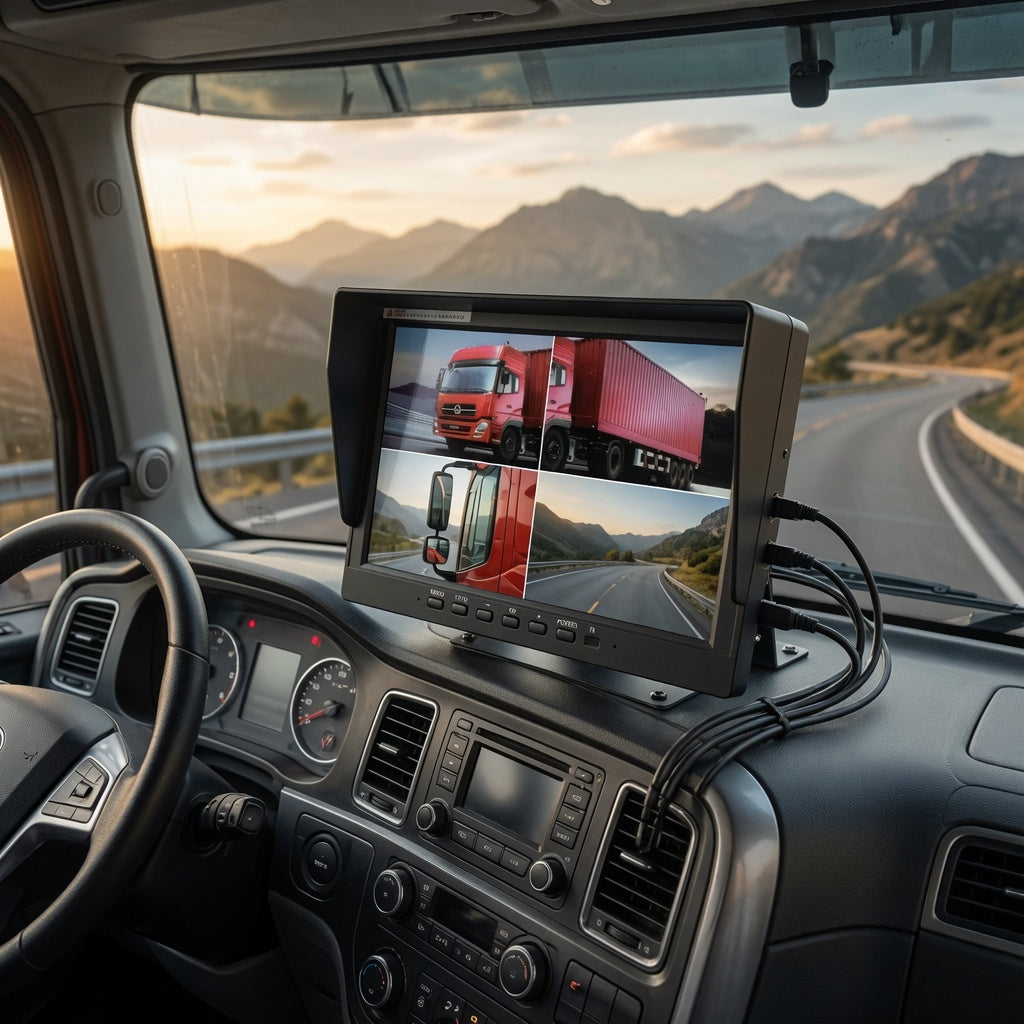

The HS1020 4 Channel Vehicle Monitoring Recording System uses four wide-angle cameras installed on the front, rear, left and right sides of the vehicle to capture surrounding images simultaneously.

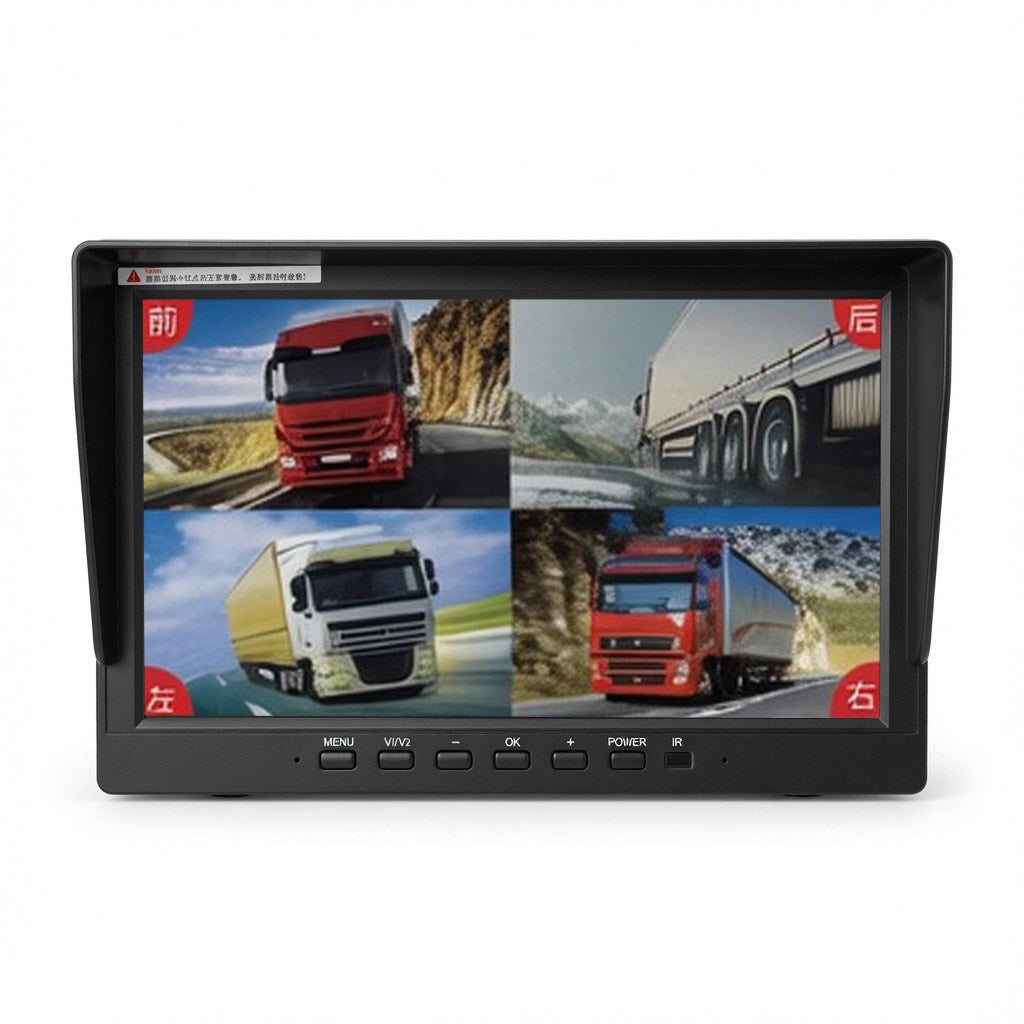

The system displays real-time images on the HD monitor, allowing drivers to clearly view obstacles, pedestrians and blind spots around the vehicle.

With four-channel video recording capability, the system records driving footage for vehicle safety management and accident evidence protection.

Key Features:

10.1 inch HD IPS display

4 channel AHD HD camera input

Front, rear, left and right vehicle monitoring

Simultaneous 4 channel video recording

Multiple split-screen display modes

Automatic recording after power on

Loop recording function

Local video playback

Automatic rear camera switching when reversing

Adjustable parking guidelines

Microphone audio recording support

Supports up to 256GB memory card

10V-36V wide voltage input

Vehicle-grade power protection system

Suitable for trucks, buses, construction vehicles and special vehicles

Product Specifications:

Model: HS1020

Product Type: 4 Channel Vehicle Monitoring Recording System

Display Size: 10.1 Inch

Display Type: IPS HD Display

Display Resolution: 1024×600

Video Input: 4 Channel AHD HD Video Input

Camera Quantity: 4 Cameras

Camera Type: AHD HD Camera

Camera Resolution: 720P

Camera Design: Without Light

Recording Mode: Automatic Recording After Power On

Video Format: H.265

Recording Storage: Independent Storage for Each Channel

Display Mode: 14 Multi-View Display Modes

Storage Type: Micro SD Card

Memory Card Requirement: Class10 U1 High Speed Card

Maximum Storage Support: 256GB

Audio Function: Built-in Microphone Recording Support

Operation Method: Physical Buttons + Infrared Remote Control

Operation Language: Chinese / English

Power Input: 10V-36V Wide Voltage

Power Consumption: Less Than 10W

Working Temperature: -20℃ to 65℃

Cooling Method: Passive Cooling

Reverse Function: Automatic Rear Camera Switching

Parking Guidelines: Adjustable

Video Duration: Adjustable Recording Time

Trigger Delay: Adjustable Signal Delay

Camera Configuration:

Front Camera: CH1

Rear Camera: CH2

Left Camera: CH3

Right Camera: CH4

Camera Connector: Aviation Connector

System Functions:

Video Recording Management

Video Playback

Recording Resolution Adjustment

Recording Segment Time Setting

Audio Recording Control

Image Mirror Setting

SD Card Formatting

Split Screen Mode Setting

Channel Delay Setting

Screen Saver Setting

Brightness Adjustment

Language Selection

Date and Time Setting

Factory Reset

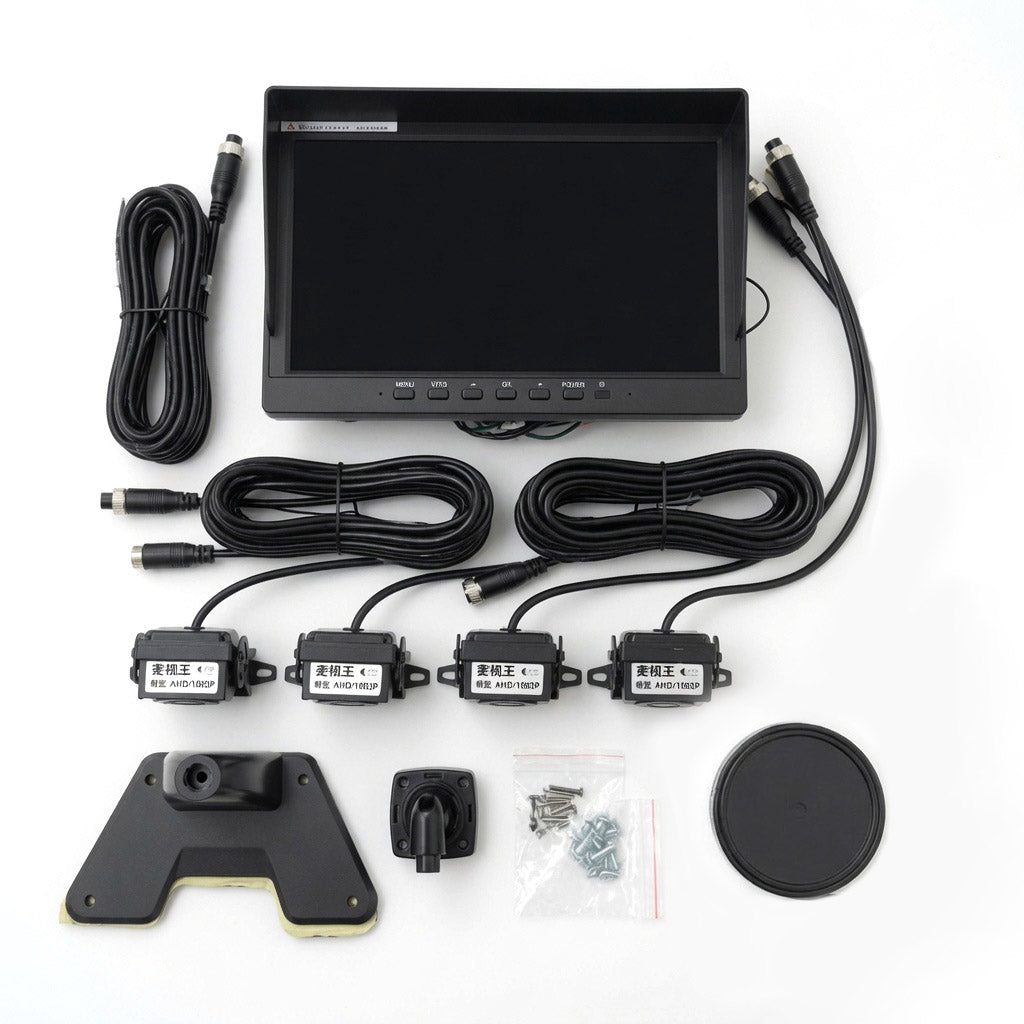

Package Includes:

10.1 Inch HD Monitor

AHD HD Cameras ×4

Infrared Remote Control

10P Main Cable

Camera Extension Cables

Mounting Bracket

Dashboard Base
