HS1010 7 Inch Dual Channel Vehicle Safety Recording System

Product Description

The HS1010 Dual Channel Vehicle Safety Recording System is designed for trucks, buses, commercial vehicles and special vehicles.

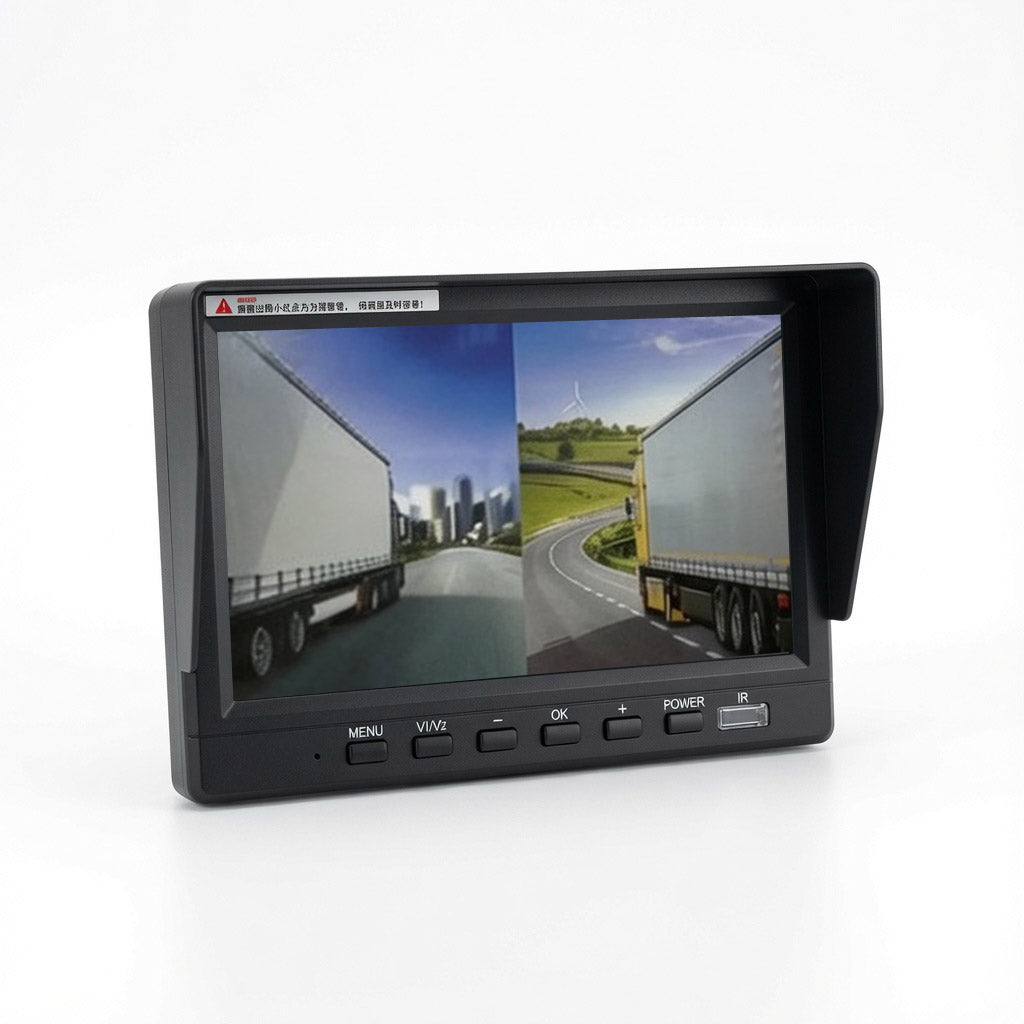

The system uses two HD wide-angle cameras installed at the front and rear of the vehicle to capture surrounding images simultaneously and display real-time video on the 7-inch HD screen.

It helps drivers reduce blind spots, avoid collisions and monitor road conditions. The system also records driving videos for vehicle safety management and accident evidence.

Key Features

7-inch HD IPS display with 1024×600 resolution

Dual HD camera input system

Real-time front and rear video monitoring

1080P HD video recording

Automatic recording after power on

Multiple display modes

Reverse camera display with adjustable parking guidelines

Supports up to 256GB memory card

Loop recording without missing important footage

9V-36V wide voltage input

Vehicle-grade power protection system

Physical buttons and infrared remote control operation

Product Specifications

Model: HS1010

Display Size: 7 Inch

Display Type: IPS HD Display

Display Resolution: 1024×600

Video Input: Dual HD Video Input

Camera Quantity: 2 Cameras

Recording Resolution: 1080P

Video Format: H.264

Storage: Class 10 Memory Card

Maximum Storage Support: 256GB

Operation Language: Chinese / Traditional Chinese / English

Operation Method: Physical Buttons + Infrared Remote Control

Power Input: 9V-36V Wide Voltage

Power Consumption: Less Than 8W

Working Temperature: -20℃ to 70℃

Cooling Method: Passive Cooling

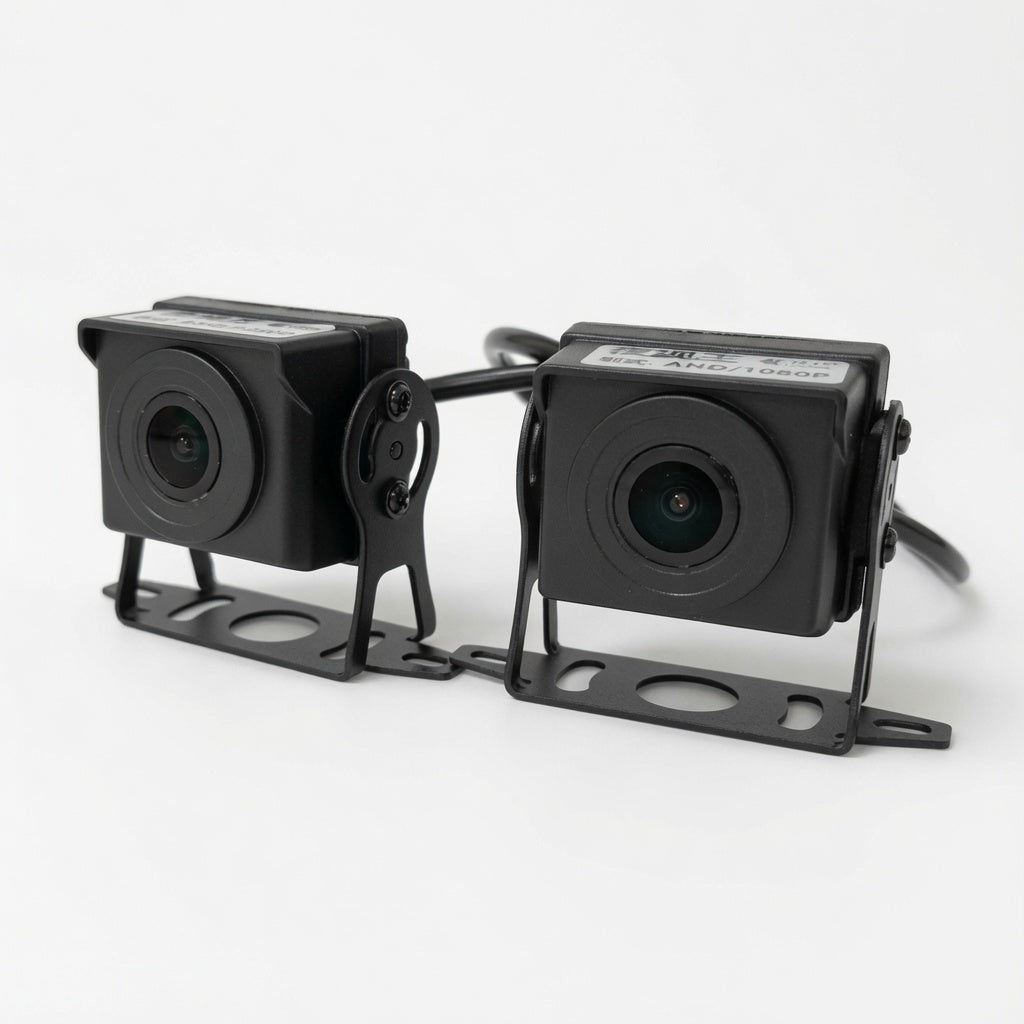

Camera Specifications

Front Camera:

Camera Type: Front View Camera

Image Type: Original Image Display

Resolution: HD

Lighting: Without Light

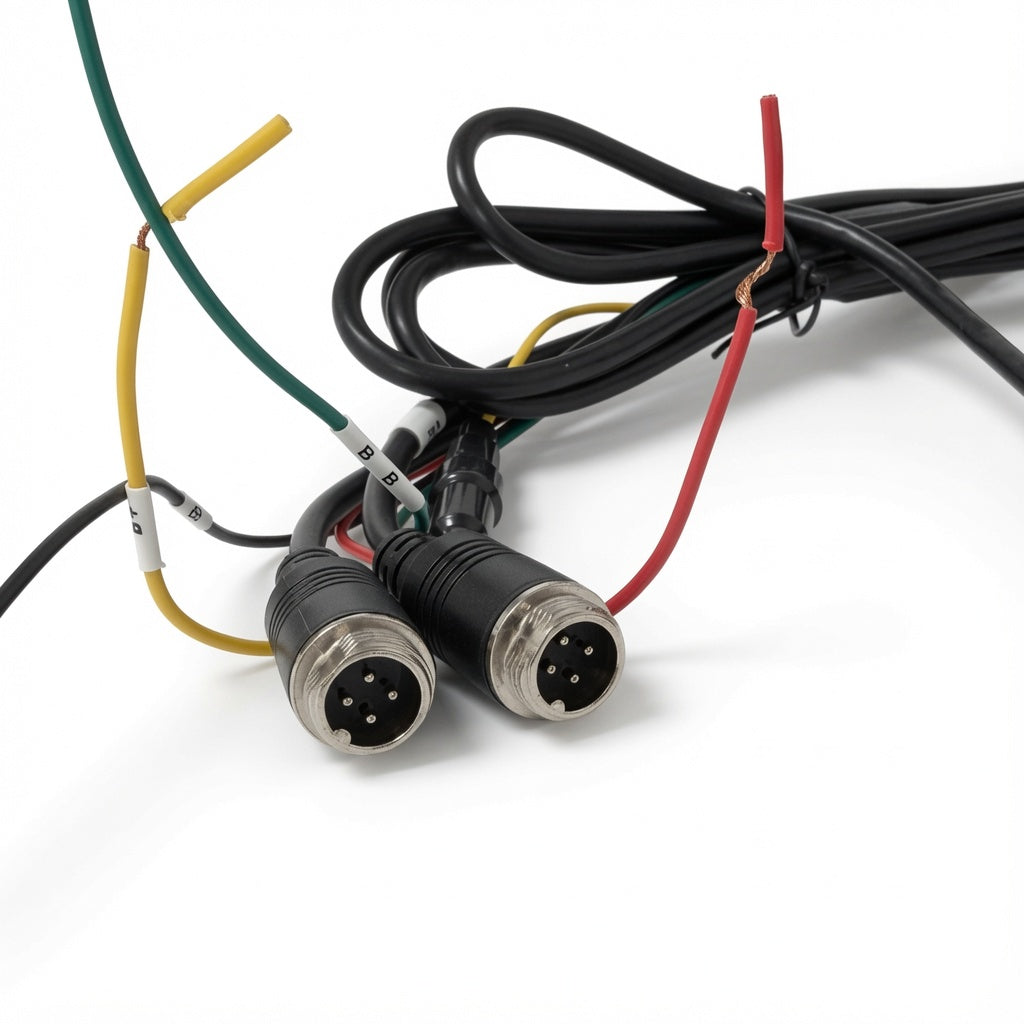

Connector: Aviation Connector

Rear Camera:

Camera Type: Rear View Camera

Image Type: Mirror Image Display

Resolution: HD

Lighting: Without Light

Connector: Aviation Connector

Display Functions

Real-time Front and Rear Camera Display

4 Display Modes

Local Video Playback

Automatic Camera Switching

Split Screen Display Settings

Brightness and Color Adjustment

Recording Functions

Automatic Recording After Power On

Loop Recording Function

Adjustable Recording Segment Time

Video Playback Support

Fast Forward and Fast Reverse Playback

Reverse Camera Function

Automatically switches to rear camera view when reverse signal is detected

Displays adjustable parking guidelines

Adjustable Guide Line Height

Adjustable Guide Line Width

Automatically returns to previous display mode after reversing

Power Protection

Supports 9V-36V Vehicle Power System

Built-in Protection:

Over Voltage Protection

Over Current Protection

Low Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

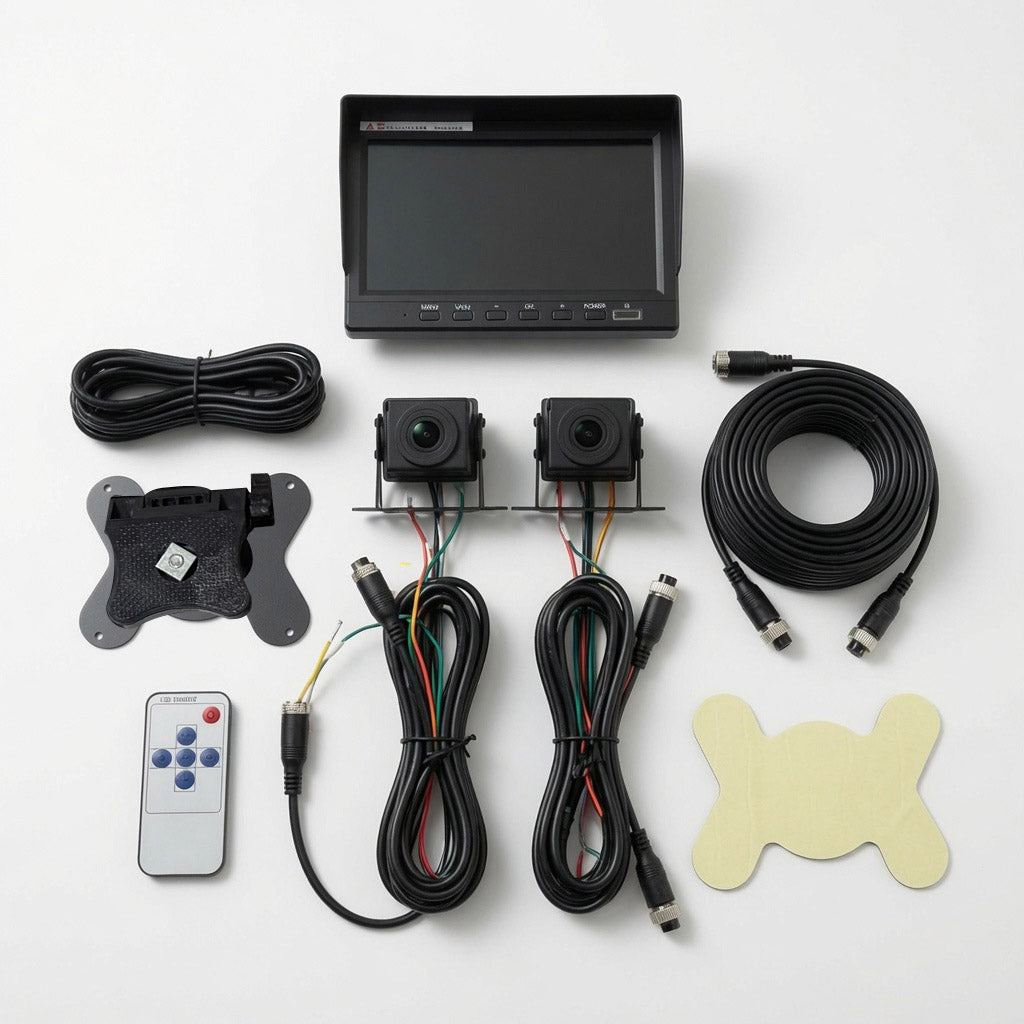

Package Includes

7 Inch Display Unit

Front HD Camera

Rear HD Camera

Infrared Remote Control

Front Camera Extension Cable

Rear Camera Extension Cable

Power Cable
