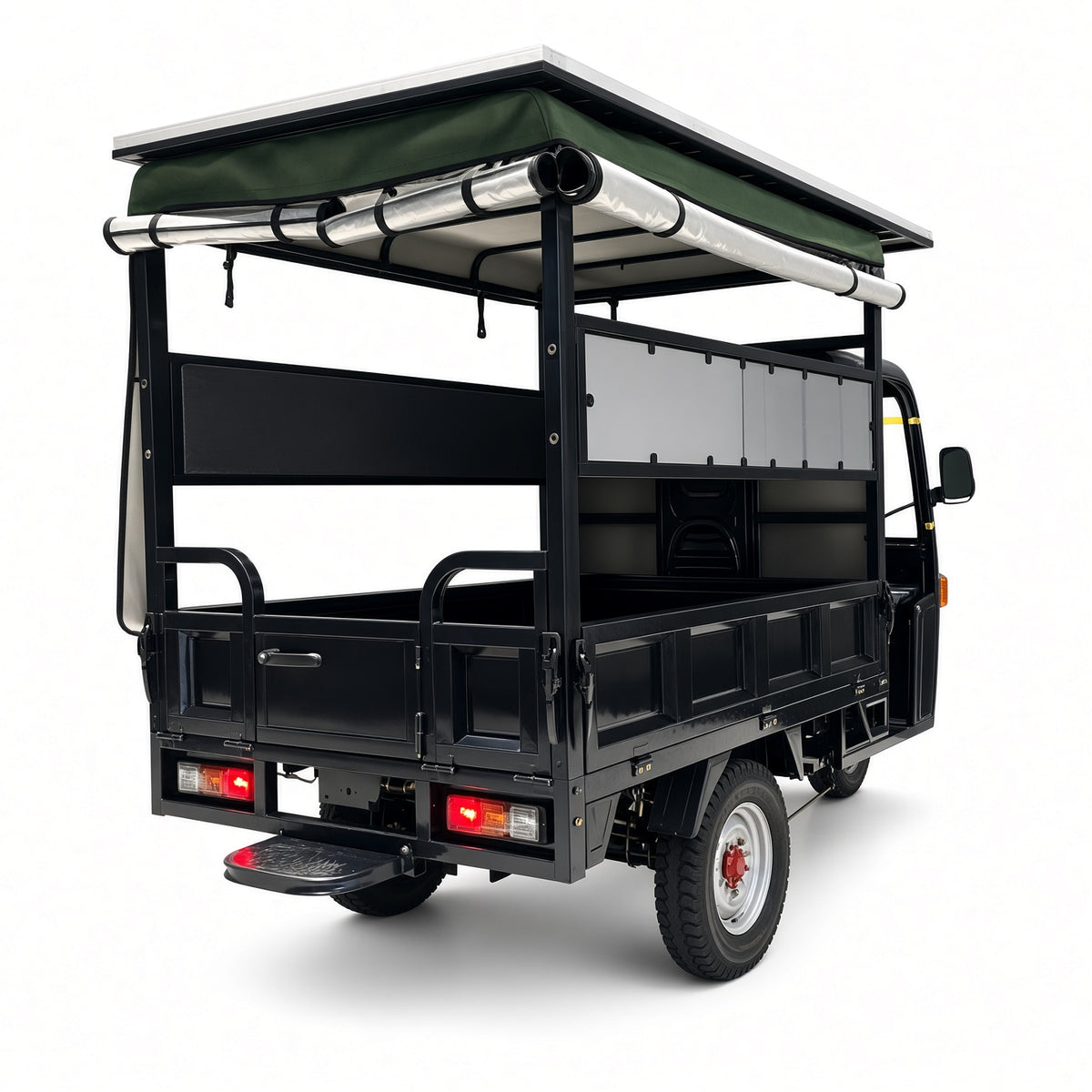

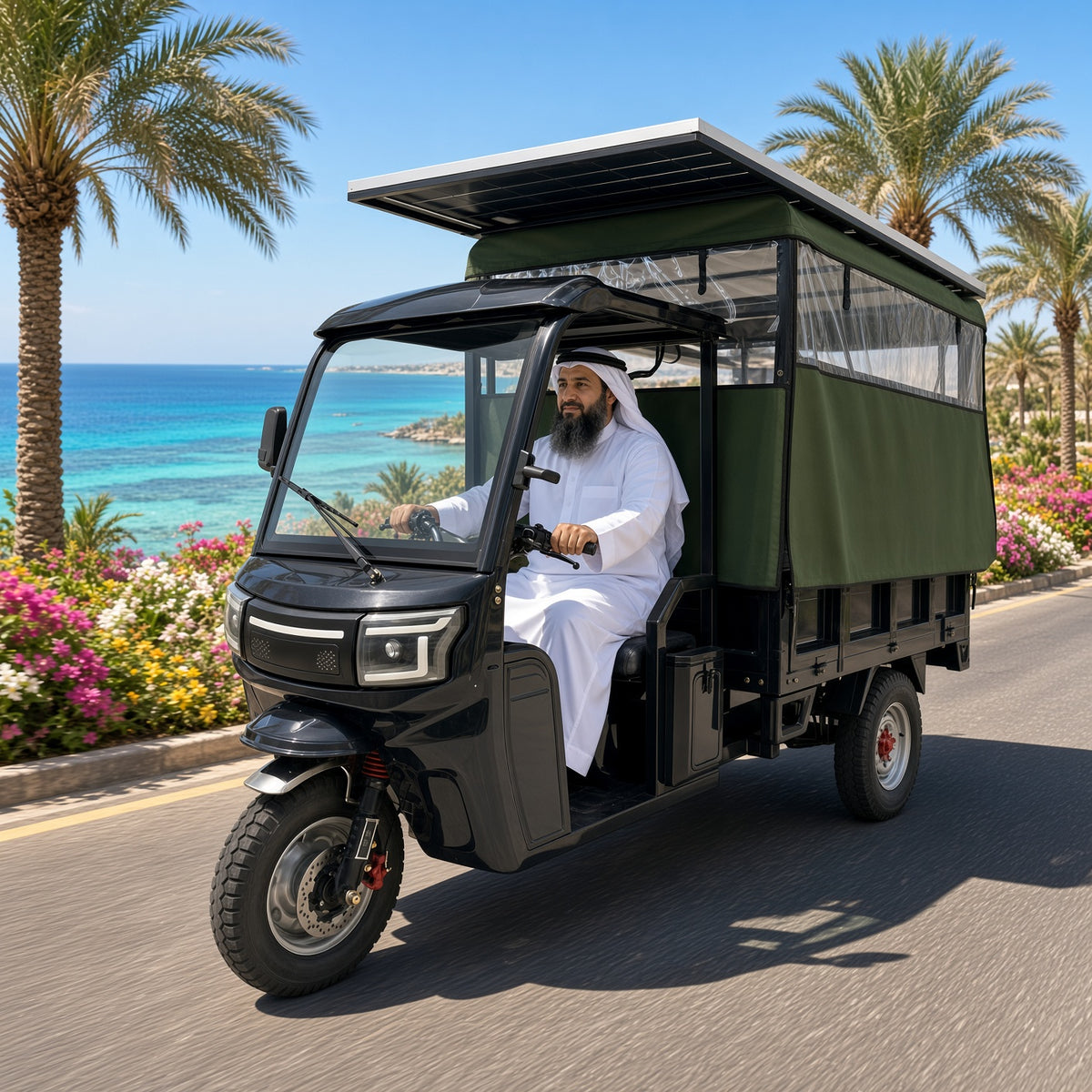

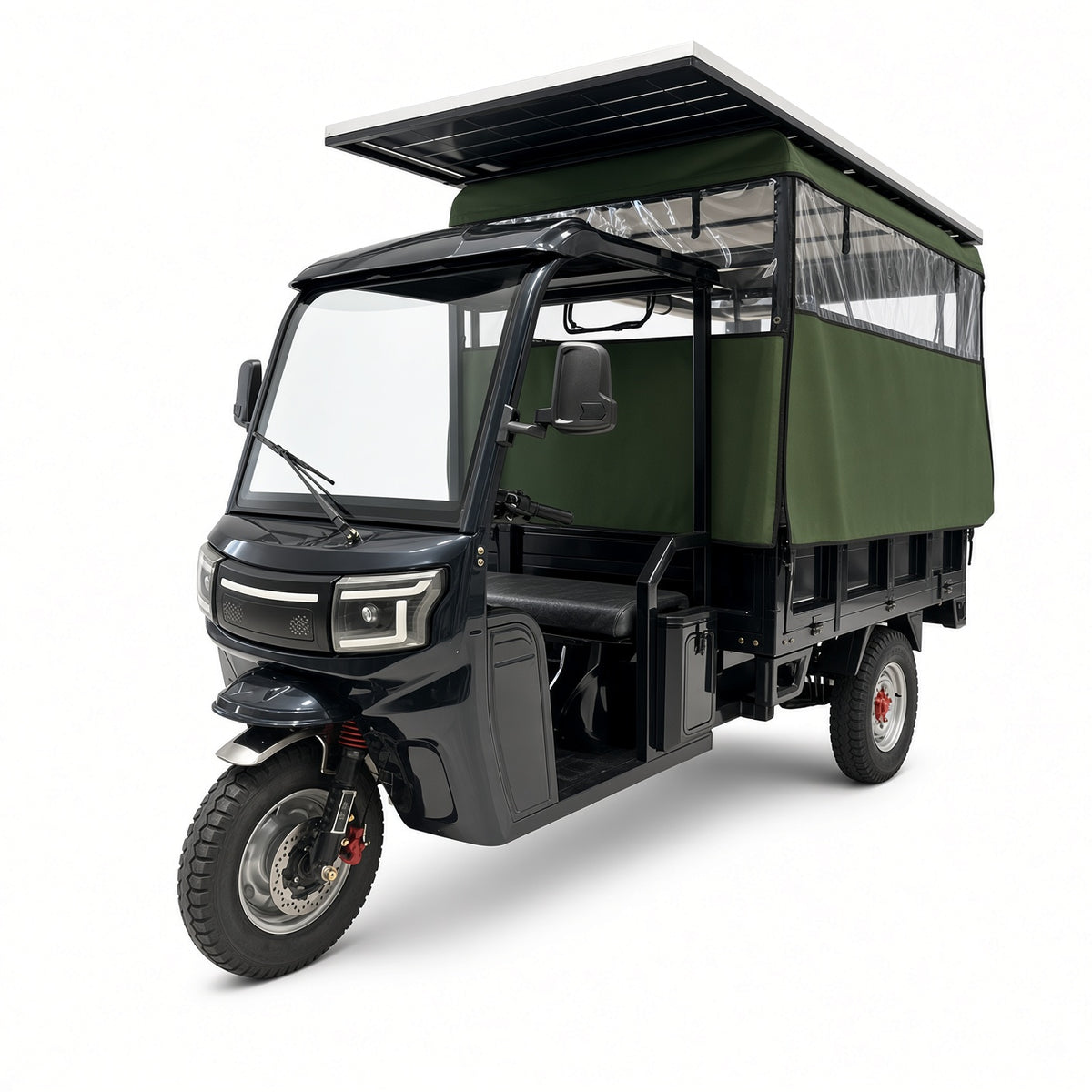

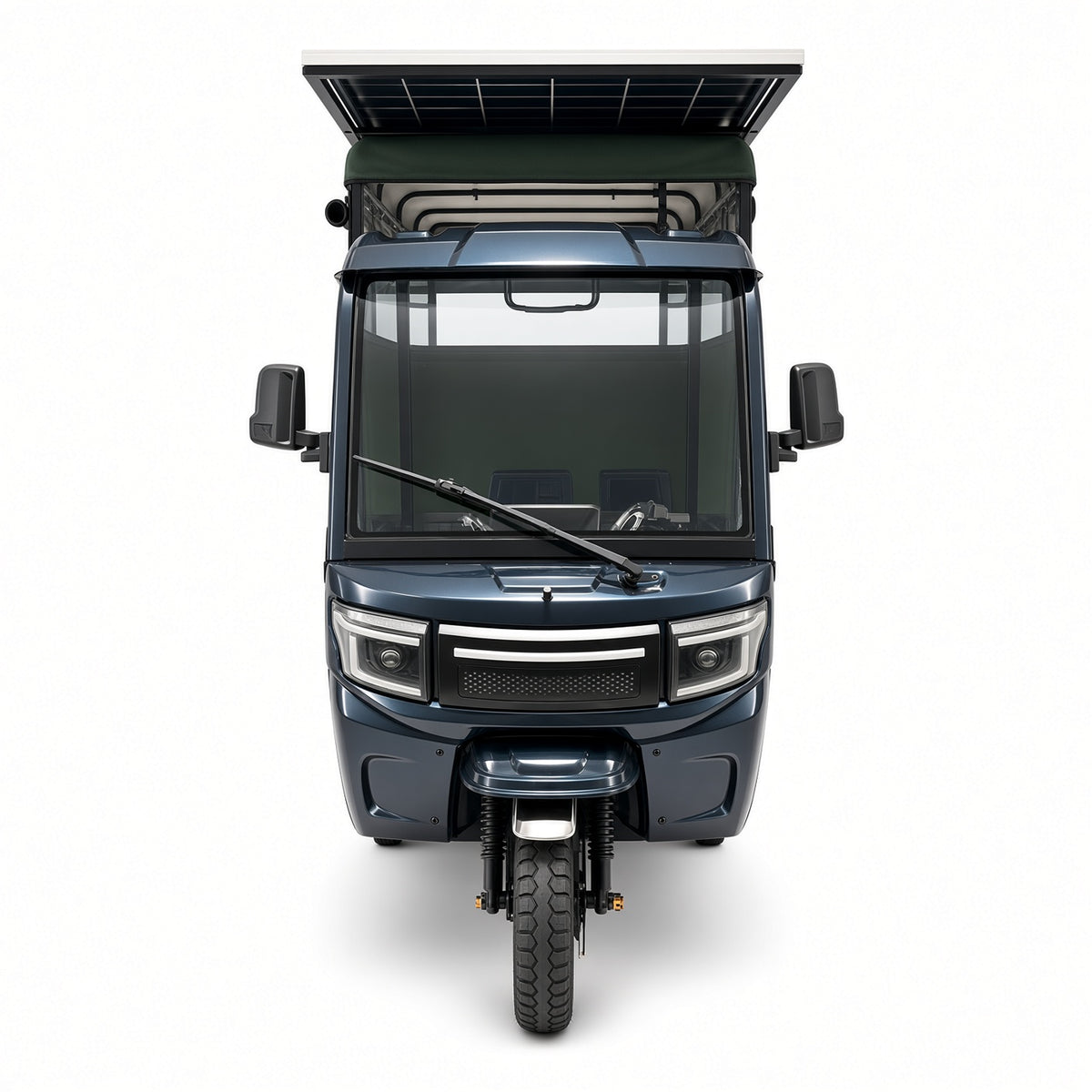

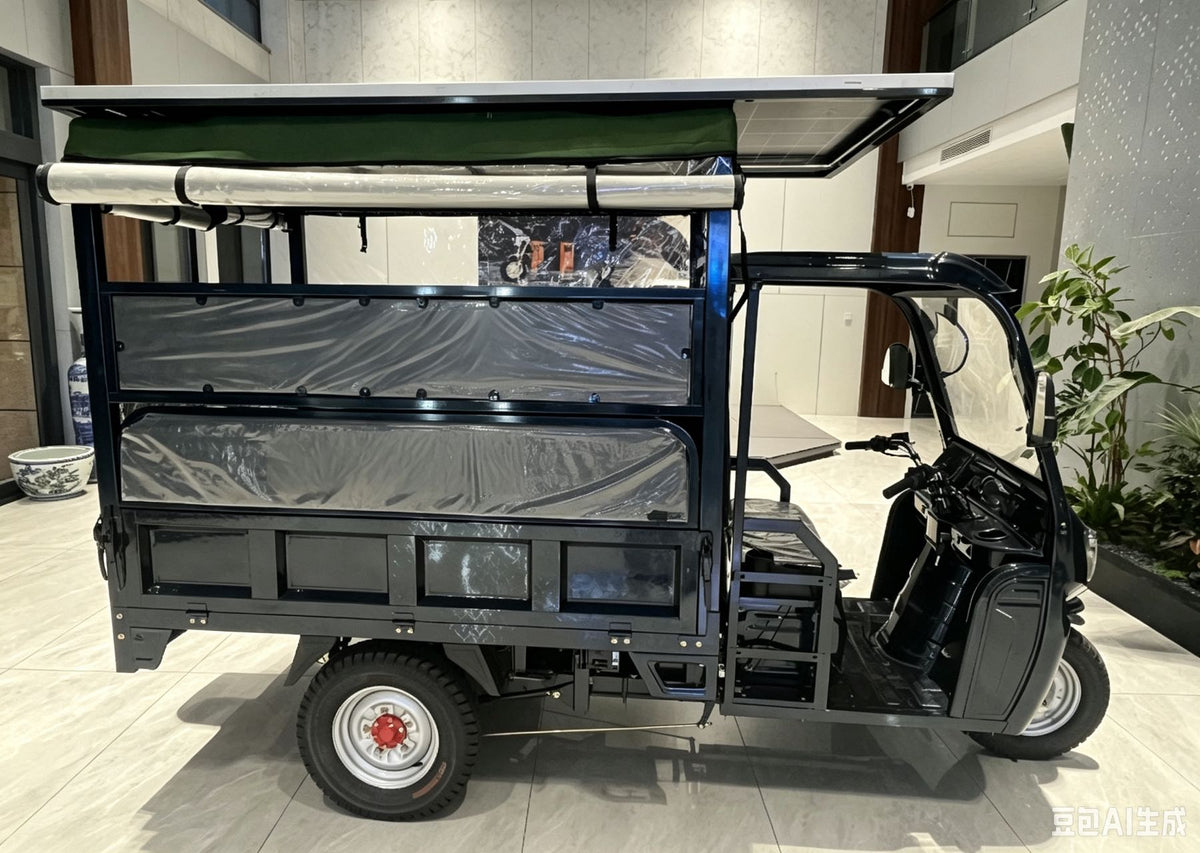

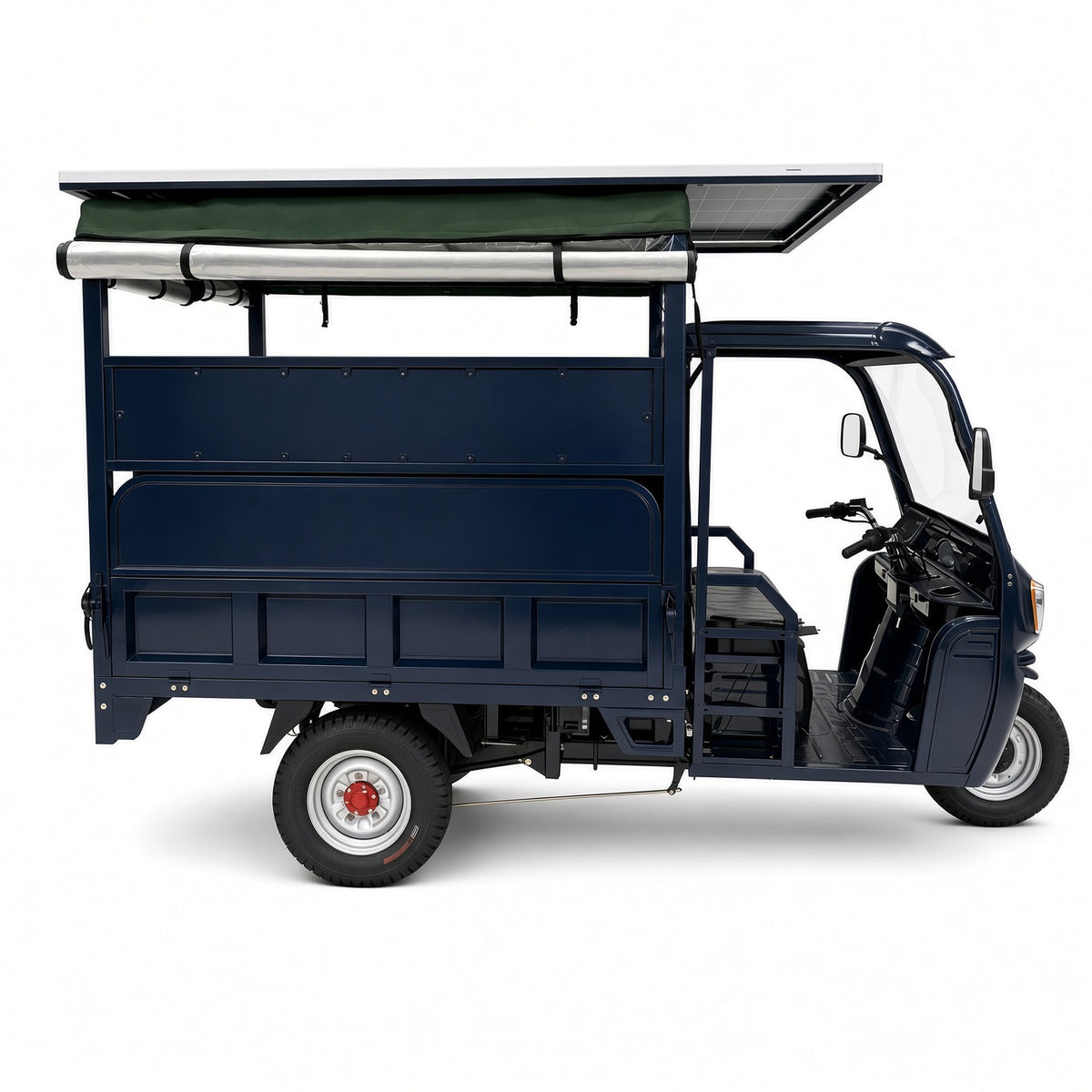

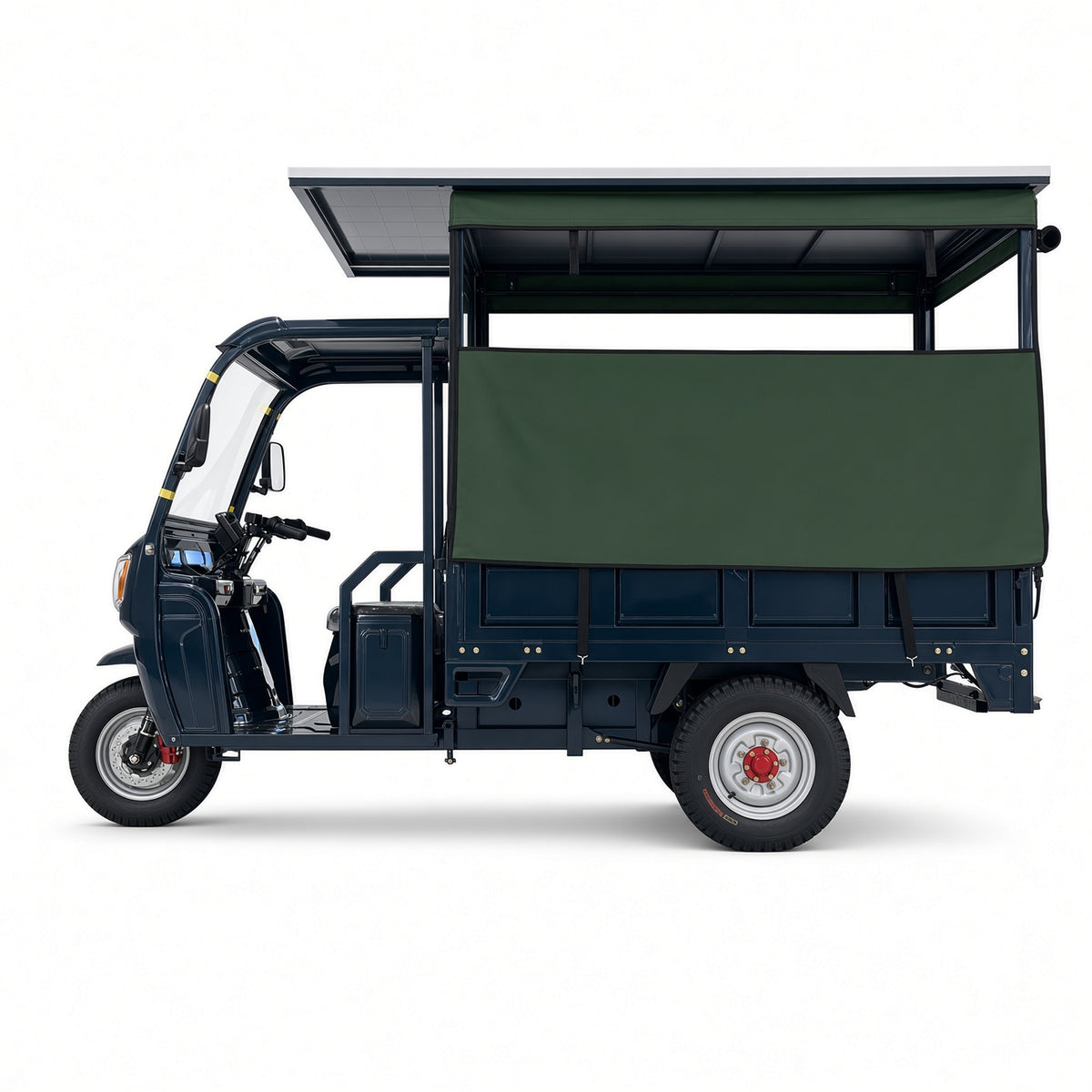

H1-180 Passenger-Cargo Electric Tricycle 1.8m 1800W Flat-Wire Motor 720W Solar 800kg Rated Load

Title: H1-180 Passenger-Cargo Electric Tricycle 1.8m 1800W Flat-Wire Motor 720W Solar 800kg Rated Load

Product Name: H1-180 Passenger-Cargo Electric Tricycle

Product Description:
The H1-180 is a 1.8m passenger-cargo electric tricycle with overall dimensions of 3490×1370×2070mm and a cargo box of 1800×1360mm. It uses a 122-60 flat-wire motor (1800W) with a 60V/72V controller and a top speed of 45km/h. Rated load is 800kg and maximum load is 1000kg. It comes with a 720W solar panel and inverter, plus an electric dumping system. Lithium or lead-acid batteries are optional. Suitable for passenger-cargo dual use and short-distance transport.

Key Features:
• 1800W flat-wire motor, 60V/72V controller, 45km/h top speed
• 1.8m passenger-cargo box, 800kg rated load, 1000kg maximum load
• 720W solar panel with inverter
• Electric dump, one-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: H1-180
Product Type: 1.8m Passenger-Cargo Electric Tricycle
Overall Size: 3490×1370×2070mm
Cargo Size: 1800×1360mm
Cargo Material: Steel door core and 1.3mm steel floor
Curb Weight: 395kg (Without Battery)
Rated Motor Power: 122-60 Flat-Wire Motor (1800W)
Controller: 60V/72V
Rear Axle: Integrated Full-Floating Rear Axle, Φ220 Brake Drum
Front Fork: Φ43 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 450-12, Rear 500-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front Disc / Rear Drum, Hand Parking
Brake Distance: 6m
Wire Harness: 8mm² National Standard
Spring Plate: 5pcs × 4
Wheelbase: 2160mm
Track: 1150mm
Max Gradeability: ≥18°
Max Speed: 45km/h
Rated Load Capacity: 800kg
Max Load Capacity: 1000kg
Battery: Lithium / Lead-acid Optional
Solar Panel: TNC, Anodized Aluminum Frame, 720W, with Inverter
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: Dump, One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: CKD 30 Units / 40HQ
Suitable For: Passenger-cargo dual use, Short-distance cargo transport, Park logistics
