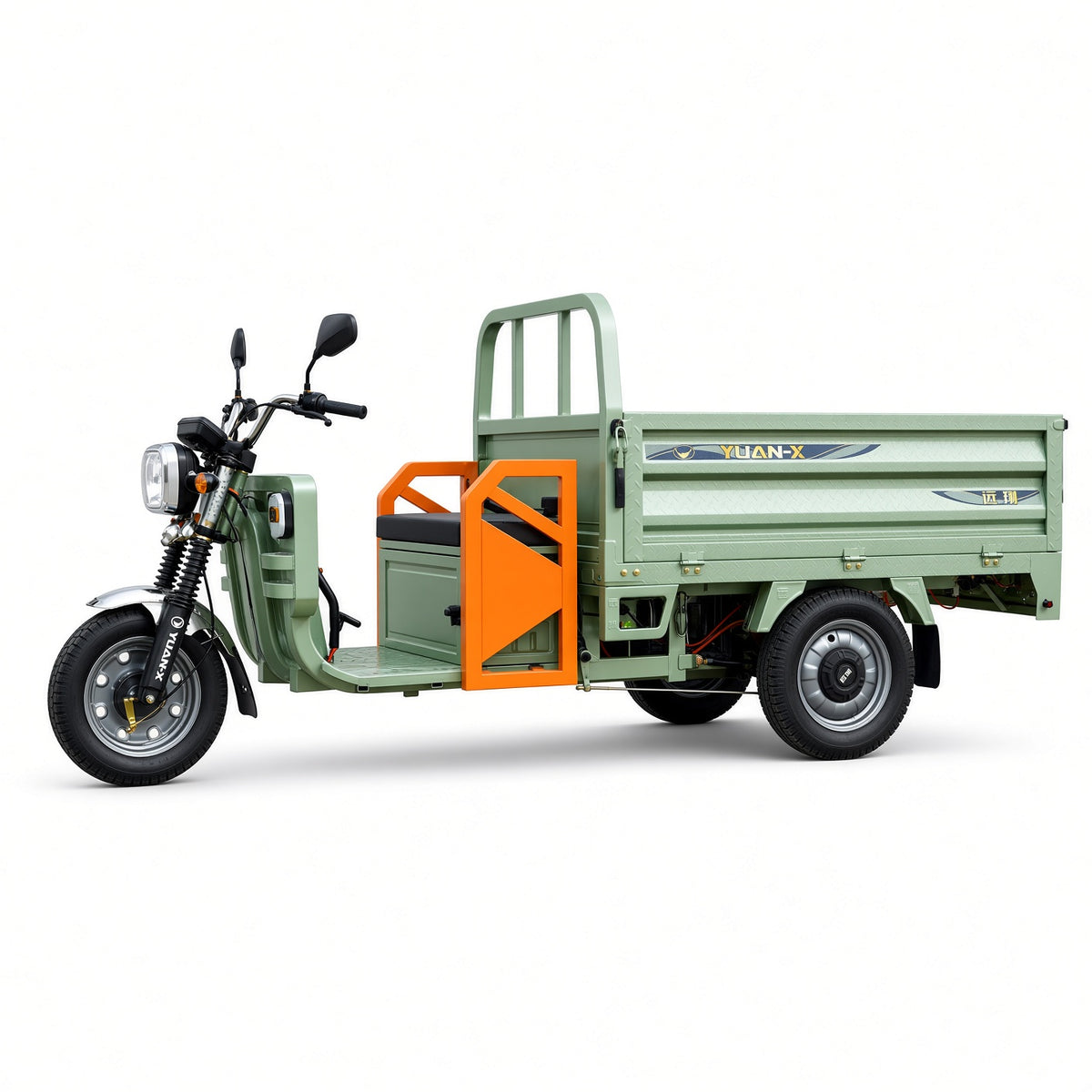

F9-150 Electric Cargo Tricycle 1.5m Speed Model 1000W 48V/60V 300kg Rated Load 800kg Max Load

Title: F9-150 Electric Cargo Tricycle 1.5m Speed Model 1000W 48V/60V 300kg Rated Load 800kg Max Load

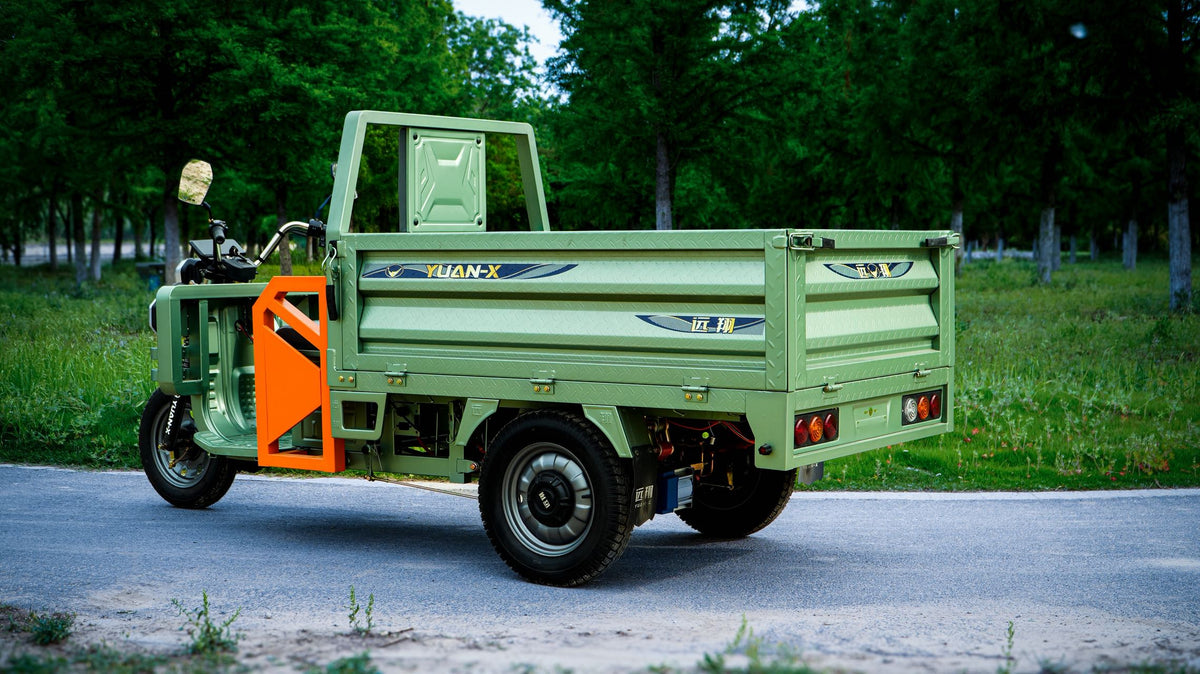

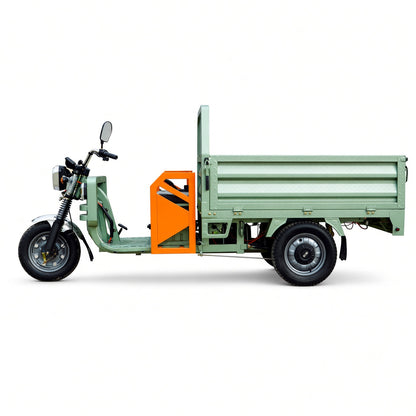

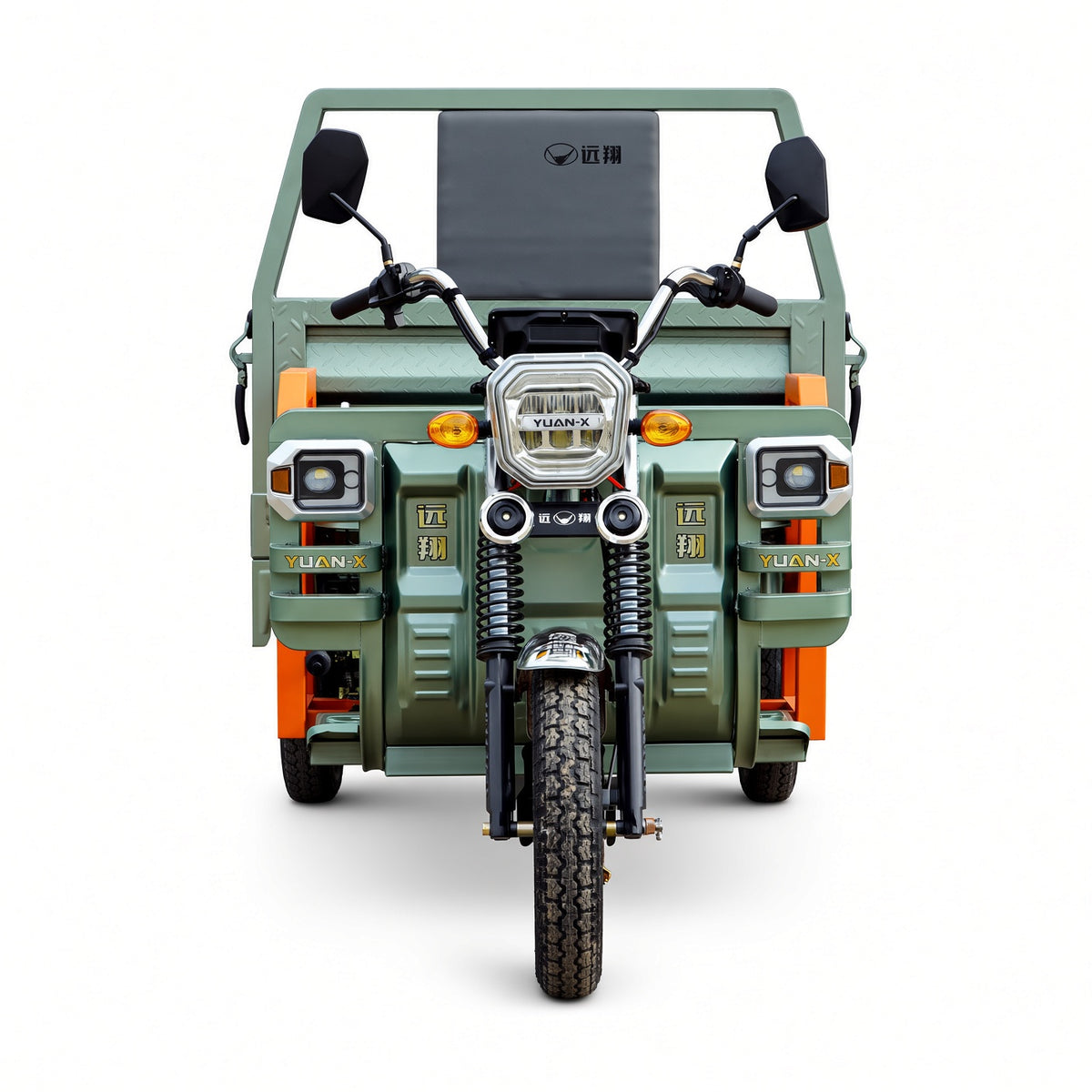

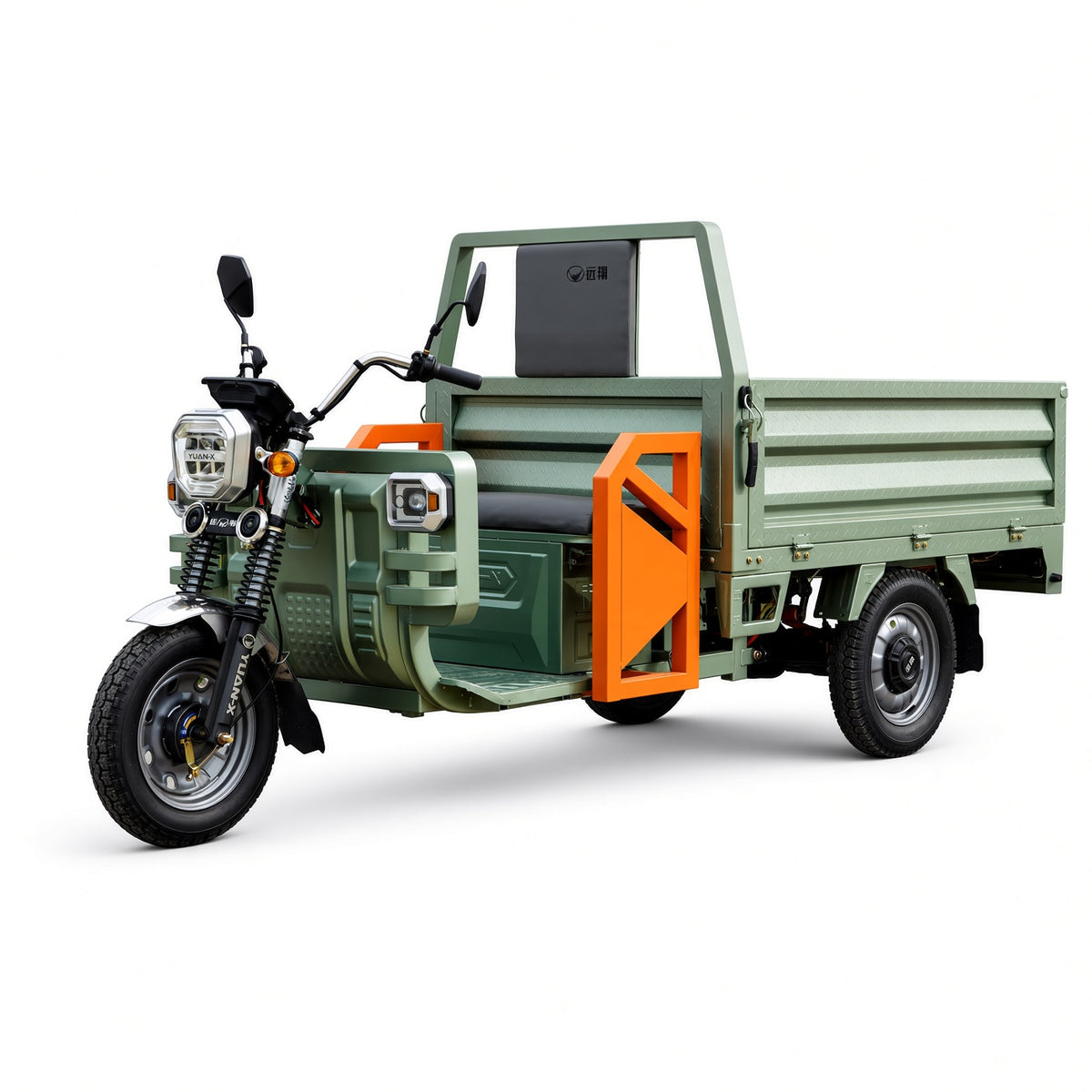

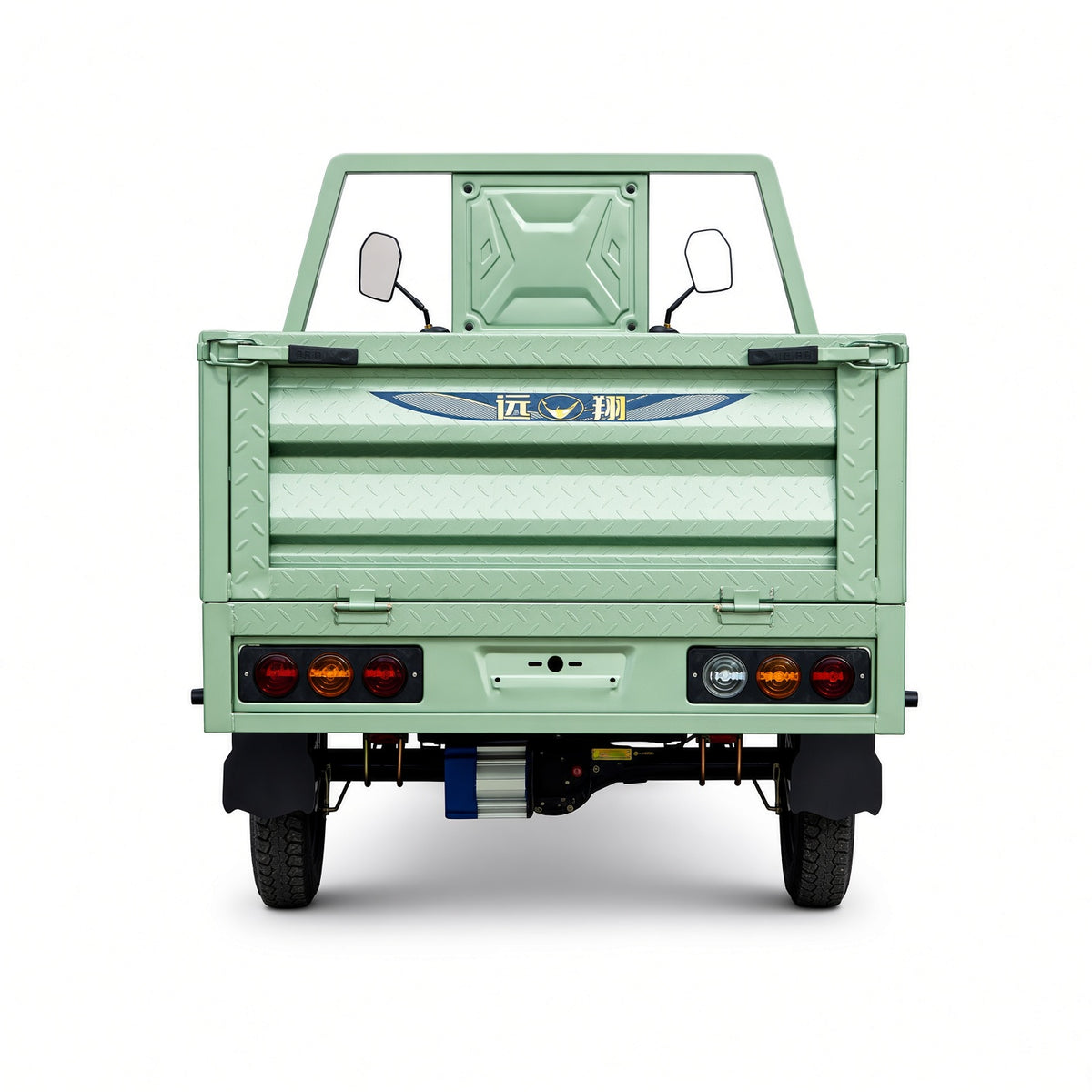

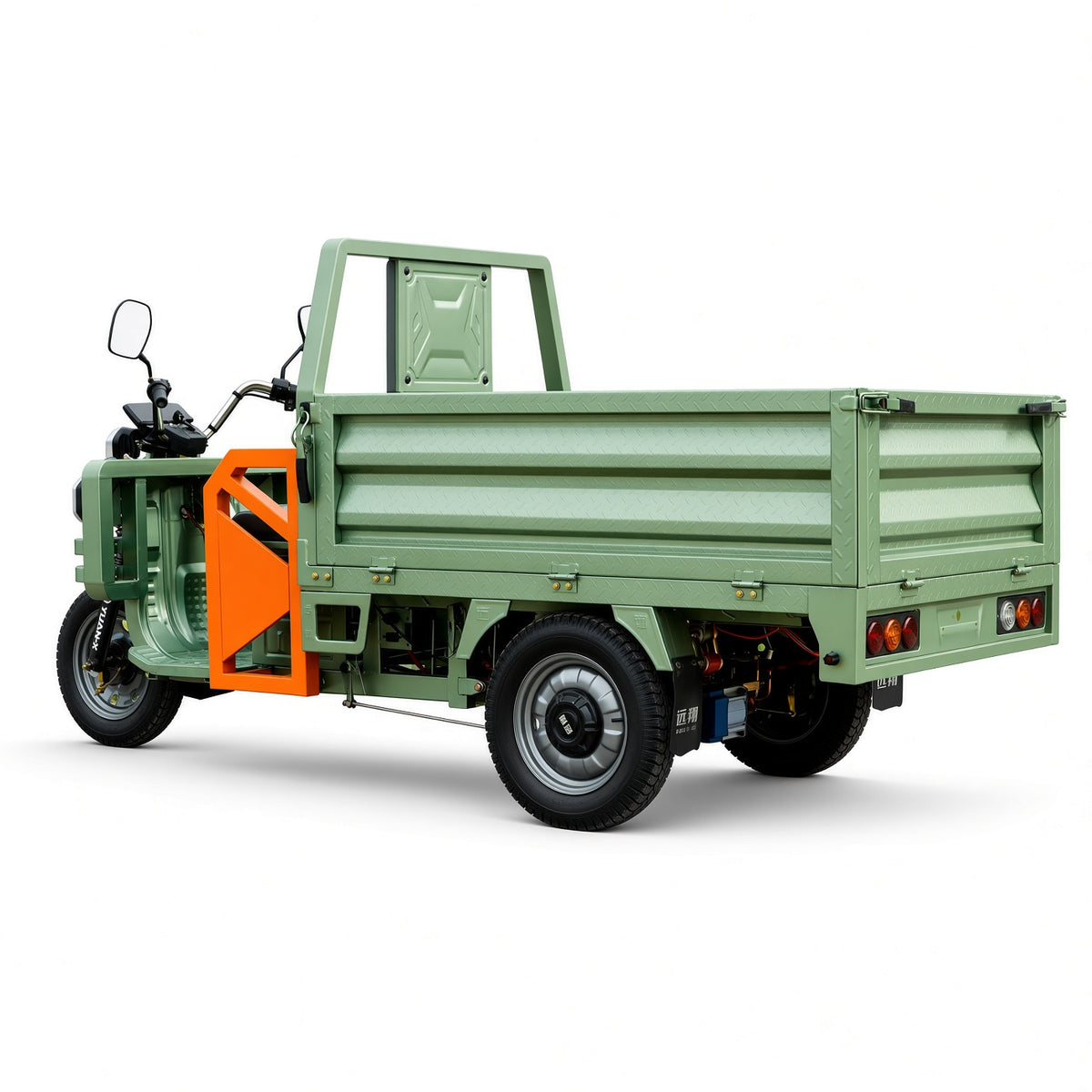

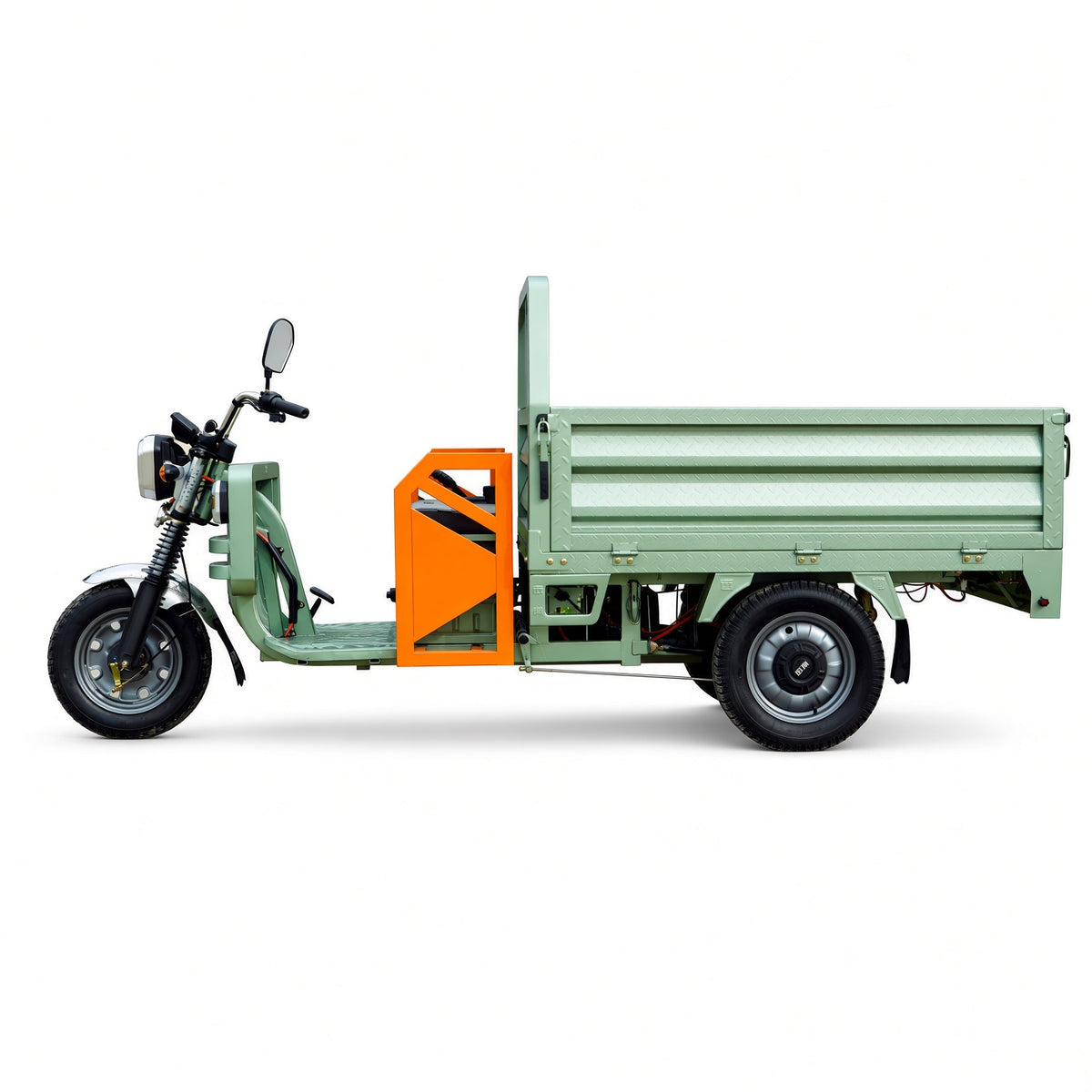

Product Name: F9-150 Electric Cargo Tricycle

Product Description:
The F9-150 is a 1.5m speed-model electric cargo tricycle with overall dimensions of 2970×1080×1350mm and a cargo box of 1500×1000×400mm. Motor power is 1000W 50H with a 48V/60V dual 18-tube controller and a top speed of 38km/h. Rated load is 300kg and maximum load is 800kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and city delivery.

Key Features:
• 1000W motor, 48V/60V dual 18-tube controller, 38km/h top speed
• 1.5m cargo box, 300kg rated load, 800kg maximum load
• Front and rear drum brakes plus hand parking, 5m braking distance
• Hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: F9-150
Product Type: 1.5m Speed-Model Electric Cargo Tricycle
Overall Size: 2970×1080×1350mm
Cargo Size: 1500×1000×400mm
Cargo Material: 0.8mm steel cargo door, 1.0mm steel floor
Curb Weight: 209kg (Without Battery)
Rated Motor Power: 1000W 50H
Controller: 48V/60V, Dual 18-tube
Rear Axle: Integrated Rear Axle, Φ160 Brake Drum
Front Fork: Φ37 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 375-12, Rear 400-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 5m
Wire Harness: 6mm² National Standard, Waterproof Plugs
Spring Plate: 5pcs × 8kg
Wheelbase: 880mm
Track: 2050mm
Max Gradeability: ≥18°
Max Speed: 38km/h
Rated Load Capacity: 300kg
Max Load Capacity: 800kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Customizable
Functions: Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: CKD 46 Units / 40HQ, SKD 43 Units / 40HQ
Suitable For: Short-distance cargo transport, City delivery, Park logistics
