F7-160Z Extreme-Core Dump Electric Tricycle 1.6m 1200W PMSM Motor 60V/72V 475kg Rated

Title: F7-160Z Extreme-Core Dump Electric Tricycle 1.6m 1200W PMSM Motor 60V/72V 475kg Rated Load

Product Name: F7-160Z Extreme-Core Dump Electric Tricycle

Product Description:
The F7-160Z is a 1.6m Extreme-Core dump electric tricycle with overall dimensions of 3150×1190×1395mm and a cargo box of 1600×1160×420mm. It uses a 1200W PMSM motor with a 60V/72V 24-tube controller and a top speed of 45km/h. Rated load is 475kg and maximum load is 600kg. It has an electric hydraulic dumping system. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and dump work.

Key Features:
• 1200W PMSM motor, 60V/72V 24-tube controller, 45km/h top speed
• 1.6m dump cargo box, 475kg rated load, 600kg maximum load
• Front and rear drum brakes plus hand parking, 6m braking distance
• Electric hydraulic dump, one-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: F7-160Z
Product Type: 1.6m Extreme-Core Dump Electric Tricycle
Overall Size: 3150×1190×1395mm
Cargo Size: 1600×1160×420mm
Cargo Material: Steel door core and steel floor, door core height 420mm
Curb Weight: 265kg (Without Battery)
Rated Motor Power: 1200W PMSM
Controller: 60V/72V, 24-tube
Rear Axle: Integrated Full-Floating Rear Axle, Φ160 Brake Drum
Front Fork: Φ37 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 400-12, Rear 400-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 6m
Wire Harness: 6mm² National Standard
Spring Plate: 5pcs / 8kg
Wheelbase: 2090mm
Track: 960mm
Max Gradeability: ≥18°
Max Speed: 45km/h
Rated Load Capacity: 475kg
Max Load Capacity: 600kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: Dump, One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear

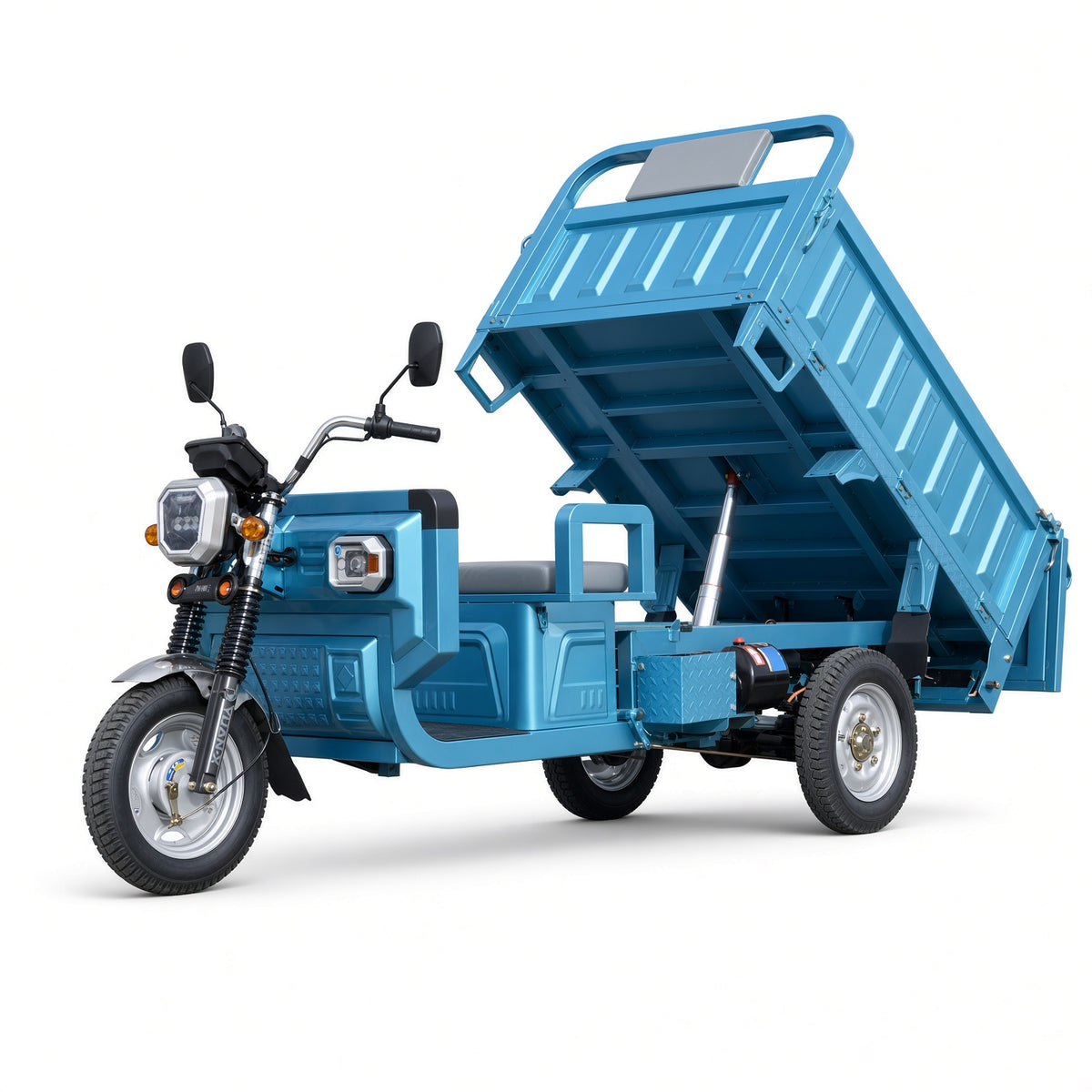

Dump System: Electric Hydraulic Dumping
Optional: Windshield, Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: SKD 42 Units / 40HQ, CKD 45 Units / 40HQ
Suitable For: Short-distance cargo transport, Dump work, Park logistics
