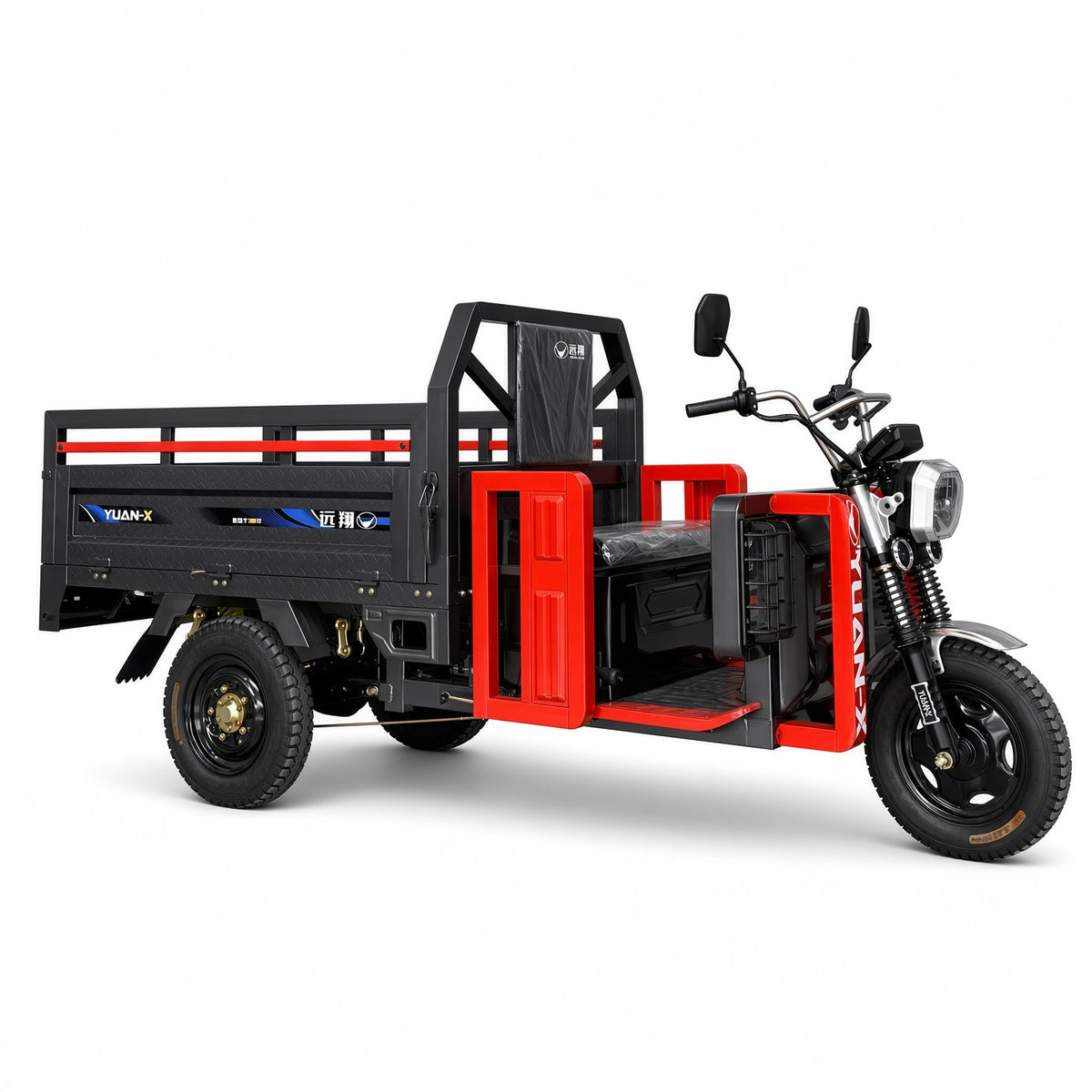

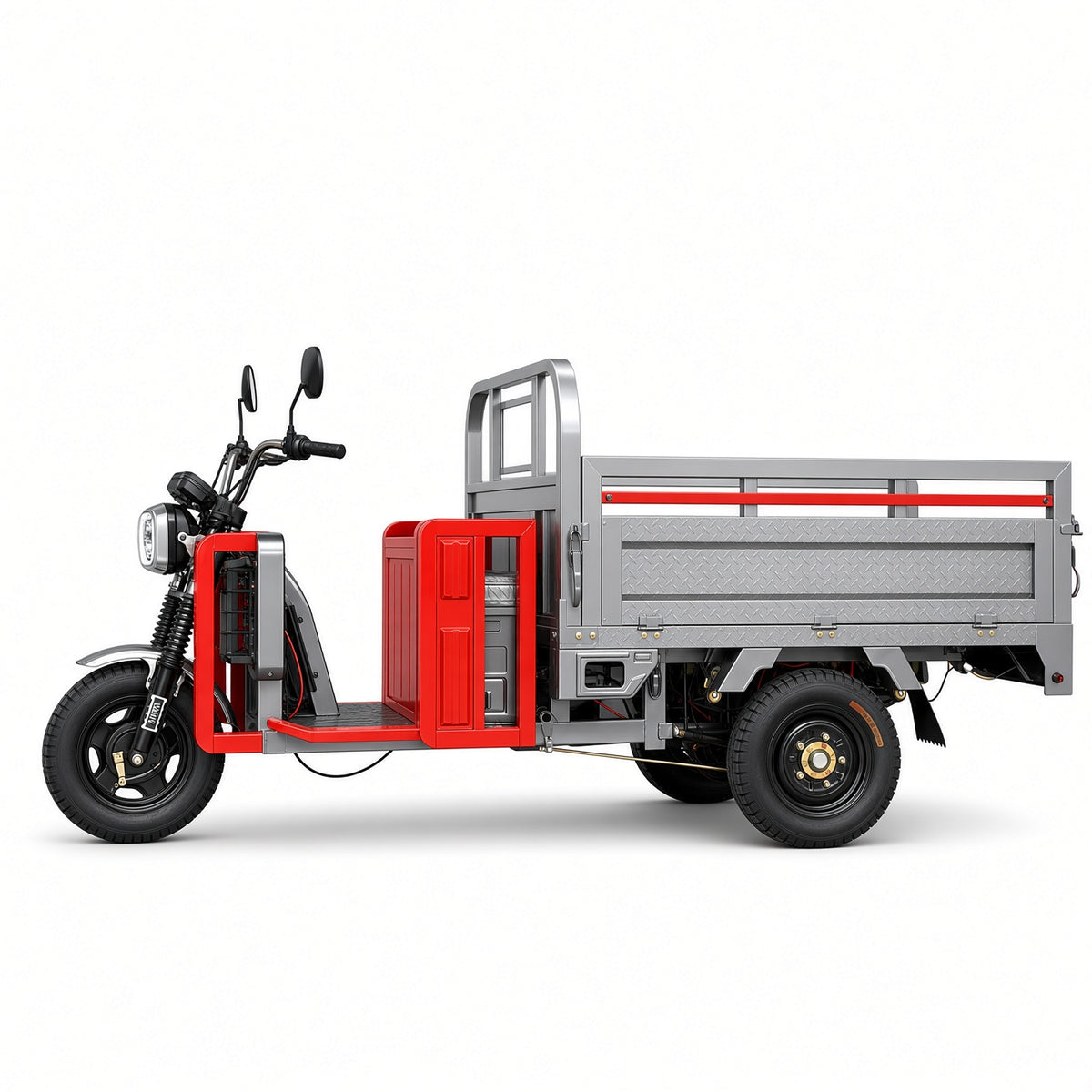

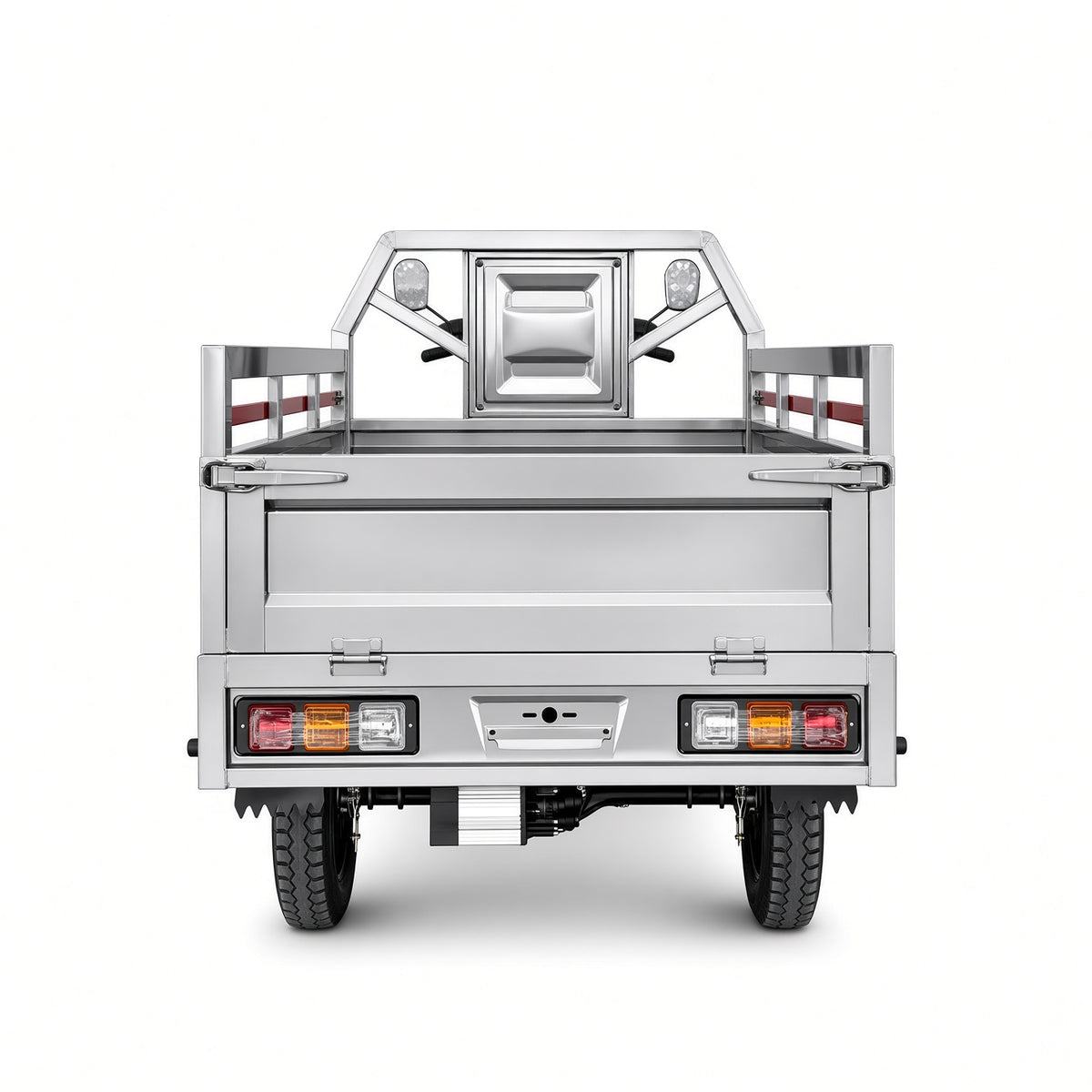

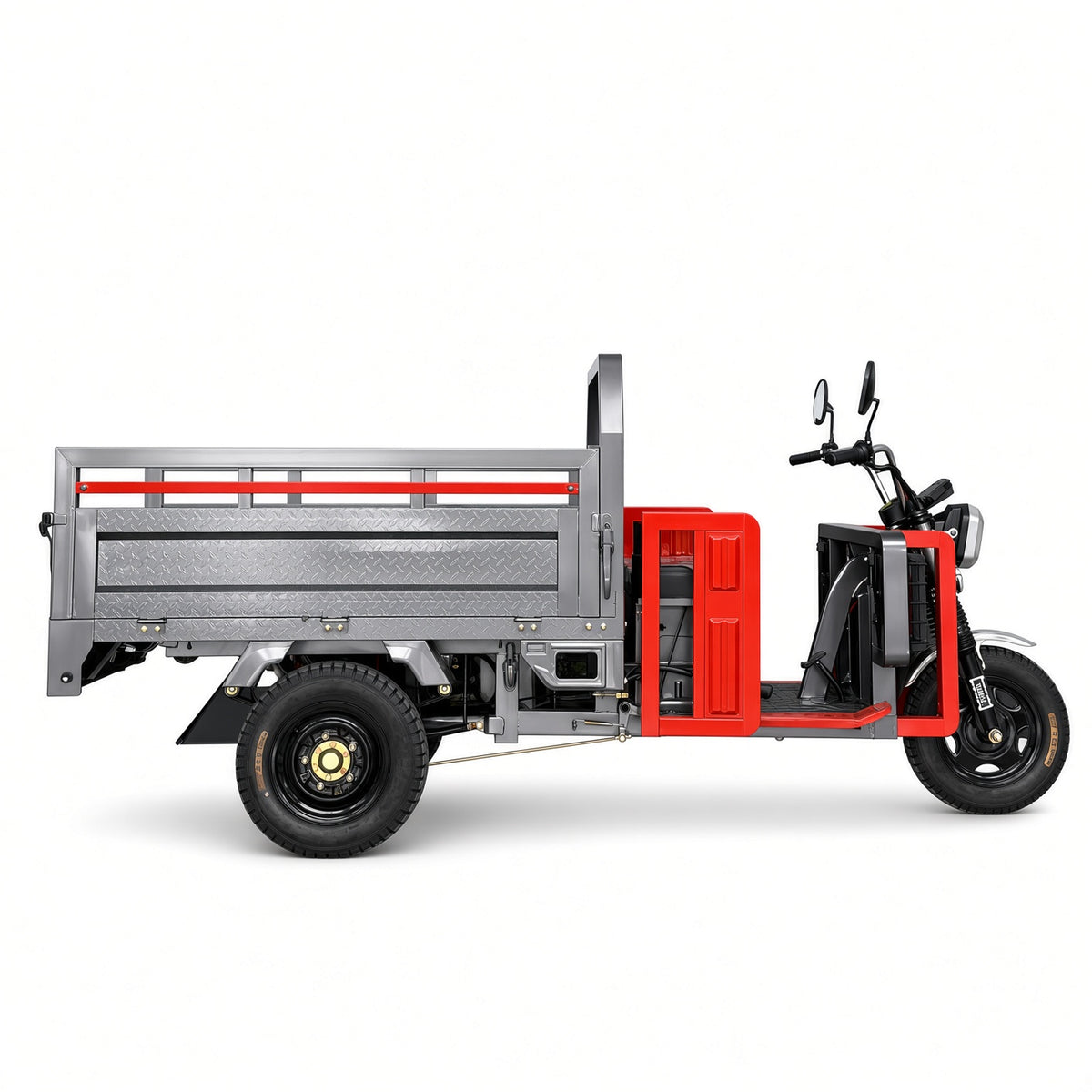

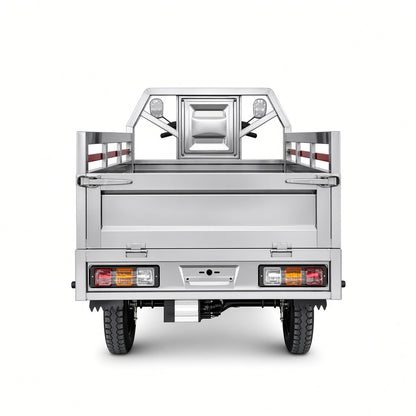

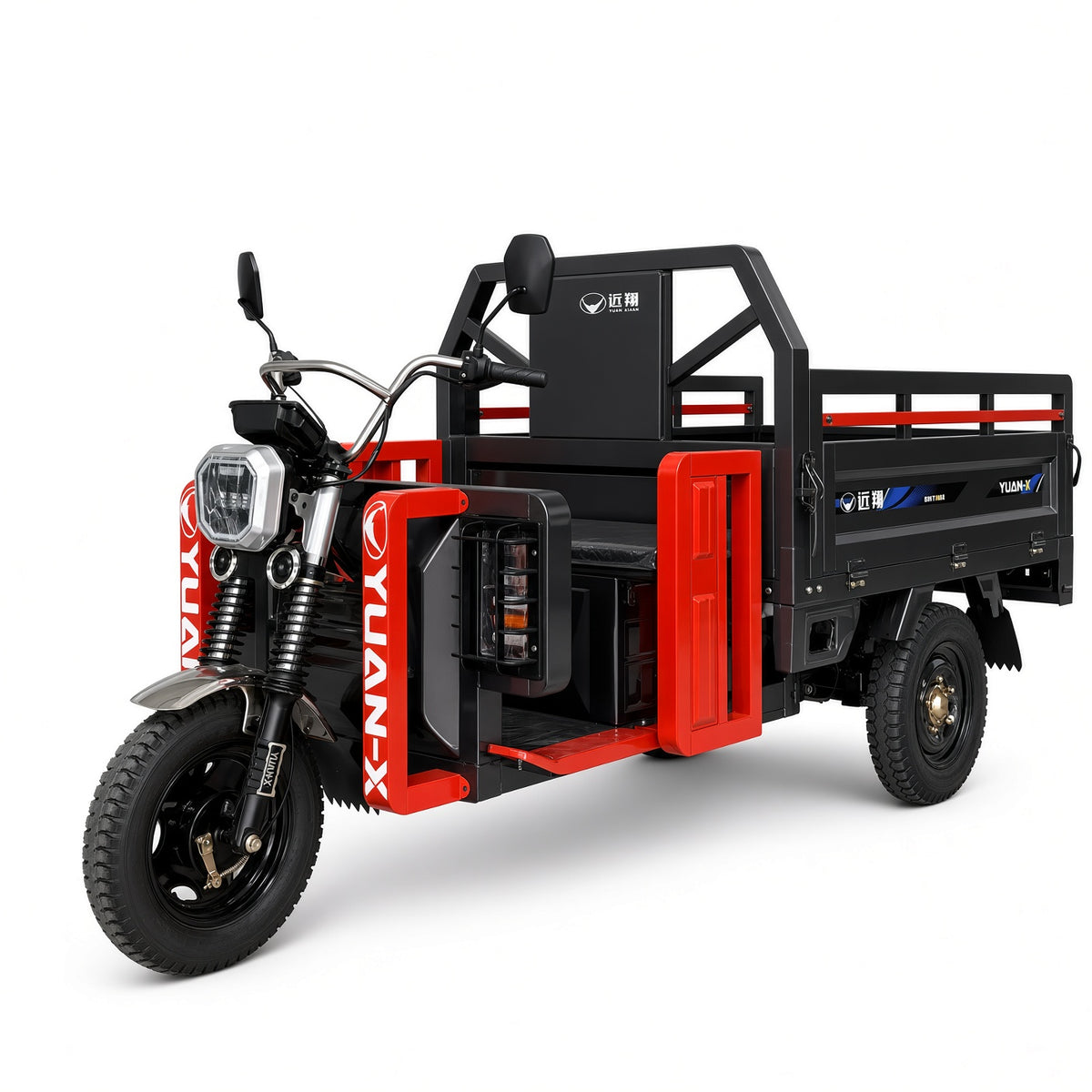

F4-160 Electric Cargo Tricycle 1.6m 1500W 60V/72V 600kg Rated Load 1000kg Max Load

Title: F4-160 Electric Cargo Tricycle 1.6m 1500W 60V/72V 600kg Rated Load 1000kg Max Load

Product Name: F4-160 Electric Cargo Tricycle

Product Description:
The F4-160 is a 1.6m national-standard electric cargo tricycle with overall dimensions of 3055×1160×1400mm and a cargo box of 1600×1100×480mm. Rated motor power is 1500W with a 60V/72V controller and a top speed of 42km/h. Rated load is 600kg and maximum load is 1000kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and city delivery.

Key Features:
• 1500W motor, 60V/72V controller, 42km/h top speed
• 1.6m cargo box, 600kg rated load, 1000kg maximum load
• Front and rear drum brakes plus hand parking, 4m braking distance
• One-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: F4-160
Product Type: 1.6m National-Standard Electric Cargo Tricycle
Overall Size: 3055×1160×1400mm
Cargo Size: 1600×1100×480mm
Cargo Material: Manganese steel door core, 450mm high, 1.0mm steel cargo floor
Curb Weight: 285.5kg (Without Battery)
Rated Motor Power: 1500W
Controller: 60V/72V
Rear Axle: Integrated Full-Floating Rear Axle, Φ180 Brake Drum
Front Fork: Φ43 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 400-12, Rear 450-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 4m
Wire Harness: 6mm² National Standard
Spring Plate: 5pcs × 8kg × 2 sets
Wheelbase: 960mm
Track: 1980mm
Max Gradeability: ≥18°
Max Speed: 42km/h
Rated Load Capacity: 600kg
Max Load Capacity: 1000kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Windshield, Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: SKD 42 Units / 40HQ, CKD 45 Units / 40HQ
Suitable For: Short-distance cargo transport, City delivery, Park logistics
