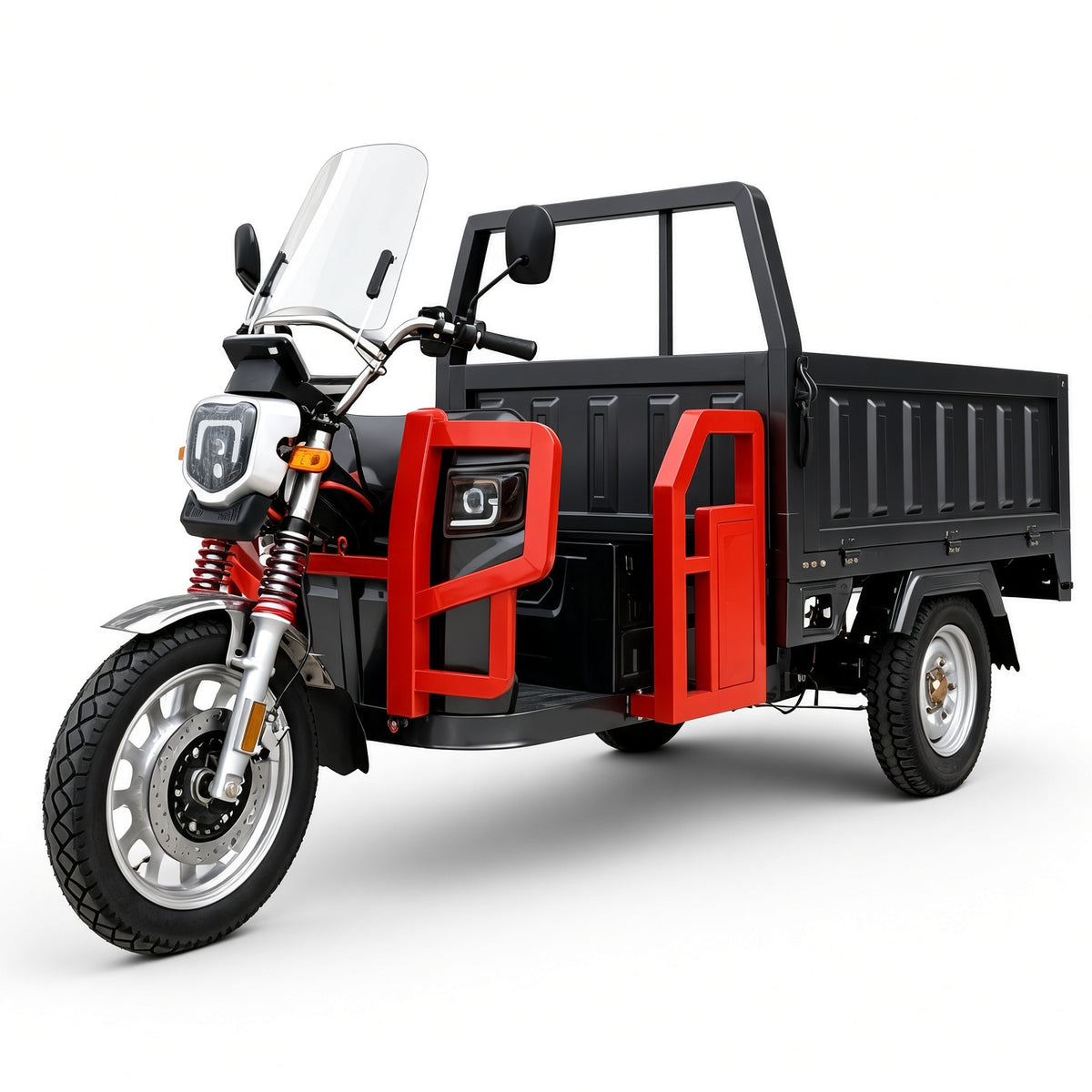

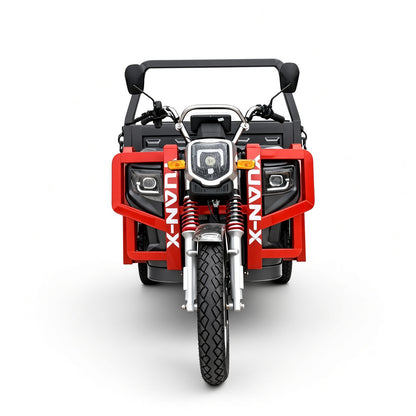

F3-160 Electric Cargo Tricycle 1.6m Zhanhu 1200W 60V/72V 500kg Rated Load 1000kg Max Load

Title: F3-160 Electric Cargo Tricycle 1.6m Zhanhu 1200W 60V/72V 500kg Rated Load 1000kg Max Load

Product Name: F3-160 Electric Cargo Tricycle

Product Description:
The F3-160 is a 1.6m Zhanhu electric cargo tricycle with overall dimensions of 3150×1160×1495mm and a cargo box of 1600×1160×450mm. Rated motor power is 1200W with a 60V/72V controller and a top speed of 42km/h. Rated load is 500kg and maximum load is 1000kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and city delivery.

Key Features:
• 1200W motor, 60V/72V controller, 42km/h top speed
• 1.6m cargo box, 500kg rated load, 1000kg maximum load
• Front disc and rear drum brakes plus hand parking, 4m braking distance
• One-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: F3-160
Product Type: 1.6m Zhanhu Electric Cargo Tricycle
Overall Size: 3150×1160×1495mm
Cargo Size: 1600×1160×450mm
Cargo Material: Manganese steel door core, 450mm high, 1.0mm steel cargo floor
Curb Weight: 245.5kg (Without Battery)
Rated Motor Power: 1200W
Controller: 60V/72V
Rear Axle: Integrated Full-Floating Rear Axle, Φ160 Brake Drum
Front Fork: Φ37 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 110-90, Rear 450-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front Disc / Rear Drum, Hand Parking
Brake Distance: 4m
Wire Harness: 6mm² National Standard
Spring Plate: 5pcs × 8kg × 2 sets
Wheelbase: 960mm
Track: 1980mm
Max Gradeability: ≥18°
Max Speed: 42km/h
Rated Load Capacity: 500kg
Max Load Capacity: 1000kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Windshield, Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: SKD 43 Units / 40HQ, CKD 56 Units / 40HQ
Suitable For: Short-distance cargo transport, City delivery, Park logistics
