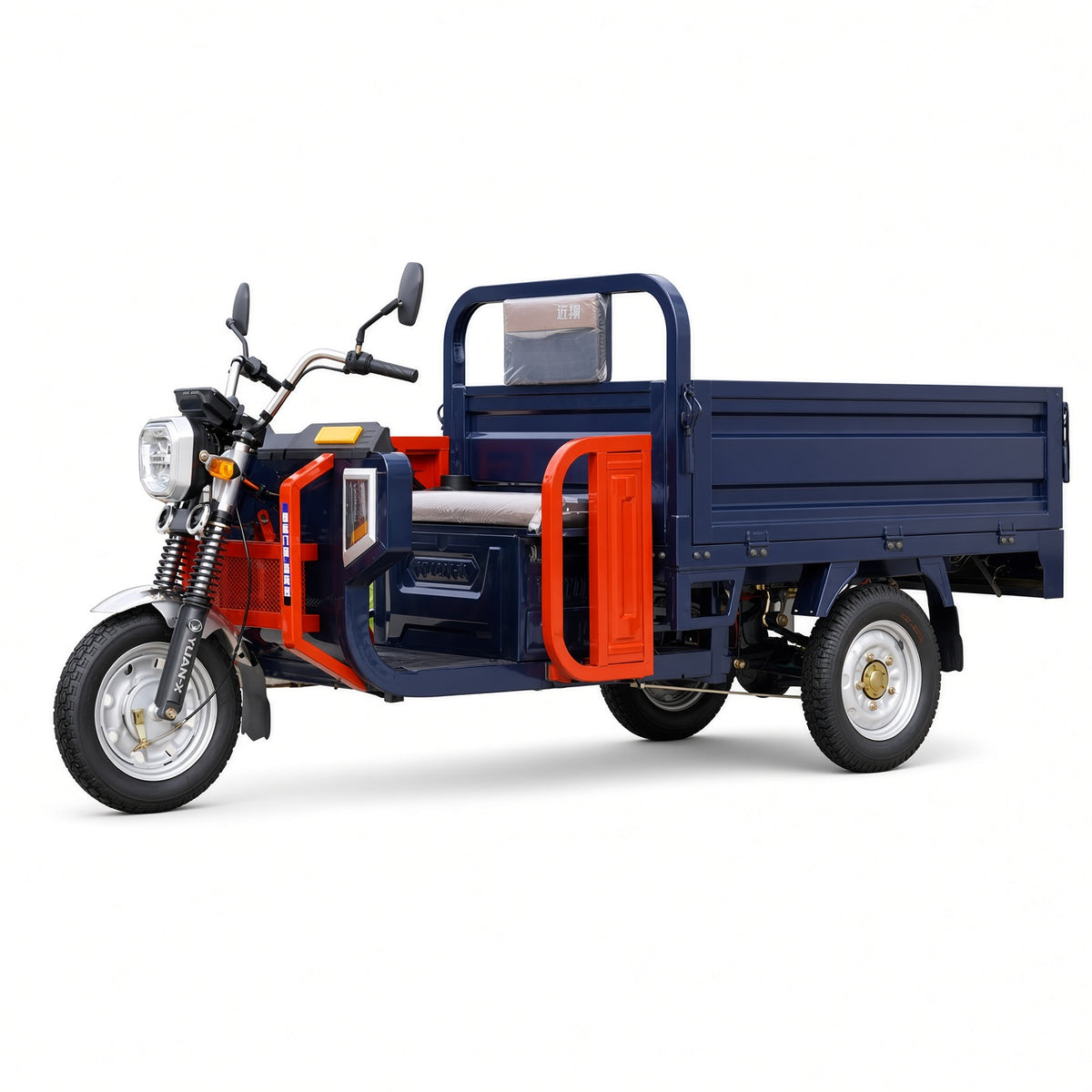

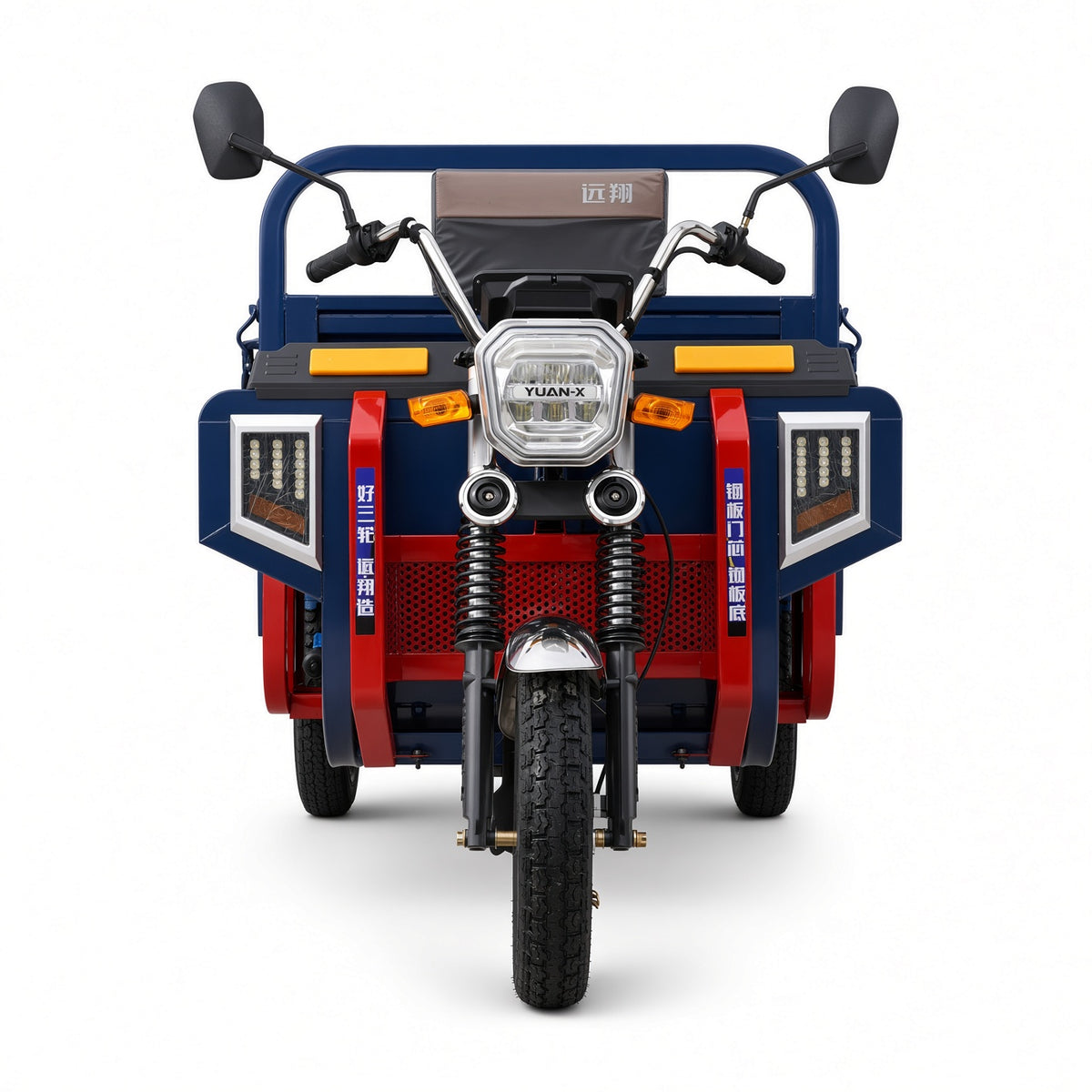

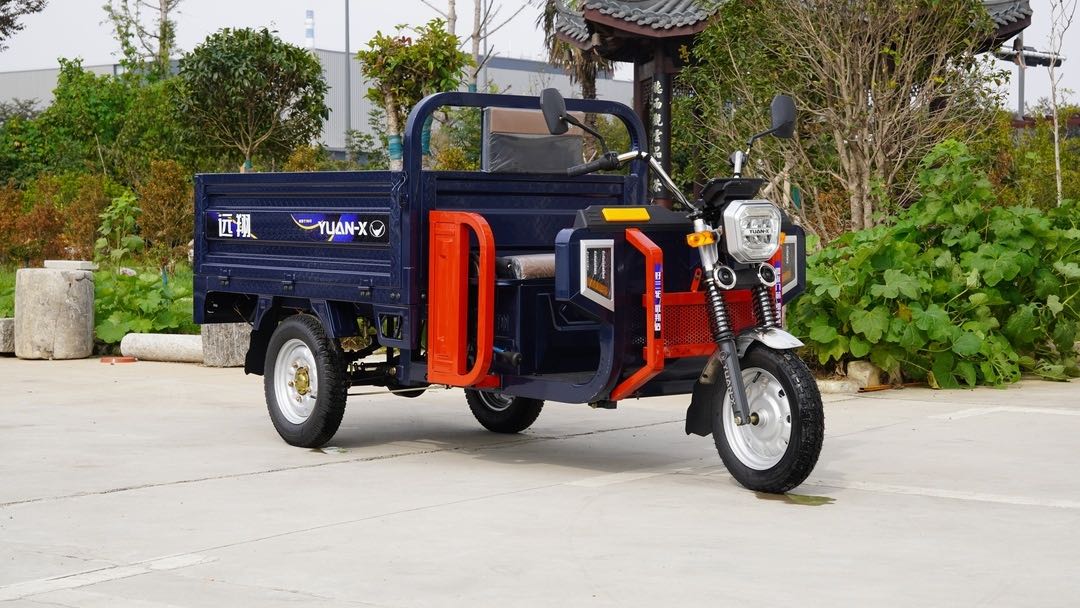

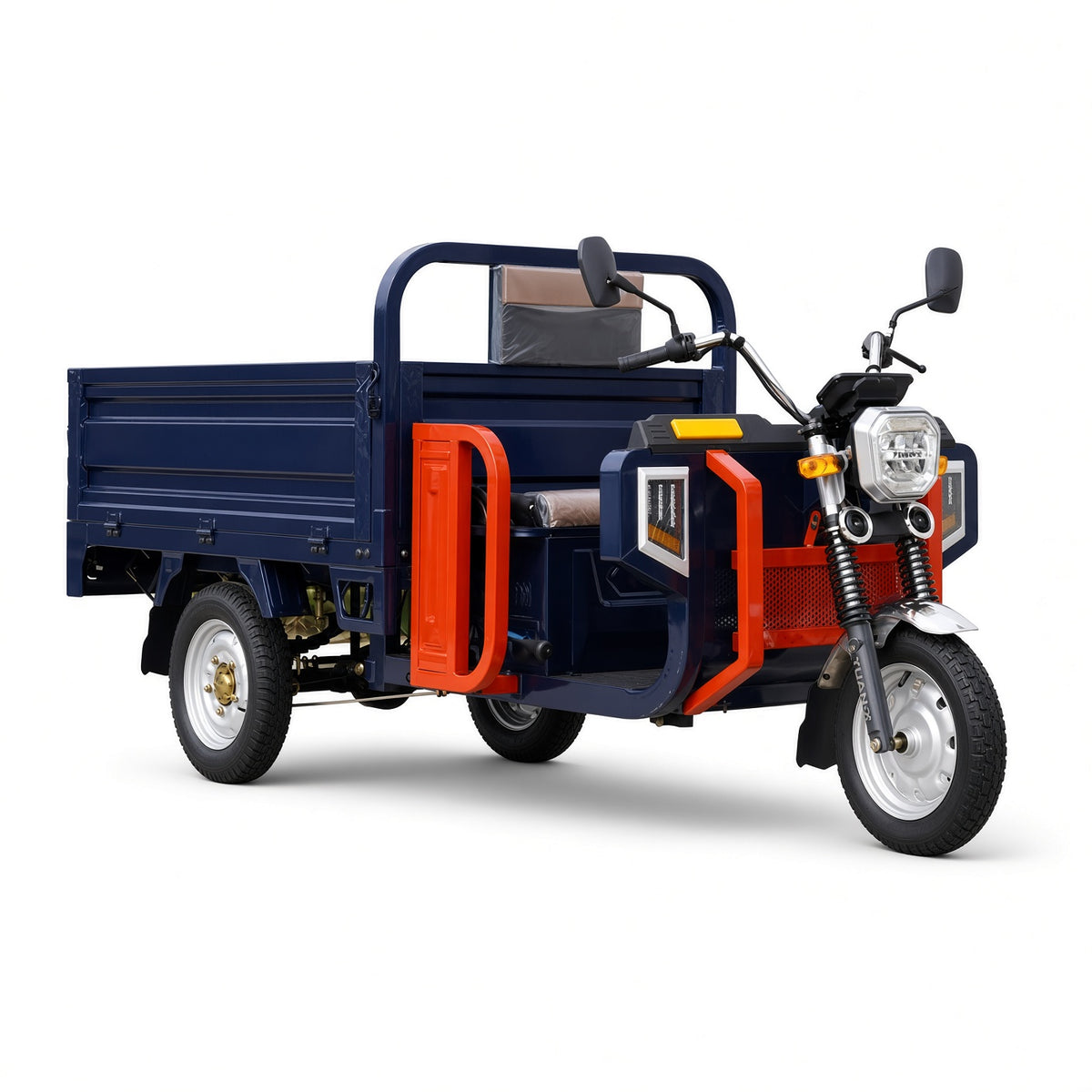

F13-180Z Dual-Beam Benba W Dump Electric Tricycle 1.8m 1800W Flat-Wire Motor 60V/72V 800kg Rated Load

Title: F13-180Z Dual-Beam Benba W Dump Electric Tricycle 1.8m 1800W Flat-Wire Motor 60V/72V 800kg Rated Load

Product Name: F13-180Z Dual-Beam Benba W Dump Electric Tricycle

Product Description:
The F13-180Z is a 1.8m Benba W dump dual-beam electric tricycle with overall dimensions of 3250×1390×1400mm and a cargo box of 1800×1310×450mm. It uses a 122-60 flat-wire motor (1800W) with a 60V/72V controller and a top speed of 45km/h. Rated load is 800kg and maximum load is 1000kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and dump work.

Key Features:
• 1800W flat-wire motor, 60V/72V controller, 45km/h top speed
• 1.8m dump cargo box, 800kg rated load, 1000kg maximum load
• Front and rear drum brakes plus hand parking, 6m braking distance
• One-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: F13-180Z
Product Type: 1.8m Benba W Dump Dual-Beam Electric Tricycle
Overall Size: 3250×1390×1400mm
Cargo Size: 1800×1310×450mm
Cargo Material: Steel door core and steel floor, door core height 450mm
Curb Weight: 353kg (Without Battery)
Rated Motor Power: 122-60 Flat-Wire Motor (1800W)
Controller: 60V/72V
Rear Axle: Integrated Full-Floating Rear Axle, Φ180 Brake Drum
Front Fork: Φ43 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 400-12, Rear 450-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 6m
Wire Harness: 6mm² National Standard
Spring Plate: 5pcs × 4
Wheelbase: 2160mm
Track: 1150mm
Max Gradeability: ≥18°
Max Speed: 45km/h
Rated Load Capacity: 800kg
Max Load Capacity: 1000kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Windshield, Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: SKD 32 Units / 40HQ, CKD 42 Units / 40HQ
Suitable For: Short-distance cargo transport, Dump work, Park logistics
