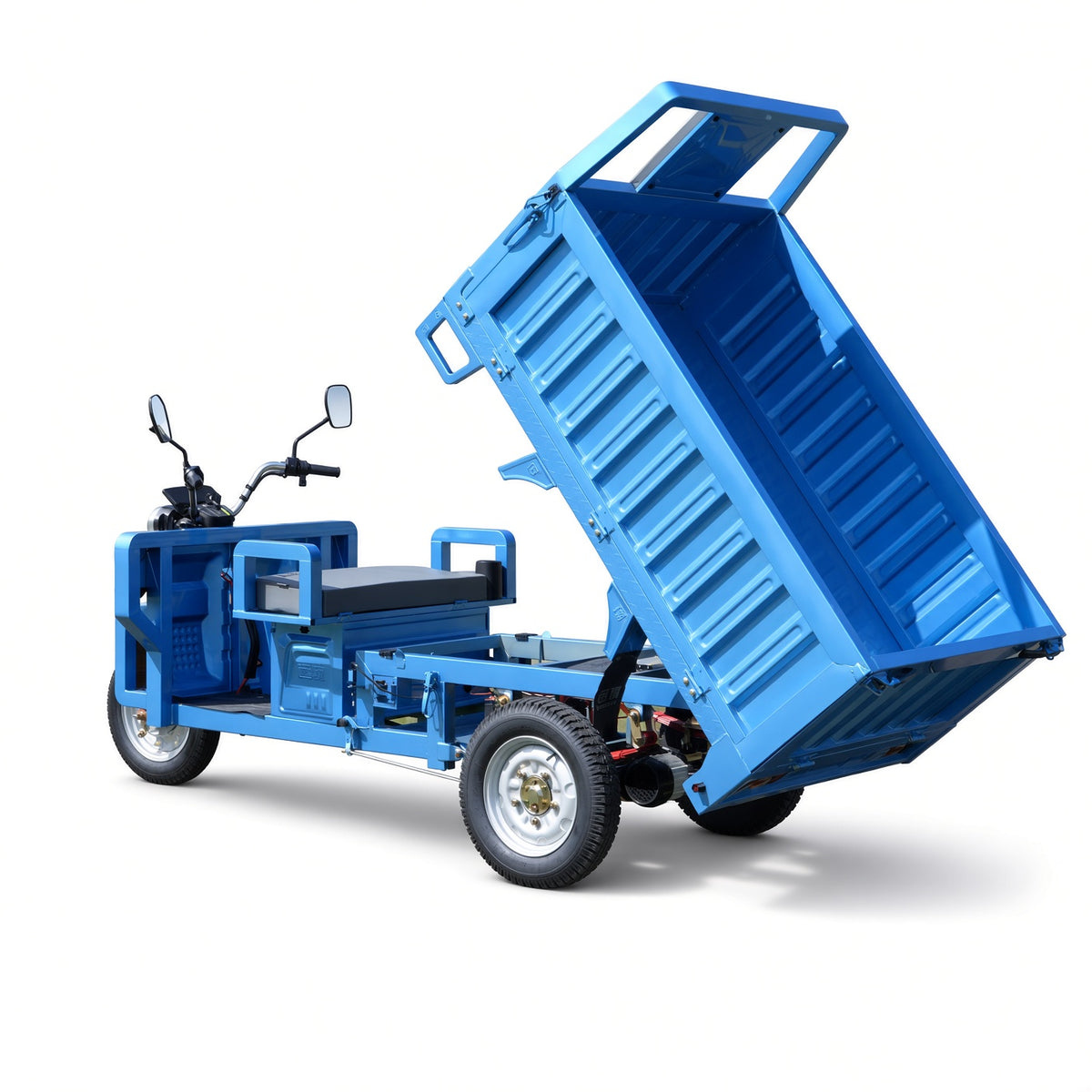

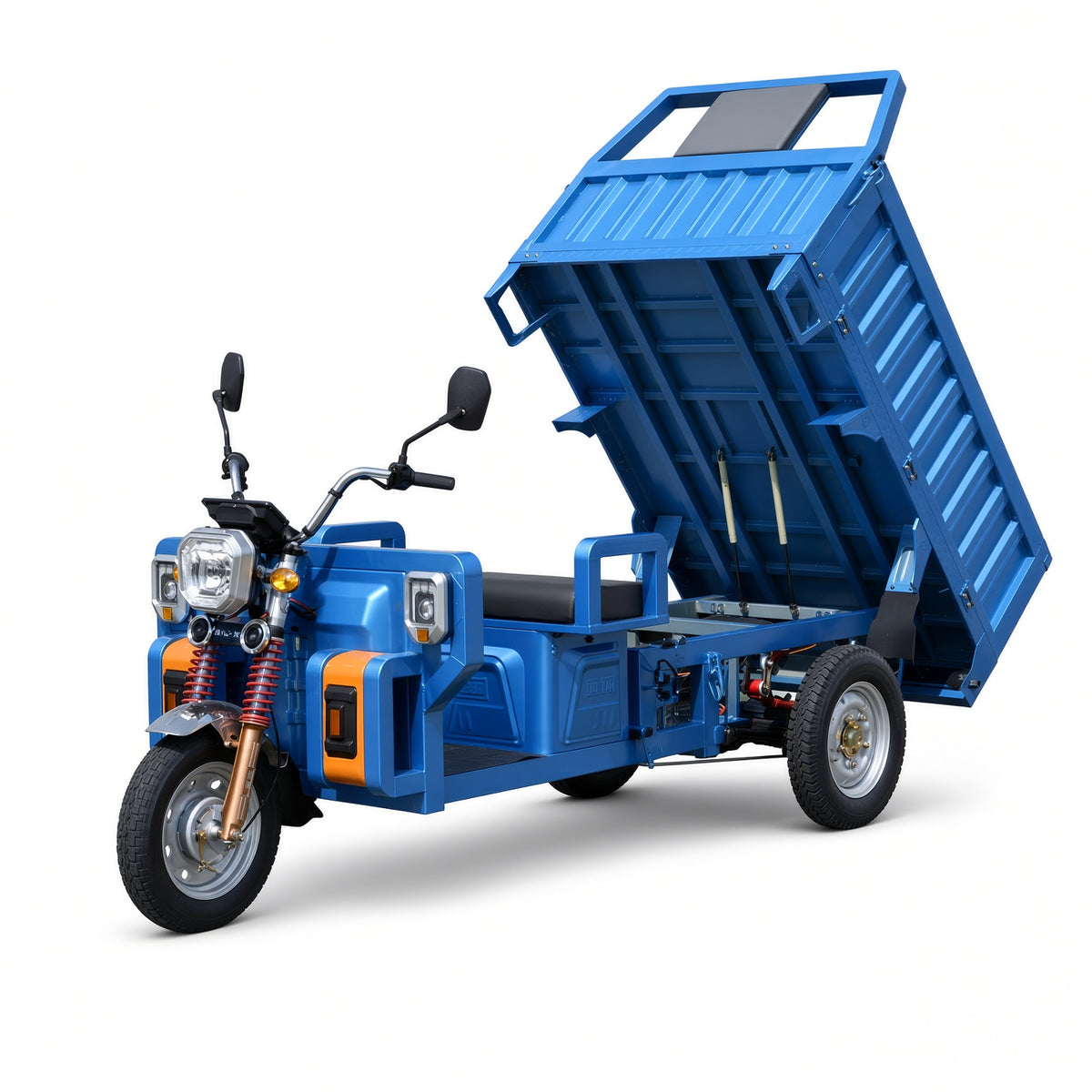

Title: F10-160 Zhanjiang Electric Cargo Tricycle 1.6m 1200W PMSM Motor 60V/72V 475kg Rated Load

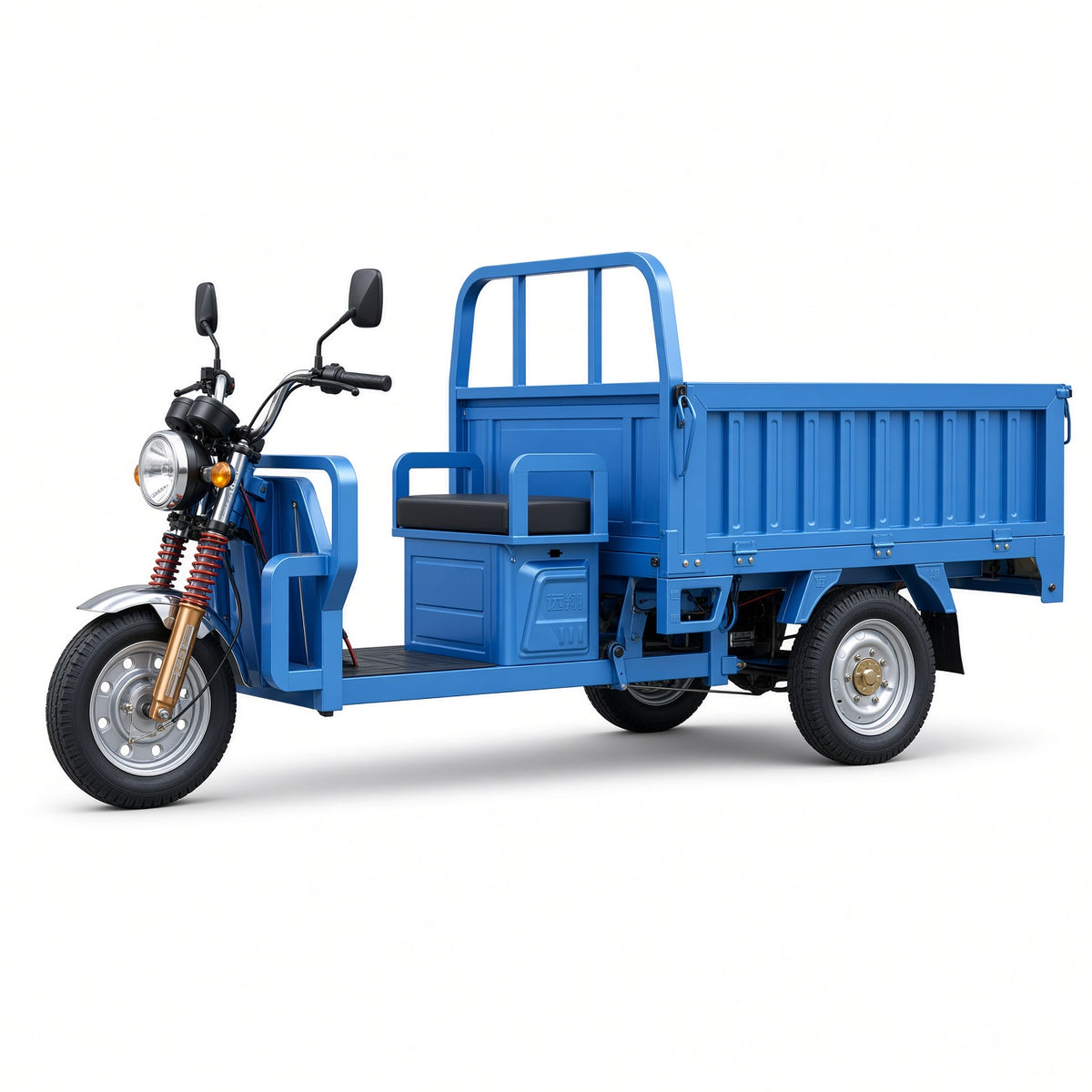

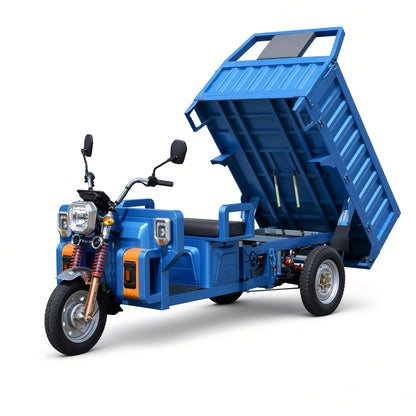

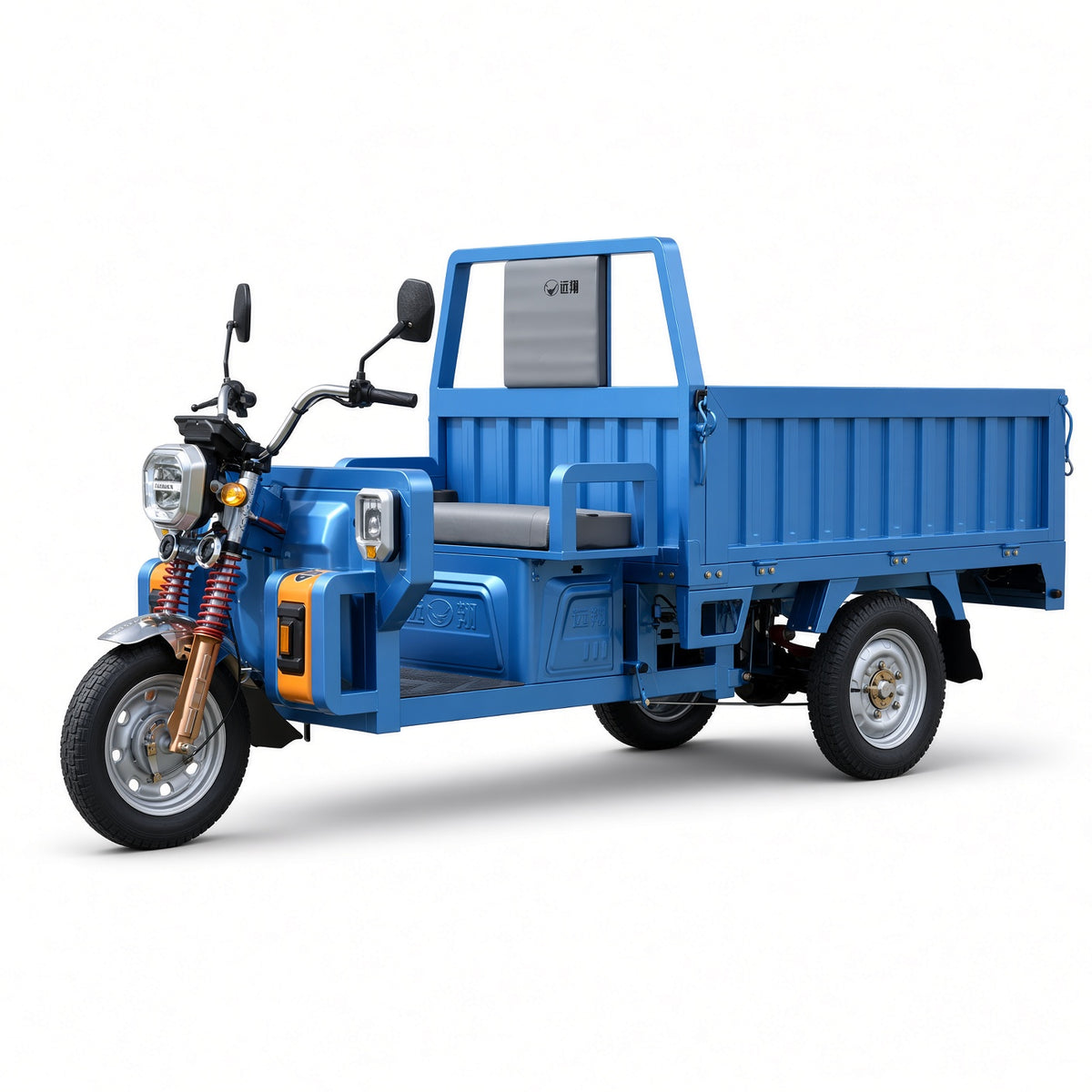

Product Name: F10-160 Zhanjiang Electric Cargo Tricycle
Product Description:
The F10-160 is a 1.6m Zhanjiang electric cargo tricycle with overall dimensions of 3120×1180×1360mm and a cargo box of 1600×1160×420mm. It uses a 1200W PMSM motor with a 60V/72V 24-tube controller and a top speed of 45km/h. Rated load is 475kg and maximum load is 600kg. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and city delivery.
Key Features:
• 1200W PMSM motor, 60V/72V 24-tube controller, 45km/h top speed
• 1.6m cargo box, 475kg rated load, 600kg maximum load
• Front and rear drum brakes plus hand parking, 6m braking distance
• One-line control, hill hold, HDC, 3-speed high/low shift
Product Specifications:
Model: F10-160
Product Type: 1.6m Zhanjiang Electric Cargo Tricycle
Overall Size: 3120×1180×1360mm
Cargo Size: 1600×1160×420mm
Cargo Material: Manganese steel door core and steel floor, door core height 420mm
Curb Weight: 232kg (Without Battery)
Rated Motor Power: 1200W PMSM
Controller: 60V/72V, 24-tube
Rear Axle: Integrated Full-Floating Rear Axle, Φ160 Brake Drum
Front Fork: Φ37 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 400-12, Rear 400-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 6m
Wire Harness: 6mm² National Standard
Spring Plate: 5pcs / 8kg
Wheelbase: 2400mm
Track: 960mm
Max Gradeability: ≥18°
Max Speed: 45km/h
Rated Load Capacity: 475kg
Max Load Capacity: 600kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Optional: Windshield, Music Box, Remote Control Key, Anti-Theft Beep, Range Extender, Phone Holder
Loading Qty: SKD 42 Units / 40HQ, CKD 45 Units / 40HQ
Suitable For: Short-distance cargo transport, City delivery, Park logistics
