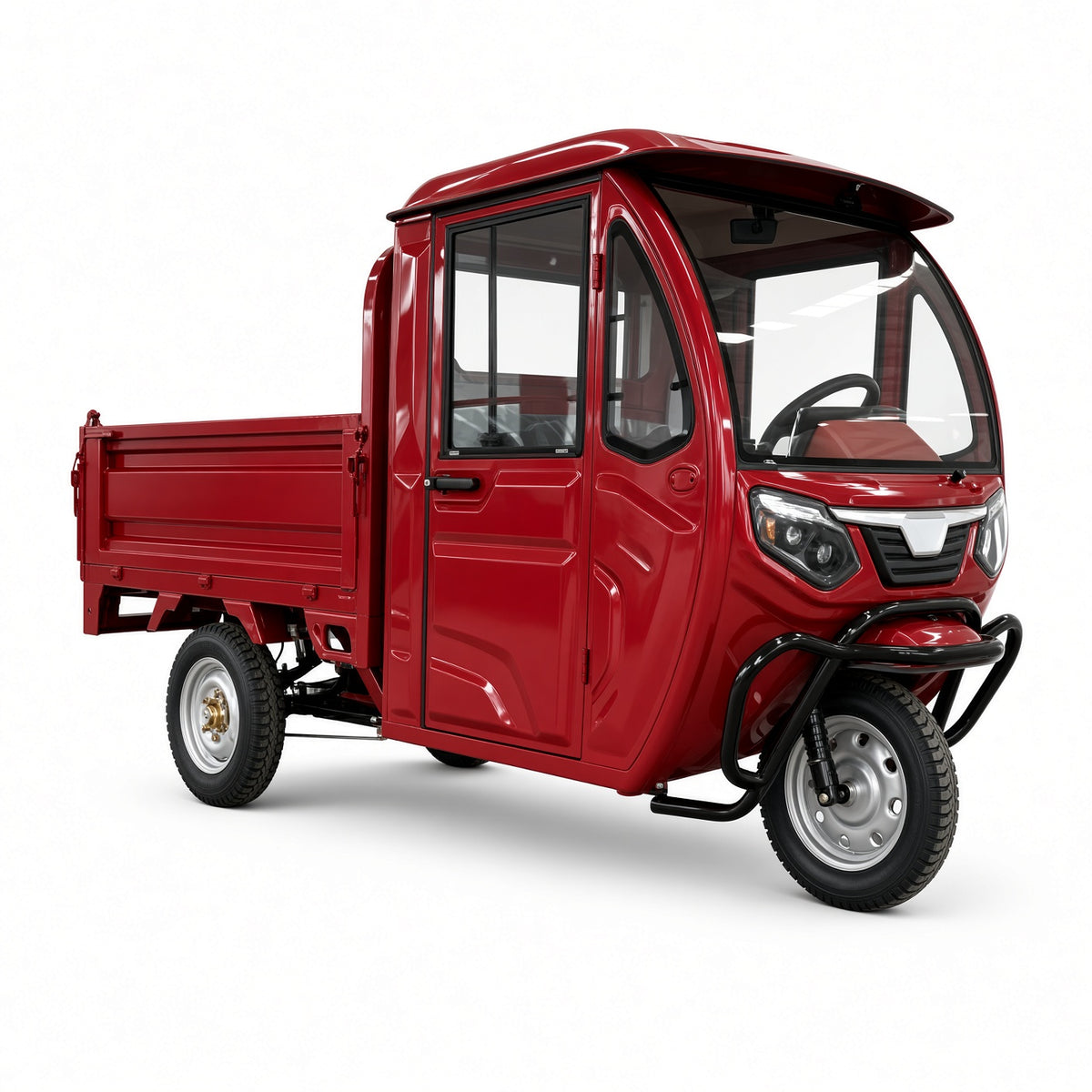

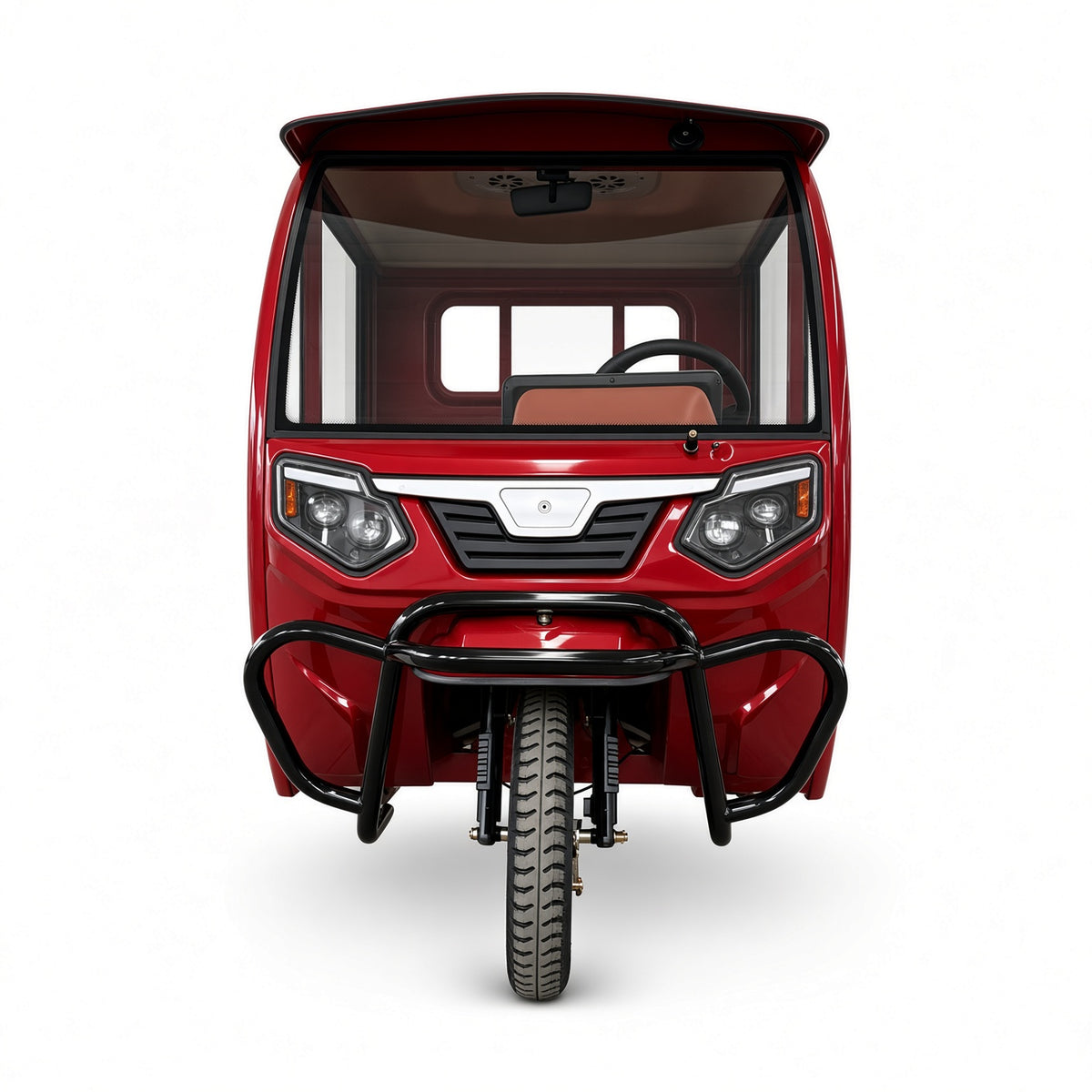

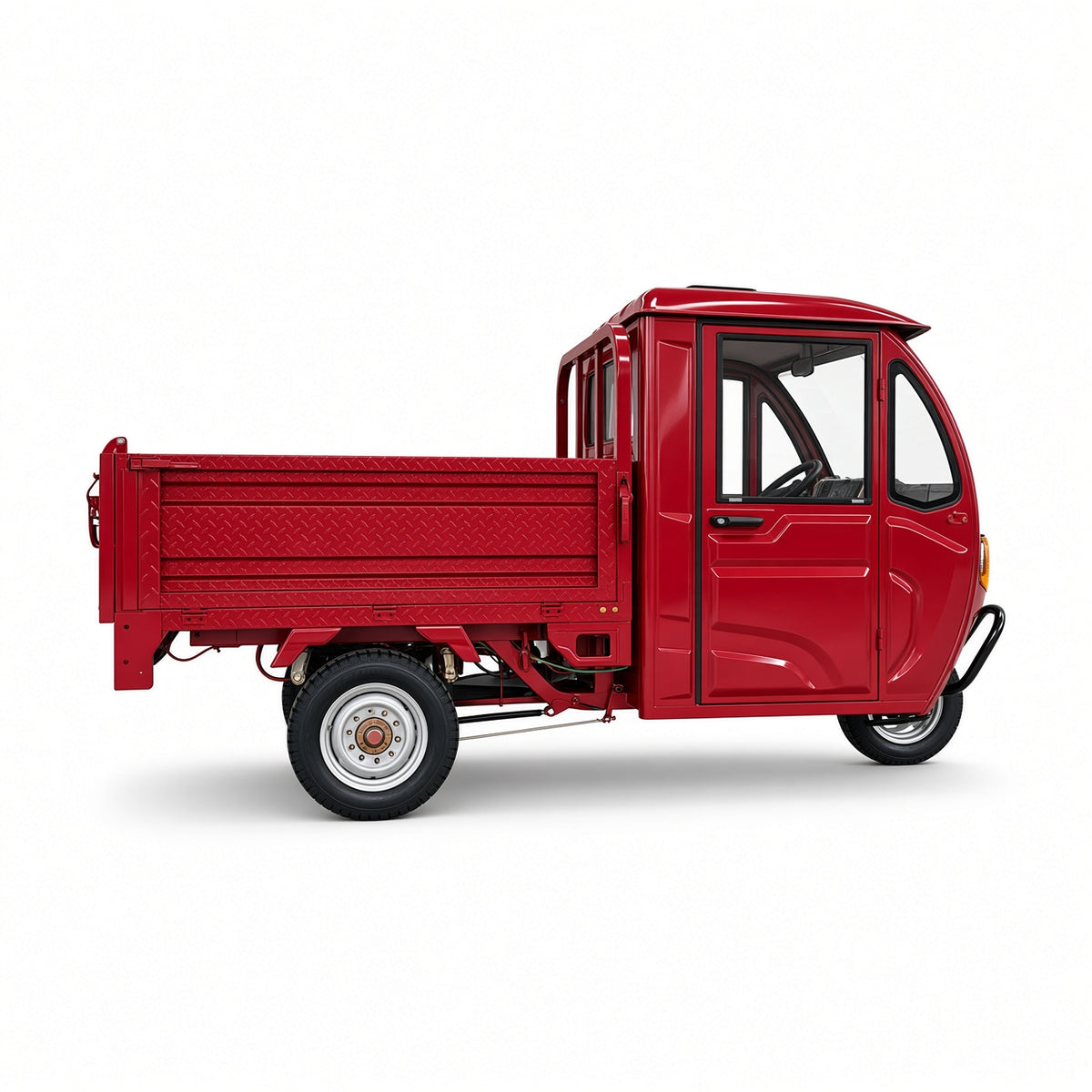

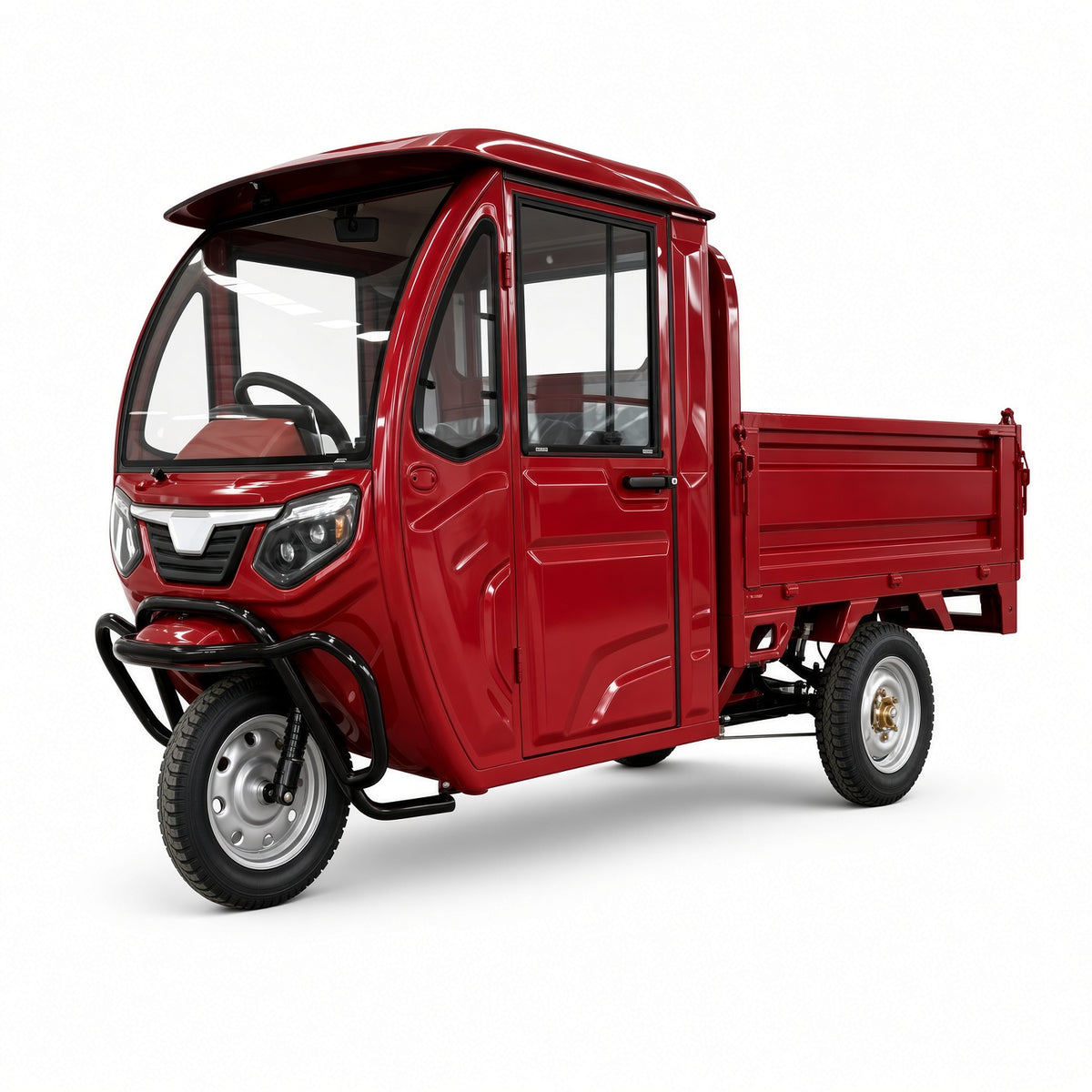

B2-160 Qihang Cabin Electric Cargo Tricycle 1.6m 1200W 60V/72V 500kg Rated Load

Title: B2-160 Qihang Cabin Electric Cargo Tricycle 1.6m 1200W 60V/72V 500kg Rated Load

Product Name: B2-160 Qihang Electric Cargo Tricycle

Product Description:
The B2-160 is a 1.6m Qihang enclosed-cabin electric cargo tricycle with overall dimensions of 3080×1180×1740mm and a cargo box of 1600×1160×420mm. Motor power is 1200W 60H with a 60V/72V controller and a top speed of 42km/h. Rated load is 500kg and maximum load is 800kg. Standard features include a steering wheel, heater, manual-crank windows, and an integrated sunroof with fan. Lithium or lead-acid batteries are optional. Suitable for short-distance cargo transport and city delivery.

Key Features:
• 1200W motor, 60V/72V controller, 42km/h top speed
• 1.6m cargo box, 500kg rated load, 800kg maximum load
• Enclosed cabin with steering wheel, heater, and sunroof fan
• One-line control, hill hold, HDC, 3-speed high/low shift

Product Specifications:
Model: B2-160
Product Type: 1.6m Qihang Enclosed-Cabin Electric Cargo Tricycle
Overall Size: 3080×1180×1740mm
Side Beam: 50×70×1.7mm
Cargo Size: 1600×1160×420mm
Cargo Material: Flat steel door core, 420mm high, 1.0mm steel cargo floor
Curb Weight: 313kg (Without Battery)
Rated Motor Power: 1200W 60H
Controller: 60V/72V
Rear Axle: Integrated Full-Floating Rear Axle, Φ160 Brake Drum
Front Fork: Φ37 Integrally Cast Outer Spring Hydraulic Shock Absorber
Tires: Front 375-12, Rear 400-12, 8P Steel-Belted Wire Tires
Rims: Heavy-Duty Steel Wheels
Brake Mode: Front/Rear Drum, Hand Parking
Brake Distance: 4m
Wire Harness: 6mm² National Standard
Spring Plate: 6pcs × 10kg × 2 sets
Wheelbase: 960mm
Track: 1980mm
Max Gradeability: ≥18°
Max Speed: 42km/h
Rated Load Capacity: 500kg
Max Load Capacity: 800kg
Battery: Lithium / Lead-acid Optional
Meter: LCD Digital Display
Lights: LED Headlight and Taillights, Waterproof Plug
Rearview Mirror: Adjustable Wide-Angle Mirrors
Speaker: Chinese / English / Russian / Reversing Beep (Customizable)
Functions: One-Line Control, Hill Hold, HDC, 3 Speed Modes, High/Low Speed Shift, P Gear
Hardware Config: Steering Wheel, Wide Body, Manual-Crank Windows, Roof Lamp, Heater, Interior Lamp, Interior Rear-view Mirror, Integrated Sunroof with Fan
Loading Qty: CKD 34 Units / 40HQ; 17.5m Flatbed Truck CKD 90 Units
Suitable For: Short-distance cargo transport, City delivery, Park logistics
